Summary0001582: [Smart3][ATV12] side effect of HWC_ENABLE_REAL_MODE
DescriptionHi YK,

There is a CtsVerifier item "Mode Switching Test "

During the test, there is a 'START TEST' button and Test information at the top of screen.

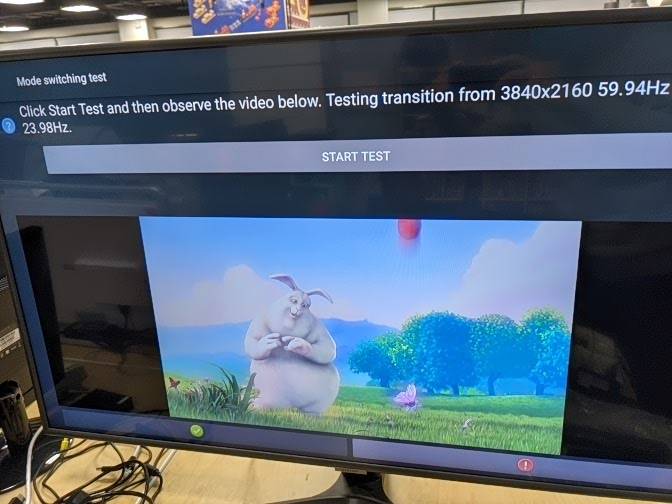

You can refer to ModeSwitchingTest-Pass.jpg

But I use the current code, I can NOT see the 'START TEST' button and Test information, so we can NOT test it.

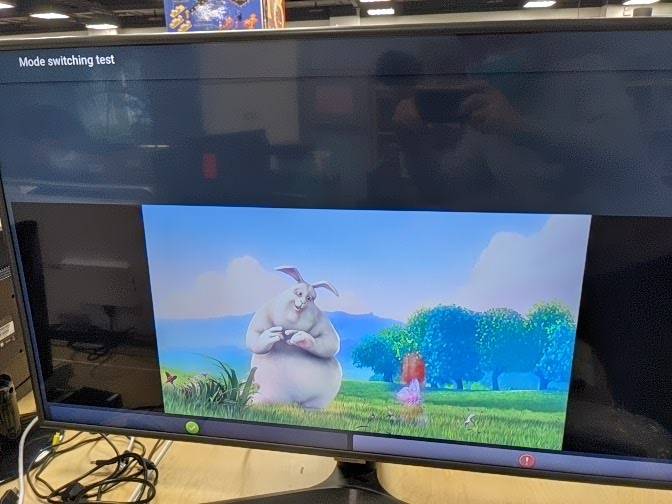

You can refer to ModeSwitchingTest-Fail.jpg

We found that it's side effect from Amlogic Korean FAE. (This patch is from Amlogic Korean FAE)

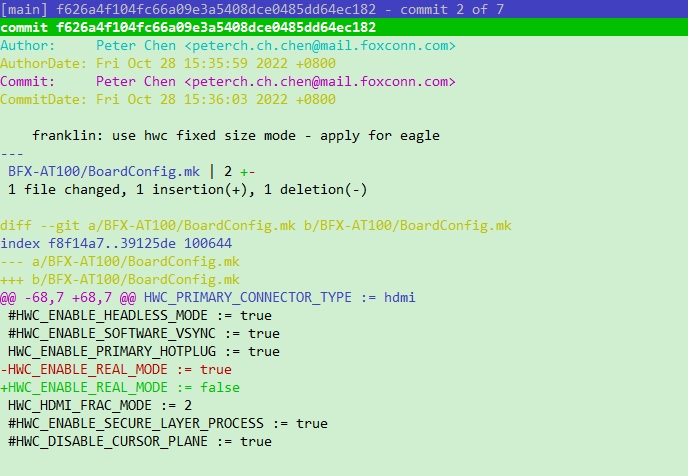

Please refer to patch.jpg (device/amlogic/frinklin/BFX-AT100/BroadConfig.mk)

I've checked it with Peter, If we don't apply this patch, the set Screen Resolution API will be fail.

Please help us confirm this modification with Amlogic Korean FAE.

Thanks,
Jason
TagsNo tags attached.
Attach Tags

Activities

(SW) Jason Ling

2022-12-21 18:48

developer


(ALTech) Younkwang Jung

2022-12-22 08:21

developer   ~0011544

Hi Jason

I reported it to Amlogic FAE
https://jira.skbroadband.com/browse/AMANDROIDS-36

Thank you
YK.Jung

(SW) Jason Ling

2023-01-06 09:28

developer   ~0011682

Hi YK,

Any update of this patch?

We have a lot of failures in TVTS module "TvtsHdmiHostTestCases".
This module will test multiple TV EDID/Resolution.
After reverting this patch, we can pass it.

Thanks,
Jason

(ALTech) Younkwang Jung

2023-01-17 13:40

developer   ~0011810

Hi Jason

Please check if this test item can be waived.
I got a request from SKB to proceed with waiver.

Thanks
YK.Jung

(SW) Jason Ling

2023-01-17 15:20

developer   ~0011816

Hi YK,

If SKB want to request waiver, please asked Amlogic to request it.

Because we don't familiar with the discussion history between Google and Amlogic.
If Google ask some question to us, we can not answer it. (Normally Google will ask some questions to issue reporter to ask reporter to prove this failure can be waived)

I think Amlogic can help all OEMs to request waiver and apply all SKB - Amlogic soc model.

Thanks,
Jason

(ALTech) JunGyu Kim

2023-01-30 16:56

developer   ~0011885

Hi Jason,

For REAL MODE setting, Amlogic korea shared a guide.
Please setting REAL MODE by use this guide and please try again this fail case.
(https://jira.skbroadband.com/browse/AMANDROIDS-36)

=================================================================================
1. Opening BoardConfig.mk .
HWC_ENABLE_REAL_MODE := true
HWC_HDMI_FRAC_MODE := 2

2. ott project hotplug open, and sw vsync cannot be configured
#HWC_ENABLE_SOFTWARE_VSYNC := true
HWC_ENABLE_PRIMARY_HOTPLUG := true

3. Framebuffer size should be set to 720P.
may refer to S planck:
planck.mk

{{PRODUCT_PROPERTY_OVERRIDES += }}
    ro.surface_flinger.max_graphics_width=1280 {{}}
    ro.surface_flinger.max_graphics_height=720

4. Same-like wmsize also has the biggest limitation, can being configured in config.xml of vendor overlay, 720P:
Please refer to S trunk：config.xml
<integer name="config_maxUiWidth">1280</integer>

5.ion-fb requires 6 blocks of FBs to be configured
configuration of ion-fb in 6 blocks (1080p)
c7be0634.diff.zip

        ion_fb_reserved:linux,ion-fb {
            compatible = "shared-dma-pool";
            reusable;
            /* 1920x1080x4x6 round up 4M align */
            size = <0x0 0x3400000>;
            alignment = <0x0 0x400000>;


<720P>
        ion_fb_reserved:linux,ion-fb {
            compatible = "shared-dma-pool";
            reusable;
            /* 1280x720x4x6 round up 4M align */
            size = <0x0 0x1800000>;
            alignment = <0x0 0x400000>;
        };

6. Support 16:9mode
may refer to S trunk
6cb1d023.diff.zip: hwc eanble HWC FILTER 16:9 MODE config
HWC_FILTER_16_9MODE := true


7. Config_defaultRefreshRate
Remote control 120hz, available overlays
<integer name="config_defaultRefreshRate">120</integer>

=================================================================================

Thank you.
Kim
c7be0634.diff.zip (16,779 bytes)
config.xml (1,784 bytes)
<?xml version="1.0" encoding="utf-8"?>
<!-- Copyright (C) 2021 The Android Open Source Project

     Licensed under the Apache License, Version 2.0 (the "License");
     you may not use this file except in compliance with the License.
     You may obtain a copy of the License at

         http://www.apache.org/licenses/LICENSE-2.0

     Unless required by applicable law or agreed to in writing, software
     distributed under the License is distributed on an "AS IS" BASIS,
     WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
     See the License for the specific language governing permissions and
     limitations under the License.
-->

<resources>
    <!-- Make the IME killable by the lowmemorykiller by raising its oom_score_adj. -->
    <bool name="config_killableInputMethods">true</bool>
   <!-- UI wm size limit 720p. -->
    <integer name="config_maxUiWidth">1280</integer>

    <string-array translatable="false" name="config_defaultPinnerServiceFiles">
      <item>"/system/lib/libandroid_servers.so"</item>
      <item>"/system/bin/logd"</item>
      <item>"/system/lib/libjavacrypto.so"</item>
      <item>"/system/lib/libhidltransport.so"</item>

      <item>"/system/framework/arm/boot-ext.art"</item>
      <item>"/system/framework/arm/boot-ext.oat"</item>
      <item>"/system/framework/boot-ext.vdex"</item>
      <!-- <item>"/system/framework/framework.jar"</item> -->
      <!-- <item>"/system/framework/services.jar"</item> -->
      <!-- <item>"/system/framework/oat/arm/services.odex"</item> -->
      <item>"/system/framework/arm/boot-framework.art"</item>
      <!-- <item>"/system/framework/arm/boot-framework.oat"</item> -->
      <!-- <item>"/system/framework/boot-framework.vdex"</item> -->
   </string-array>
</resources>
config.xml (1,784 bytes)
planck.mk (15,601 bytes)
# Copyright (C) 2011 Amlogic Inc
#
# Licensed under the Apache License, Version 2.0 (the "License");
# you may not use this file except in compliance with the License.
# You may obtain a copy of the License at
#
#      http://www.apache.org/licenses/LICENSE-2.0
#
# Unless required by applicable law or agreed to in writing, software
# distributed under the License is distributed on an "AS IS" BASIS,
# WITHOUT WARRANTIES OR CONDITIONS OF ANY KIND, either express or implied.
# See the License for the specific language governing permissions and
# limitations under the License.

#
# This file is the build configuration for a full Android
# build for Meson reference board.
#

#ATV version, need compile DRM related modules
ifneq ($(BOARD_COMPILE_ATV),false)
BOARD_COMPILE_CTS := true
endif

PRODUCT_DIR := planck

ifneq ($(ATV_LAUNCHER), amati)
$(warning build AndroidTV)
CONFIG_DEVICE_LOW_RAM := true
KERNEL_A32_SUPPORT :=true
else
$(warning ATV_LAUNCHER = $(ATV_LAUNCHER))
endif

########################################################################
# put ms12 ddp dtshd dovi related to oem partitions.
########################################################################
TARGET_BUILD_OEM_WITH_LICENSE_FILES := true

ifeq ($(CONFIG_DEVICE_LOW_RAM),true)
# Enable DM file pre-opting to reduce first boot time
PRODUCT_DEX_PREOPT_GENERATE_DM_FILES := true
PRODUCT_DEX_PREOPT_DEFAULT_COMPILER_FILTER := verify

PRODUCT_PROPERTY_OVERRIDES += \
    dalvik.vm.heapgrowthlimit=160m \
    dalvik.vm.heapmaxfree=4m \
    dalvik.vm.heapsize=224m \
    dalvik.vm.heapstartsize=4m

ifneq ($(BOARD_COMPILE_ATV), false)
 PRODUCT_PROPERTY_OVERRIDES += \
     ro.sf.lcd_density=213
 else
 PRODUCT_PROPERTY_OVERRIDES += \
     ro.sf.lcd_density=160
endif

# config of surfaceflinger
PRODUCT_PROPERTY_OVERRIDES += \
    ro.surface_flinger.max_graphics_width=1280 \
    ro.surface_flinger.max_graphics_height=720 \
    ro.surface_flinger.max_frame_buffer_acquired_buffers=3 \
    ro.sf.disable_triple_buffer=0

# Inherit Go default properties, sets is-low-ram-device flag etc.
#call build/make/target/product/go_defaults.mk
PRODUCT_PROPERTY_OVERRIDES += \
     ro.config.low_ram=true \
     ro.config.per_app_memcg=false

#overlay for lowram
PRODUCT_PACKAGES += \
    LowRamOverlay

# Speed profile services and wifi-service to reduce RAM and storage.
PRODUCT_SYSTEM_SERVER_COMPILER_FILTER := speed-profile

# Always preopt extracted APKs to prevent extracting out of the APK for gms
# modules.
PRODUCT_ALWAYS_PREOPT_EXTRACTED_APK := true

# Use a profile based boot image for this device. Note that this is currently a
# generic profile and not Android Go optimized.
PRODUCT_USE_PROFILE_FOR_BOOT_IMAGE := true
PRODUCT_DEX_PREOPT_BOOT_IMAGE_PROFILE_LOCATION := frameworks/base/config/boot-image-profile.txt

# Do not generate libartd.
PRODUCT_ART_TARGET_INCLUDE_DEBUG_BUILD := false

# Strip the local variable table and the local variable type table to reduce
# the size of the system image. This has no bearing on stack traces, but will
# leave less information available via JDWP.
PRODUCT_MINIMIZE_JAVA_DEBUG_INFO := true

# Disable Scudo outside of eng builds to save RAM.
ifneq (,$(filter eng, $(TARGET_BUILD_VARIANT)))
  PRODUCT_DISABLE_SCUDO := true
endif

# Add the system properties.
PRODUCT_PROPERTY_OVERRIDES += \
	ro.lmk.critical_upgrade=true \
	ro.lmk.upgrade_pressure=40 \
	ro.lmk.downgrade_pressure=60 \
	ro.lmk.kill_heaviest_task=false \
	pm.dexopt.downgrade_after_inactive_days=10 \
	pm.dexopt.shared=quicken

# Dedupe VNDK libraries with identical core variants.
TARGET_VNDK_USE_CORE_VARIANT := true
# Inherit Go default properties end

# Reduces GC frequency of foreground apps by 50%
#PRODUCT_PROPERTY_OVERRIDES += dalvik.vm.foreground-heap-growth-multiplier=2.0

#DONT_UNCOMPRESS_PRIV_APPS_DEXS := true

else
BOARD_ENABLE_FAR_FIELD_AEC := true
endif
#########################################################################
#
#                          CCodec
#
##########################################################################

########################################################################
#
##                            HDR
#
#########################################################################
#hdr10_tmo
HDR10_TMO_MODULE := true
include device/amlogic/common/video_algorithm/hdr10_tmo/hdr10_tmo.mk


# use malloc svelte to save memory
MALLOC_SVELTE := true

########################################################################
#
#                            TV
#
########################################################################
PRODUCT_SUPPORT_DTVKIT := false
#SUPPORT_CBS := true

ifeq ($(PRODUCT_SUPPORT_DTVKIT),true)
SUPPORT_DTVKIT_IN_VENDOR := true
PRODUCT_DTVKIT_SUPPORT_ISDBT := true
TARGET_BUILD_LIVETV := true
endif

ifeq ($(SUPPORT_CBS),true)
SUPPORT_TUNERHAL := true
CBS_VERSION := V3
endif

ifeq ($(TARGET_BUILD_LIVETV),true)
PRODUCT_PACKAGES += \
    droidlogic.tv.software.core.xml

#dvbstack
BOARD_HAS_ADTV := true
#tuner
TUNER_MODULE := cxd2856 r836 av2018

TARGET_BUILD_LIBDVR := true
ifeq ($(TARGET_BUILD_LIBDVR),true)
PRODUCT_PACKAGES += \
    libamdvr
endif
endif


$(call inherit-product, device/amlogic/common/products/mbox/product_mbox.mk)
$(call inherit-product, device/amlogic/$(PRODUCT_DIR)/device.mk)
$(call inherit-product, device/amlogic/$(PRODUCT_DIR)/vendor_prop.mk)
$(call inherit-product-if-exists, vendor/amlogic/$(PRODUCT_DIR)/device-vendor.mk)

#########################################################################
#
#                                                CTC
#
#########################################################################
BUILD_WITH_CTC_MEDIAPROCESSOR := true

#########################################################################
#
#  Amlogic Media Platform API
#
#########################################################################
BUILD_WITH_AML_MP := true

#########################################################################
#
#  Media extension
#
#########################################################################
TARGET_WITH_MEDIA_EXT_LEVEL := 4


PRODUCT_NAME := $(TARGET_PRODUCT)
PRODUCT_DEVICE := $(TARGET_PRODUCT)
PRODUCT_BRAND := Amlogic
PRODUCT_MODEL := $(TARGET_PRODUCT)
PRODUCT_MANUFACTURER := Amlogic

PRODUCT_PROPERTY_OVERRIDES += \
    ro.soc.manufacturer=Amlogic \
    ro.soc.model=AMLS805X2

PRODUCT_TYPE := mbox

BOARD_AML_VENDOR_PATH := vendor/amlogic/common/
BOARD_WIDEVINE_TA_PATH := vendor/amlogic/

OTA_UP_PART_NUM_CHANGED := true

PLATFORM_TDK_VERSION := 38
BOARD_AML_SOC_TYPE ?= S805X2
BOARD_AML_TDK_KEY_PATH := device/amlogic/common/tdk_keys/
BUILD_WITH_AVB := true
BUILD_WITH_UDC := false
BOARD_USES_VBMETA_SYSTEM ?= true

#LAUNCH_ON_S is to identify a devices is
#launch on s,if the device is upgraded from Q to S
#LAUNCH_ON_S should set false
LAUNCH_ON_S ?= true
TARGET_FROM_Q_AB ?= false
TARGET_OLD_DEVICE ?= false

ifeq ($(TARGET_FROM_Q_AB), true)
LAUNCH_ON_S := false
BOARD_USES_VBMETA_SYSTEM := false
TARGET_OLD_DEVICE := true
AB_OTA_UPDATER ?=true
endif

ifeq ($(LAUNCH_ON_S),true)
TARGET_GPT_PART ?= true
AB_OTA_UPDATER ?=true
endif

ifeq ($(TARGET_GPT_PART),true)
AML_GPT_PART := device/amlogic/planck/part_table.txt
AML_EMMC_SIZE := 16G
endif

BOARD_USES_ODM_EXTIMAGE := true

ifneq ($(TARGET_OLD_DEVICE), true)
AB_OTA_UPDATER ?=true
BOARD_USES_VENDOR_DLKMIMAGE := true
BOARD_USES_ODM_DLKMIMAGE := true
else
LAUNCH_ON_S := false
endif

ifneq ($(TARGET_BUILD_KERNEL_4_9),true)
BUILDING_VENDOR_BOOT_IMAGE ?= true
endif

ifeq ($(AB_OTA_UPDATER),true)
ifeq ($(BUILDING_VENDOR_BOOT_IMAGE),true)
$(call inherit-product, $(SRC_TARGET_DIR)/product/virtual_ab_ota/compression.mk)
$(call inherit-product, $(SRC_TARGET_DIR)/product/virtual_ab_ota/launch_with_vendor_ramdisk.mk)
else
$(call inherit-product, $(SRC_TARGET_DIR)/product/virtual_ab_ota.mk)
endif
endif

PRODUCT_USE_DYNAMIC_PARTITIONS := true
#BOARD_BUILD_SYSTEM_ROOT_IMAGE := true

#########################################################################
#
#  SECURE BOOT V3
#
#########################################################################
#########Support compiling out encrypted zip/aml_upgrade_package.img directly

#need be modified later
ifeq ($(TARGET_PRODUCT),newton)
BOARD_AML_SECUREBOOT_KEY_DIR := ./bootloader/uboot-repo/bl33/v2015/board/amlogic/sm1_ac215_v1/aml-key
else ifeq ($(TARGET_PRODUCT),newton_hybrid)
BOARD_AML_SECUREBOOT_KEY_DIR := ./bootloader/uboot-repo/bl33/v2015/board/amlogic/sm1_ac232_v1/aml-key
else ifeq ($(TARGET_PRODUCT),ac212)
BOARD_AML_SECUREBOOT_KEY_DIR := ./bootloader/uboot-repo/bl33/v2015/board/amlogic/sm1_ac212_v1/aml-key
else
BOARD_AML_SECUREBOOT_KEY_DIR := ./bootloader/uboot-repo/bl33/v2015/board/amlogic/sm1_ac214_v1/aml-key
endif

BOARD_AML_SECUREBOOT_SOC_TYPE := sc2

PRODUCT_GOOGLEREF_SECURE_BOOT := false
ifeq ($(PRODUCT_GOOGLEREF_SECURE_BOOT),true)
PRODUCT_GOOGLEREF_SECURE_BOOT_TOOL := ./device/amlogic/$(PRODUCT_DIR)/tools/amlogic-sign-planck.sh
endif

#########################################################################
#
#  Dm-Verity
#
#########################################################################
#TARGET_USE_SECURITY_DM_VERITY_MODE_WITH_TOOL := true

#########################################################################
#
#                      WiFi and Bluetooth
#
#########################################################################
include vendor/amlogic/common/wifi_bt/wifi/configs/wifi.mk
BOARD_HAVE_BLUETOOTH := true
include vendor/amlogic/common/wifi_bt/bluetooth/configs/bluetooth.mk

#########################################################################
#
# Audio
#
#########################################################################
BOARD_ALSA_AUDIO=tiny
include device/amlogic/common/audio.mk

#########################################################################
#
#  PlayReady DRM
#
#########################################################################
#export BOARD_PLAYREADY_LEVEL=3 for PlayReady+NOTVP
#export BOARD_PLAYREADY_LEVEL=1 for PlayReady+OPTEE+TVP

#########################################################################
#
#  Verimatrix DRM
#
##########################################################################
#verimatrix web
BUILD_WITH_VIEWRIGHT_WEB := false
#verimatrix stb
BUILD_WITH_VIEWRIGHT_STB := false

#########################################################################

#########################################################################
#
#  WifiDisplay
#
##########################################################################
ifeq ($(BOARD_COMPILE_ATV), false)
BUILD_WITH_MIRACAST := true
endif

#########################################################################

########################################################################
#
#                        dsp_util
#
########################################################################
PRODUCT_PACKAGES += \
    dsp_util \
    hifi4_rpc_test \
    hifi4rpc_client_test

########################################################################
#
#                          Netflix
#
#########################################################################
#TARGET_BUILD_NETFLIX:= true
#TARGET_BUILD_NETFLIX_MGKID := true
#TARGET_BUILD_NETFLIX_MODELGROUP:= XXXXX

#######################################################################
#
#           enable MIC toggle if FFM is enabled
#
#######################################################################
BOARD_ENABLE_LIGHT_CONTROL := true
ifeq ($(BOARD_ENABLE_FAR_FIELD_AEC), true)
BOARD_HAS_MIC_TOGGLE := true
endif

########################################################################
#
#                          Audio License Decoder
#  Dolby license:
#  TARGET_DOLBY_VERSION: use to control the dolby version
#  ms12_v2: support ms12 v2.4
#  ms12_v1: support ms12 v1.3
#  ddp_only: only support ddp decoder
#  non_dolby: not support dolby decoder
#
#  DTS license:
#  TARGET_DTS_VERSION: use to control the dts version
#  dtshd: support dts hd decoder
#  non_dts: not support dts decoder
########################################################################
TARGET_DOLBY_VERSION ?= non_dolby
ifeq ($(TARGET_DOLBY_VERSION), ms12_v2)
    TARGET_BUILD_DOLBY_MS12_V2 := true
else ifeq ($(TARGET_DOLBY_VERSION), ms12_v1)
    TARGET_BUILD_DOLBY_MS12_V1 := true
else ifeq ($(TARGET_DOLBY_VERSION), ddp_only)
    TARGET_BUILD_DOLBY_DDP := true
else
    TARGET_BUILD_DOLBY_DDP := false
endif

TARGET_DTS_VERSION ?= non_dts
ifeq ($(TARGET_DTS_VERSION), dtshd)
    TARGET_BUILD_DTSHD := true
else
    TARGET_BUILD_DTSHD := false
endif

########################################################################
#  This control decide whether it need to be compatible
#  between ms12_v2 and non_dolby version
########################################################################

ifneq ($(TARGET_BUILD_DOLBY_MS12_V1), true)

TARGET_BUILD_COMPATIBLE_MS12_V2 ?= true

ifeq ($(TARGET_BUILD_DOLBY_MS12_V2), true)
    TARGET_INSTALL_DOLBY_MS12_V2 :=true
else ifeq ($(TARGET_BUILD_COMPATIBLE_MS12_V2), true)
    TARGET_INSTALL_DOLBY_MS12_V2 :=true
    $(warning "This non ms12 build, but it is compatible with ms12")
endif
endif

#TARGET_BUILD_WITH_DOVI := true

#################################################################################
#
#  DEFAULT LOWMEMORYKILLER CONFIG
#
#################################################################################
BUILD_WITH_LOWMEM_COMMON_CONFIG := true

BOARD_USES_USB_PM := true

#########################################################################
#
#           OEM Partitions based dynamic fingerprint
#
#########################################################################
BOARD_USES_DYNAMIC_FINGERPRINT ?= true

ifeq ($(AB_OTA_UPDATER),true)
my_src_fstab := fstab.ab
else
my_src_fstab := fstab.system
endif

ifeq ($(BOARD_USES_DYNAMIC_FINGERPRINT),true)
my_src_fstab := $(my_src_fstab)_oem
endif

ifeq ($(TARGET_OLD_DEVICE), true)
my_src_fstab := fstab.ab.old
endif

my_dst_fstab := $(TARGET_COPY_OUT_VENDOR_RAMDISK)/first_stage_ramdisk/fstab.amlogic

PRODUCT_COPY_FILES += \
    device/amlogic/$(PRODUCT_DIR)/$(my_src_fstab).amlogic:$(TARGET_COPY_OUT_VENDOR)/etc/fstab.amlogic \
    device/amlogic/$(PRODUCT_DIR)/$(my_src_fstab).amlogic:$(my_dst_fstab)

$(call inherit-product, device/amlogic/common/media.mk)

#1G platform can't support vulkan, cts case need at least 1073741824 byte memory
BOARD_INSTALL_VULKAN := false

include device/amlogic/common/gpu/dvalin-user-arm64.mk

include device/amlogic/common/products/mbox/s4/s4.mk

#########################################################################
#
##                                     Auto Patch
#                          must put in the end of mk files
##########################################################################
AUTO_PATCH_SHELL_FILE := vendor/amlogic/common/pre_submit_for_google/auto_patch.sh
HAVE_WRITED_SHELL_FILE := $(shell test -f $(AUTO_PATCH_SHELL_FILE) && echo yes)

ifeq ($(IS_REFERENCE_PROJECT), true)
REFERENCE_PARAMS := true
else
REFERENCE_PARAMS := false
endif

ifneq ($(BOARD_COMPILE_ATV), false)
ATV_PARAMS := true
else
ATV_PARAMS := false
endif

ifeq ($(TARGET_BUILD_LIVETV), true)
LIVETV_PARAMS := true
else
LIVETV_PARAMS := false
endif

ifeq ($(HAVE_WRITED_SHELL_FILE),yes)
SCRIPT_RESULT :=$(shell ($(AUTO_PATCH_SHELL_FILE) $(REFERENCE_PARAMS) $(LIVETV_PARAMS)  $(ATV_PARAMS) ))
ifeq ($(filter Error,$(SCRIPT_RESULT)), Error)
$(error $(SCRIPT_RESULT))
else
$(warning $(SCRIPT_RESULT))
endif
endif
PRODUCT_COPY_FILES += \
    device/amlogic/$(PRODUCT_DIR)/ueventd.parallel.rc:$(TARGET_COPY_OUT_ODM)/ueventd.rc
planck.mk (15,601 bytes)
6cb1d023.diff.zip (630 bytes)

(ALTech) JunGyu Kim

2023-01-31 15:53

developer   ~0011915

Hi Jason,

As a result of today's meeting, it was discussed that this issue will request Waiver.
In other words, it was decided to use Fixed mode by setting HWC_REAL_MODE = false.
Please ignore the patch delivered above.

Thank you.
Kim

(SW) Jason Ling

2023-01-31 16:19

developer   ~0011917

Hi JunGyu,

I've updated HWC_REAL_MODE = false in branch BFX-AT100_5.3.4_S_DEV and BFX-AT100_5.3.7.

Please ask Amlogic to process waiver request and let us know the waiver id. (like listening port waiver before, all OEMs use the same waiver id)

As far as i know, the HWC_REAL_MODE = false will impact
TVTS: TvtsHdmiHostTestCases module
CTS-Verifier: manualTests#com.android.cts.verifier.tv.display.ModeSwitchingTestActivity

Thanks,
Jason

(ALTech) JunGyu Kim

2023-02-01 09:58

developer   ~0011929

Hi Jason,

I inquired about the waiver to Amlogic, but Amlogic says that Amlogic cannot request waiver due to internal policy issues.
Therefore, it seems that the manufacturer will have to request waiver.
For reference, it seems that other manufacturers will also request a waiver directly.

In addition, we have requested the necessary information for waiver application from Amlogic.

Thank you.
Kim

(SW) Jason Ling

2023-02-01 10:35

developer   ~0011932

Last edited: 2023-02-01 10:35

 Hi JunGyu,

Could you confirm that other OEM encounter the same failures?
If we want to request waiver related to HWC_REAL_MODE, we need to list all related failures.

As far as i know, the HWC_REAL_MODE = false will impact
TVTS: TvtsHdmiHostTestCases module => We will list details items later.
CTS-Verifier: manualTests#com.android.cts.verifier.tv.display.ModeSwitchingTestActivity

>>I inquired about the waiver to Amlogic, but Amlogic says that Amlogic cannot request waiver due to internal policy issues.
>>Therefore, it seems that the manufacturer will have to request waiver.
I think it's going to be complicated. we process waiver request by our 3PL, 3PL help us post issue on issue tracker, so we can not access that ticket directly.
If Google ask us some questions, we need to ask Amlogic to explain it and forward to 3PL to reply it. => it's pretty inefficient.

That is why we ask Amlogic to process waiver request, because they can discuss Google engineer directly.

Thanks,
Jason

(ALTech) JunGyu Kim

2023-02-01 12:08

developer   ~0011940

Hi Jason,

I understood but Amlogic cannot accept as your mention because the policy.
The policy is, Amlogic said that if Amlogic request waiver, it is Google policy violation, they can not keep android business.
(I think it is very political issue.)

As you mentioned, it is pretty inefficient. Is it impossible process waiver request directly?

Thank you.
Kim

(SW) Jason Ling

2023-02-01 16:37

developer   ~0011961

Last edited: 2023-02-01 16:45

 Hi JunGyu,

Before processing waiver request, we should confirm the failures related to HWC_REAL_MODE are same as other OEM

As far as i know, the HWC_REAL_MODE = false will impact
1. TVTS: TvtsHdmiHostTestCases module (Please refer to TvtsHdmiHostTestCases.zip)
Total Tests : 272
PASSED : 76
FAILED : 32
ASSUMPTION_FAILURE: 164
Note: the detail of failure MUST be the same as other OEM's report.

2. CTS-Verifier: manualTests#com.android.cts.verifier.tv.display.ModeSwitchingTestActivity

Please also ask Amlogic to provide analysis why these failures are related to HWC_REAL_MODE

Thanks,
Jason
TvtsHdmiHostTestCases.zip (149,753 bytes)

(ALTech) Younkwang Jung

2023-02-07 11:57

developer   ~0012040

Hi Jason

For other manufacturers(Amlogic reference/INTEK/INNOPIA), TvtsHdmiHostTestCases fail regardless of HWC_REAL_MODE.
https://jira.skbroadband.com/browse/AMANDROIDS-21

However, you said that TvtsHdmiHostTestCases could be PASS if HWC_REAL_MODE set to true.

So Amlogic wants to get this PASSED logs of TvtsHdmiHostTestCases
Please collect the logs(logcat + goolge passed TestCases log) and send it to me.

Thank you
YK.Jung

(SW) Jason Ling

2023-02-07 15:48

developer   ~0012043

Hi YK,

Please check the attachment, the results of this TvtsHdmiHostTestCases is PASS when HWC_REAL_MODE is true.
Before testing this module, please remember to enable passthrough (default value is BTV)

If HWC_REAL_MODE is true
We can pass this module, and we only take about 4 mins to finished this module
Total Tests : 272
PASSED : 256
FAILED : 0
ASSUMPTION_FAILURE: 16

If HWC_REAL_MODE is false
We can NOT pass this module, and we will take about 1 hour to finished this module (I suspect that there are many timeouts during testing this module.)
Total Tests : 272
PASSED : 76
FAILED : 32
ASSUMPTION_FAILURE: 164

Thanks,
Jason
TvtsHdmiHostTestCases-report.zip (92,725 bytes)
TvtsHdmiHostTestCases-log.zip (1,051,016 bytes)

(ALTech) Younkwang Jung

2023-02-09 16:52

developer   ~0012098

Hi Jason

Please request waivers for the following two test fail cases.
CTS-Verifier : https://jira.skbroadband.com/browse/AMANDROIDS-36
TvtsHdmiHostTestCases : https://jira.skbroadband.com/browse/AMANDROIDS-21

Please refer to the attached document and proceed with the waiver.

Thank you
YK.Jung
How to set 1080i and its side effect.docx (54,597 bytes)

(SW) Jason Ling

2023-02-09 17:13

developer   ~0012099

Hi YK,

Have you compared reports from other OEMs?
Before processing waiver request, we should confirm the failures related to HWC_REAL_MODE are same as other OEM.

Thanks,
Jason

(ALTech) Younkwang Jung

2023-02-10 09:40

developer   ~0012118

Hi Jason

About "But for some reason, SKB has to support 1080i on ATV-S."
Until now, SKB has supported 1080i until ATV9/ATV10, and customers can have TVs that support up to 1080i, so SKB ATV model should support 1080i even after upgrading to ATV12.

The test result for HWC_REAL_MODE are the same as other manufacturer (INTEK/INNOPIA)
and the documnet provided by amlogic has been delivered to INTEK/INNOPIA, and each manufacturer will request a waiver with the same content.

Thank you
YK.Jung

(ALTech) Younkwang Jung

2023-02-13 10:36

developer   ~0012141

Hi Jason

I'm updating additional data

Thank you
YK.Jung
Android S unsupport interlace mode.docx (12,878 bytes)

(SW) Jason Ling

2023-02-15 10:31

developer   ~0012175

Hi YK,

https://issuetracker.google.com/269342225
(We don't have permission to see the content, if there is any update, our 3PL will inform us)

Thanks,
Jason

(SW) Jason Ling

2023-02-22 10:09

developer   ~0012302

Hi YK,

What is the status of waiver requests for other OEMs?
I checked it with our 3PL this morning. they said "no updated from Google".

Thanks,
Jason

(SW) Jason Ling

2023-02-22 11:12

developer   ~0012305

Last edited: 2023-02-22 11:12

 Hi YK,

our 3PL just replied us "SKB is discussing it with Google Mr. Jeff now"
so our 3PL and I doesn't know the detail. if SKB already got any information from Mr. Jeff.
Please let us know,

Thanks,
Jason

(ALTech) Younkwang Jung

2023-02-23 10:11

developer   ~0012329

HI Jason

I asked SKB manager to check it, but SKB manager doesn't know it either.
I will let you know if there is any update related to this during the ATV12 meeting.

Thank you
YK.Jung

(SW) Jason Ling

2023-04-10 09:30

developer   ~0012768

Hi YK,

Google share the attachment to us (How to set the interlaced mode.pdf), and ask us to verify it.

Could you check it with Amlogic?

Thanks,
Jason
How to set the interlaced mode.pdf (37,368 bytes)

(ALTech) Younkwang Jung

2023-04-10 10:56

developer   ~0012770

Hi Jason

The document you shared now was obtained by the three manufacturers with the same contents.
INNOPIA first updated this information to JIRA.
https://jira.skbroadband.com/browse/AMANDROIDS-21
AML is checking it.

Thank you
YK.Jung

(ALTech) Younkwang Jung

2023-04-11 08:37

developer   ~0012783

Hi Jason

AML will provide a patch that has this issue resolved on 4/14.
but the patch provided has not been conducted until Google Test.
So if AML provides the patch on 4/14, the three companies(INTEK/INNOPIA/FXN) will conduct a Google test in common.
(Check if there is a side effect or not)

thank you
YK.Jung

(ALTech) Younkwang Jung

2023-04-13 12:01

developer   ~0012837

Hi Jason

Regarding SKB's interlace mode function,
the first version of the code has been completed, and please refer to the attachment for patch and explanatory documents.
Description documents mainly include basic design ideas and code descriptions and test methods.

Patch ：Setting APK + systemcontrol + Hwcomposer

Please check if there are any other side effects in Google test after applying this patch.
And please share the built ND/SD FW.

Thank you
YK.Jung
Interlace Mode Setting on Android S.docx (133,496 bytes)
Patches_for_SKB_Interlace_Mode.7z (8,270 bytes)

(SW) Jason Ling

2023-04-13 15:56

developer   ~0012848

Hi YK,

Build Error with Amlgoic Patch,

ERROR: vendor.amlogic.hardware.systemcontrol@1.0::ISystemControl has hash a1b84ab0c48ff752d38f514fea4f2ba51ed8e3c1e7217d1032897015853eaa2c which does not match hash on record. This interface has been frozen. Do not change it!
ERROR: Validation failed.

it looks like we have update the hash with ISystemControl. Please check it with Amlogic and review my modification

xts@xts-deskmini:~/Projects/eagle12/vendor/amlogic/common$ git diff .
diff --git a/interfaces/current.txt b/interfaces/current.txt
index 92c548c..4cca443 100644
--- a/interfaces/current.txt
+++ b/interfaces/current.txt
@@ -4,7 +4,7 @@ fa20129fe2cc1a5d5393cc0e7c80a4d81d28d6ca56f1bf730bc407637fffec3b vendor.amlogic.
 fd70d70a08c190d8e7d439219294c3da3df9ef8b7e6c588390a74b4b22223ed7 vendor.amlogic.hardware.remotecontrol@1.0::types
 af5e1fe7509263002ce2dc951b47af8c7439167a7ad70ac2cc9166b976f3ef17 vendor.amlogic.hardware.remotecontrol@1.0::IRemoteControl
 5c62cf94005a2c204eb57fb3d9bd10e78a8716208715f7e1e2f067346404f359 vendor.amlogic.hardware.systemcontrol@1.0::types
-9817c9bcbce80d24b533c872bd40406291cb98aafd954fbd30f99c77b626321f vendor.amlogic.hardware.systemcontrol@1.0::ISystemControl
+a1b84ab0c48ff752d38f514fea4f2ba51ed8e3c1e7217d1032897015853eaa2c vendor.amlogic.hardware.systemcontrol@1.0::ISystemControl
 154bc9d8ec2d1a309c95ce2c6b94d6e76e6bc2db4079fe87b2d8958a075bd94f vendor.amlogic.hardware.systemcontrol@1.0::ISystemControlCallback
 a0202e5818e97efbbe55e7eb4da7922d3f698749e492324c0e88f9d8babfe0e3 vendor.amlogic.hardware.systemcontrol@1.1::ISystemControl
 57e1363a95df23a23fd661967eb0861d82a465b77f82f87b2534fd44e6712420 vendor.amlogic.hardware.tvserver@1.0::types

Thanks,
Jason

(SW) Jason Ling

2023-04-13 17:16

developer   ~0012849

Hi YK,

I've updated SD/ND to the following folder
/release_by_fxn/tmp/HWC_ENABLE_REAL_MODE_patch

I haven't push the patch to SKB server.
I'll verify CTS-Verifier/TVTS/ CTS graphic item first.

Thanks,
Jason

(SW) Jason Ling

2023-04-13 18:58

developer   ~0012852

Last edited: 2023-04-13 18:59

 Hi YK,

CTS-Verifier: PASS on 4K TV, Fail on 1080P Monitor
TVTS: PASS

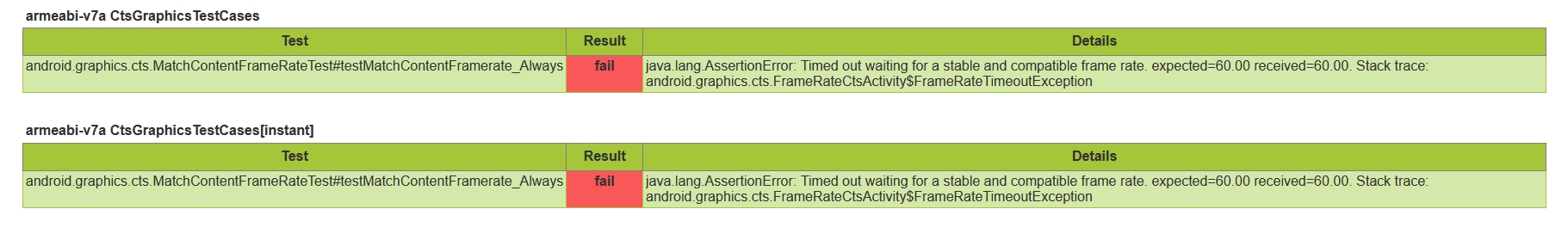

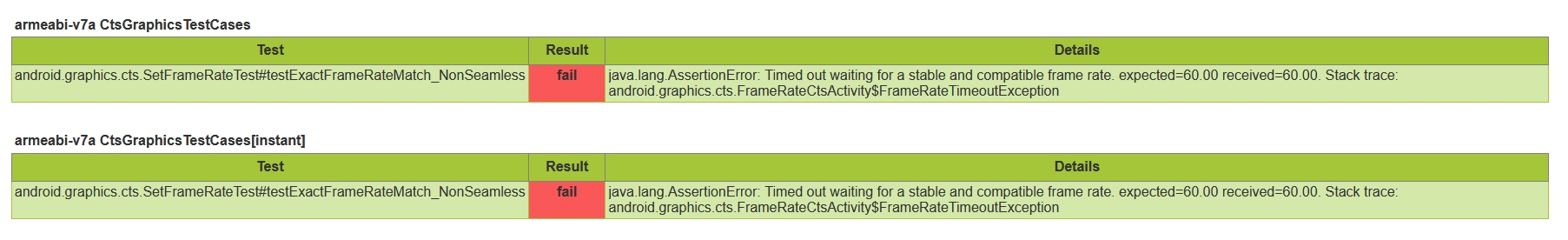

2 CTS Graphics fail: please refer to attachment. we've set HWC_ENABLE_REAL_MODE = true in this January for pretest, at that time, I know this failures, so I test it again when we set HWC_ENABLE_REAL_MODE back to true.
Please forward the fail to Amlogic

Thanks,
Jason
MatchContentFrameRateTest-log.zip (728,794 bytes)
MatchContentFrameRateTest-result.zip (315,641 bytes)
SetFrameRateTest-log.zip (632,017 bytes)
SetFrameRateTest-result.zip (316,516 bytes)

(ALTech) Younkwang Jung

2023-04-14 07:32

developer   ~0012854

Hi jason

I reported your test results to AML first.

Thank you
YK.Jung

(ALTech) Younkwang Jung

2023-04-14 11:15

developer   ~0012861

Last edited: 2023-04-17 11:44

View 2 revisions

Hi Jason

SKB manager asked to divide the items for quick Google test results.
Please proceed with the test items below with the FW with the AML patch applied.

CTS-on-GSI ALT(Foxconn)
STS ALT(Foxconn)/INTEK/INNOPIA
CTS-Verifier ALT(Foxconn)/INTEK/INNOPIA
TVTS ALT(Foxconn)/INTEK/INNOPIA

Please check if all of the above test items are passed

Thank you
YK.Jung

(ALTech) Younkwang Jung

2023-04-17 09:22

developer   ~0012874

Hi Jason

When can I get the test list results requested above?

Thank you
YK.Jung

(SW) Jason Ling

2023-04-17 10:09

developer   ~0012877

Last edited: 2023-04-17 10:28

 Hi YK,

We can not accepted "quick" Google test request.

As you know, our QA are working on SWAN pretest and Amazon Prime Video pretest (Smart3)
the SmokeTest/Cts-Verifier of SWAN and AmazonPrimeVideo (Smart3) are manual test. (so there is no more resource to accepted your "quick" request")

Please let me know the priority.
If you don't know the priority, we will put the CTS-Verifier as the lowest priority (because this test suite need human to verify)

If we have idle PCs, we will test it with the following priority.
STS -> TVTS -> CTS-ON-GSI->CTS-Verifier
target finished date, this Friday (4/21)

Thanks,
Jason

(ALTech) Younkwang Jung

2023-04-17 11:12

developer   ~0012883

Hi Jason

For Amazon Prime Video test, I know it is until May.
If there is no problem with Amazon Prime Video pretest until May, please proceed with ATV12 instead of Amazon Prime Video pretest.

And the test priority for ATV12 is as follows.
1) CTS-ON-GSI
2) STS
3) TVTS
4) CTS-Verifier

Please let me know the estimated schedule.

Thank you
YK.Jung

(SW) Jason Ling

2023-04-17 12:26

developer   ~0012884

Hi YK,

for auto test, I asked our QA to test CTS-ON-GSI/STS first. After finished STS, they will test TVTS.
for manual test, I asked our QA to finished CTS-Verifier within today. (postponed manual test of Swan)

I think estimated schedule will be on this Wednesday (4/19)

Thanks,
Jason

(ALTech) Younkwang Jung

2023-04-20 13:11

developer   ~0012929

Hi Jason

here is the update on the FXN CTS-on-GSI results that failed (AMANDROIDS-97)
- CtsGraphicsTestCases fail : Test result of INTEK passed
- CtsWindowManagerDeviceTestCases fail : Test result of INTEK passed
- CtsMediaTestCases fail : Passed by reverting the e62aee6ad19 patch applied to AMANDROIDS-68

I am attaching the test result file of INTEK
BID-AT200_15.537.3401_CTSonGSI_Result.zip

Please check why these two items failed at FXN
- CtsGraphicsTestCases
- CtsWindowManagerDeviceTestCases

Thank you
YK.Jung
BID-AT200_15.537.3401_CTSonGSI_Result.zip (7,420,690 bytes)

(SW) Jason Ling

2023-04-20 14:03

developer   ~0012931

Hi YK,

Could you check Intek's report again,

They also have fail in CtsWindowManagerDeviceTestCases module.

Thanks,
Jason

(SW) Jason Ling

2023-04-20 16:03

developer   ~0012934

Hi YK,

I've used the the latest CTS dev build R9, the CtsWindowManagerDeviceTestCases is eliminated
I'll checked CtsGraphicsTestCases failures.

Thanks,
Jason

(ALTech) Younkwang Jung

2023-04-21 12:21

developer   ~0012943

Hi Jason

An error is occurring when changing the resolution of the screen in the HomeUI menu after applying the RealMode true patch. ( https://mantis.cnsbg.foxconn.com/vaas/view.php?id=1582#c12837)
Each manufacturer is working on the correction of this part. (INTEK / INNOPiA)

Please implement it using the function applied to the droidsetting. /* mSystemControlManager.setPerferredIModeOrPMode(mode, interlace); */
( Please send me the test FW when the implementation is completed. )

Thank you
YK.Jung

(SW) Jason Ling

2023-04-21 15:52

developer   ~0012953

Hi YK,

We have resolved CtsGraphicsTestCases failures.

Thanks,
Jason

(ALTech) Younkwang Jung

2023-04-25 08:31

developer   ~0012985

HI Jason

About https://mantis.cnsbg.foxconn.com/vaas/view.php?id=1582#c12943

The doc file for the patch you provided previously describes its implementation. ( file link is below )
https://mantis.cnsbg.foxconn.com/vaas/file_download.php?file_id=5592&type=bug
AML says it can be solved by referring to the document and making some modifications.
Please review the page (3 / 4 ) again.

Thank you
YK.Jung

(SW) Jason Ling

2023-04-25 17:08

developer   ~0012996

Hi YK,

Our QA reported one issue, I think this may be side effect from real_mode patch,

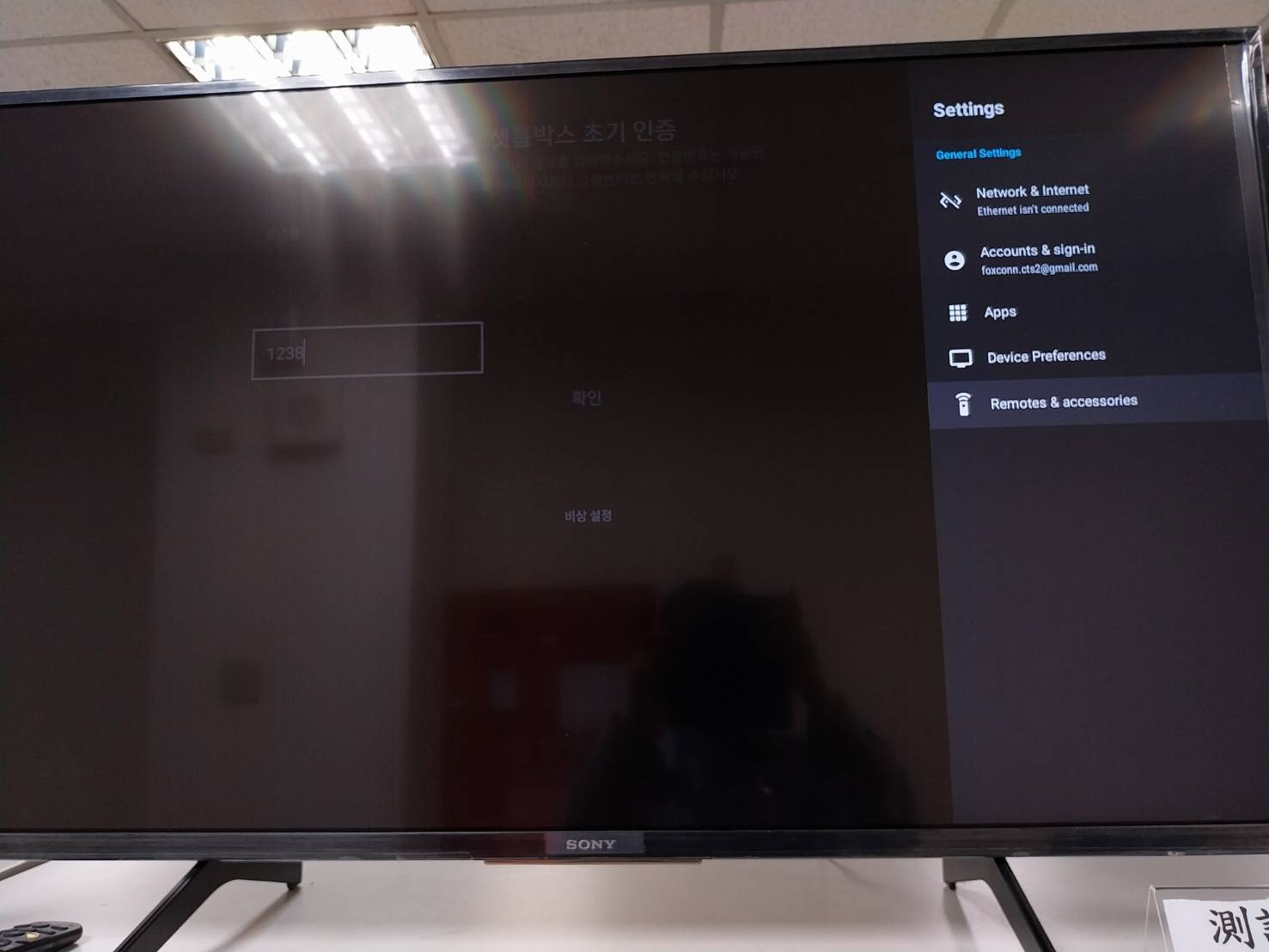

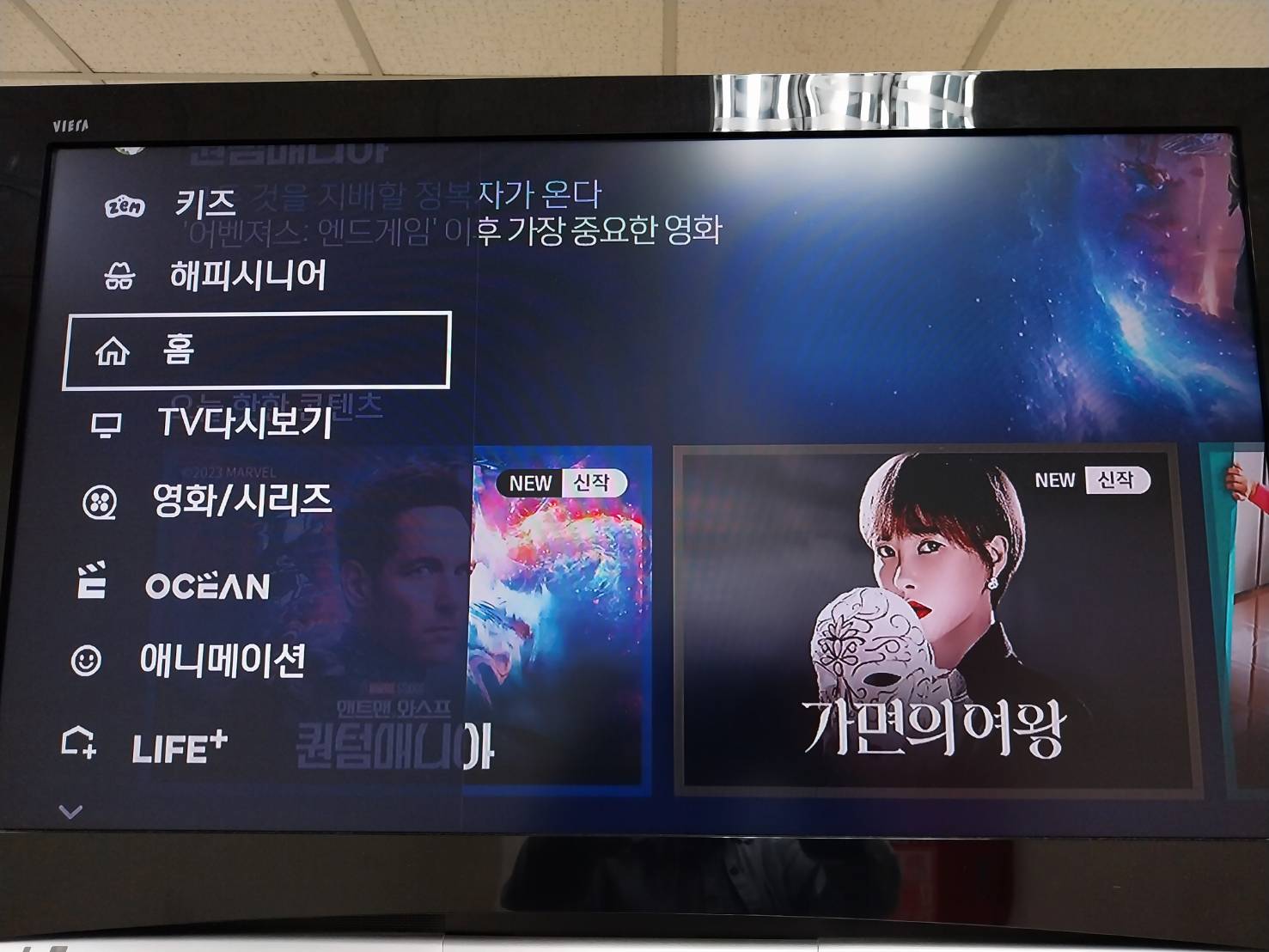

UI sometimes zooms in and sometimes zooms out.
Does other OEM reported it?
Please check it.

(SW) Jason Ling

2023-04-25 17:20

developer   ~0012997

Hi YK,

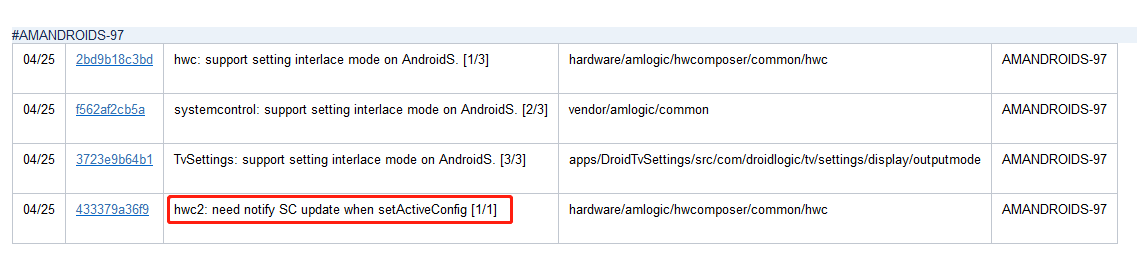

Amlogic released REAL_MODE patch officially this afternoon.
There is an additional patch we haven't seen before.
Should we rebuild the self-build ?
if so, Please ask Peter to merge it.
we will rebuild it.

Thanks,
Jason

(ALTech) Younkwang Jung

2023-04-25 18:07

developer   ~0012998

Hi Jason

You need to apply all the patches and rebuild.
The last patch is the one that resolves the zoom in/out issue
and you can use the FW version 15.537.42

Please use "dev , v534" to set up the server when you google test like before.

Thank you
YK.Jung

(SW) Jason Ling

2023-04-26 11:32

developer   ~0013004

Last edited: 2023-04-26 11:35

 Hi YK,

We still can reproduce this issue with SharpTV (After apply Amlogic patch)

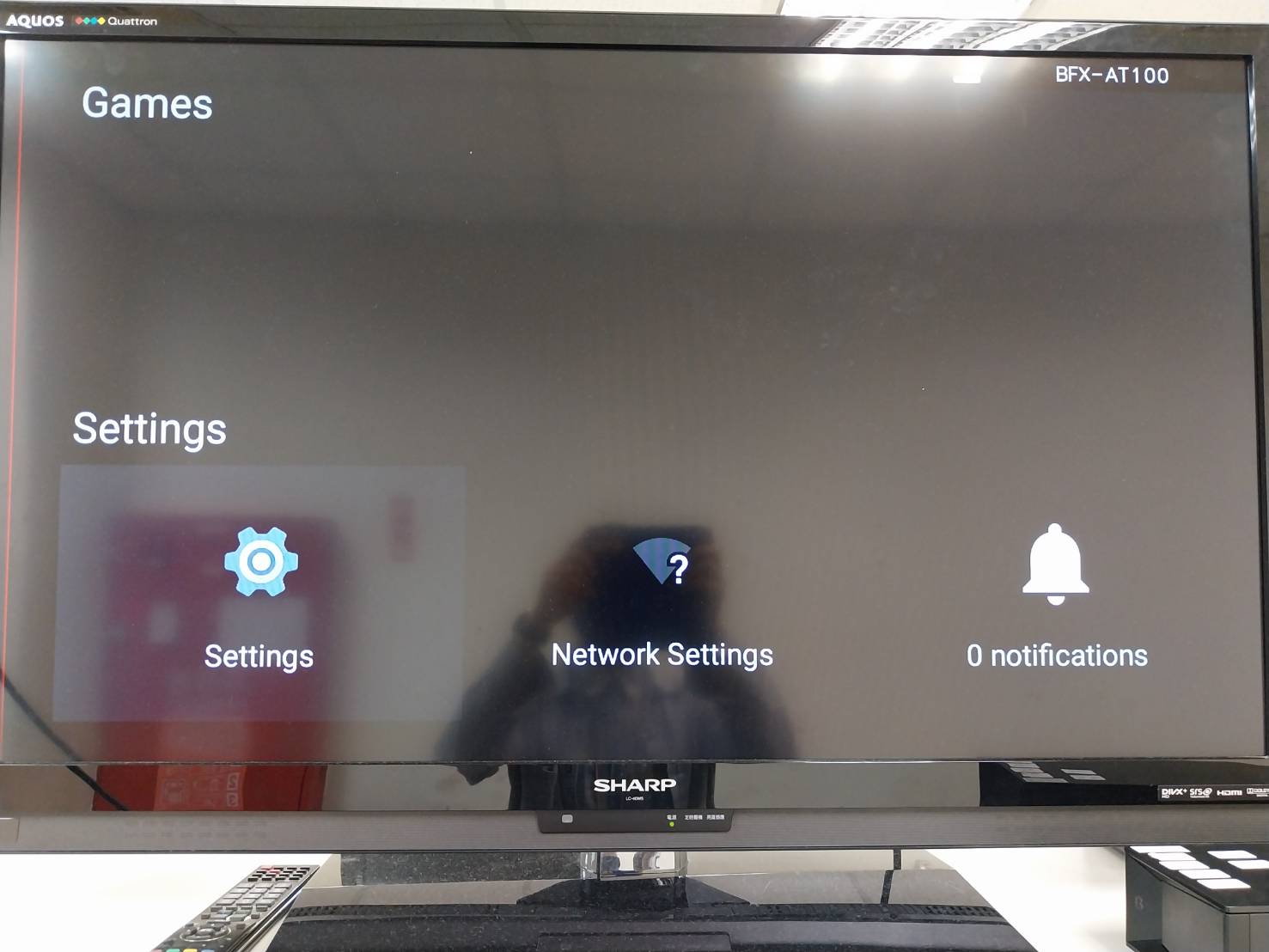

1. boot with SharpTV -> zoom in resolution (fail)
2. reboot device or remove and insert hdmi cable -> zoom in resolution (fail)

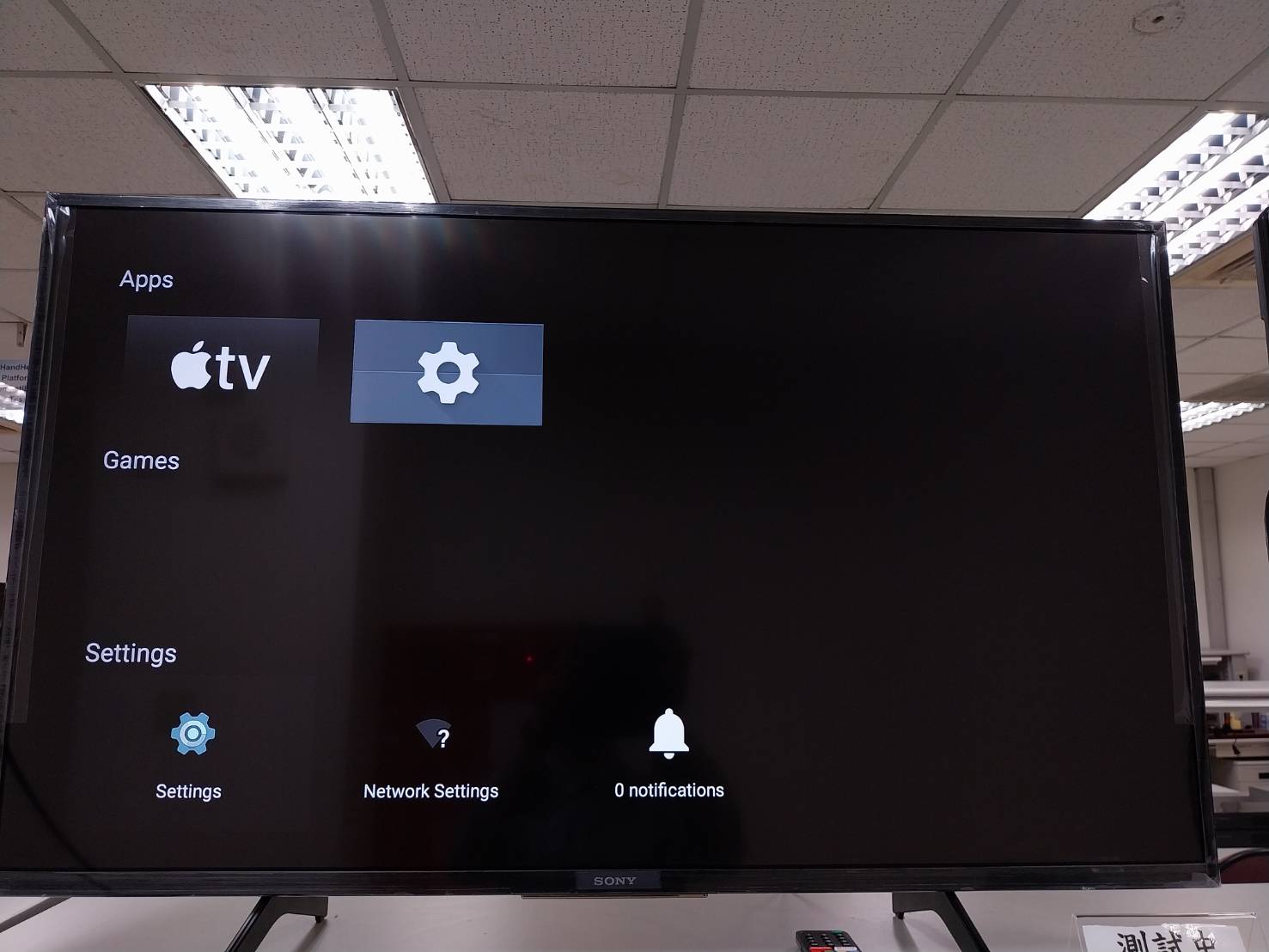

3. same box then change hdmi to SonyTV without reboot -> ok

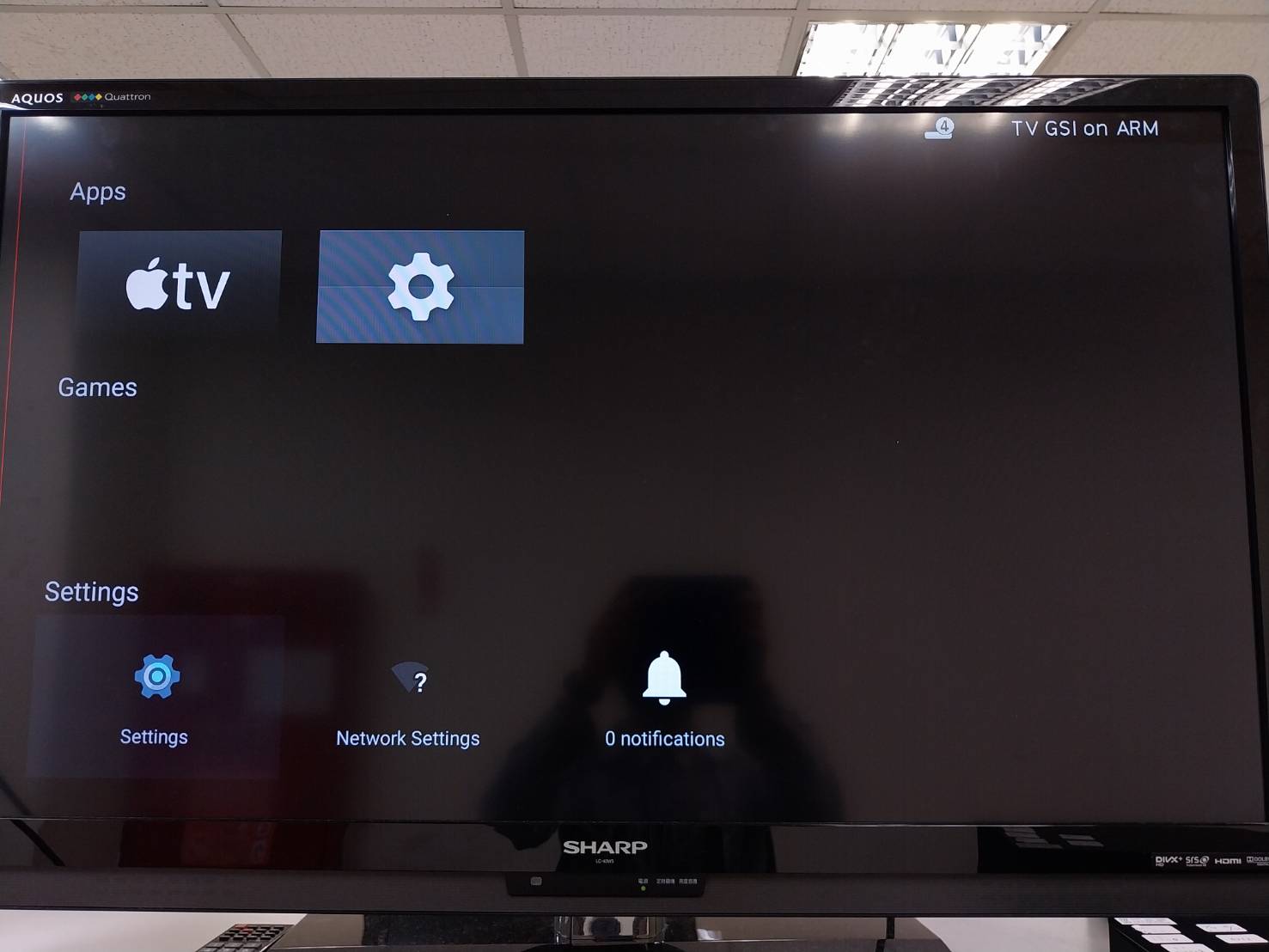

4. change hdmi to SharpTV without reboot -> ok
5. reboot device -> zoom in resolution (fail)

I attached the reproduce steps and dmesg, please check it with Amlogic.

Thanks,
Jason
dmesg.txt (103,966 bytes)
[    0.000000] Booting Linux on physical CPU 0x0
[    0.000000] Linux version 4.9.269-abk000c-537r42-20230425 (root@BuildHost) (gcc version 4.9.x 20150123 (prerelease) (GCC) ) #24 SMP PREEMPT Tue Apr 25 18:57:07 CST 2023
[    0.000000] Boot CPU: AArch64 Processor [410fd034]
[    0.000000] early_defendkey_para, base:8300000, size:100000
[    0.000000] __reserved_mem_alloc_size, start:0x0000000005000000, end:0x0000000007400000, len:36 MiB
[    0.000000] __reserved_mem_alloc_size, start:0x00000000bf800000, end:0x00000000c0000000, len:8 MiB
[    0.000000] Reserved memory: created DMA memory pool at 0x00000000b4400000, size 0 MiB
[    0.000000] cma: Reserved 8 MiB at 0x0000000097000000
[    0.000000] On node 0 totalpages: 786176
[    0.000000] DMA zone: 12284 pages used for memmap
[    0.000000] DMA zone: 0 pages reserved
[    0.000000] DMA zone: 786176 pages, LIFO batch:31
[    0.000000] psci: probing for conduit method from DT.
[    0.000000] psci: PSCIv1.0 detected in firmware.
[    0.000000] psci: Using standard PSCI v0.2 function IDs
[    0.000000] psci: Trusted OS migration not required
[    0.000000] psci: SMC Calling Convention v1.1
[    0.000000] percpu: Embedded 22 pages/cpu s49176 r8192 d32744 u90112
[    0.000000] pcpu-alloc: s49176 r8192 d32744 u90112 alloc=22*4096
[    0.000000] pcpu-alloc: [0] 0 [0] 1 [0] 2 [0] 3
[    0.000000] Detected VIPT I-cache on CPU0
[    0.000000] CPU features: enabling workaround for ARM erratum 845719
[    0.000000] Built 1 zonelists in Zone order, mobility grouping on.  Total pages: 773892
[    0.000000] Kernel command line: init=/init console=ttyS0,115200 no_console_suspend earlyprintk=aml-uart,0xff803000 ramoops.pstore_en=1 ramoops.record_size=0x8000 ramoops.console_size=0x4000 loglevel=1 phy_idx= hdr_policy=0 hdr_priority= otg_device=1 reboot_mode_android=normal logo=osd0,loaded,0x3d800000 fb_width=1920 fb_height=1080 display_bpp=16 outputmode=720p60hz vout=720p60hz,enable panel_type=lcd_1 lcd_ctrl=0x00000000 hdmitx=,rgb,8bit hdmimode=720p60hz hdmichecksum=0x00000000 dolby_vision_on=0 frac_rate_policy=1 hdmi_read_edid=1 cvbsmode=576cvbs osd_reverse=0 video_reverse=0 irq_check_en=0 ledsTrigger=1 androidboot.enableSystemReset=0 androidboot.enablePrivateRecovery=0 androidboot.socsecureboot=1 androidboot.selinux=enforcing androidboot.firstboot=0 jtag=disable defendkey=0x08300000,0x100000 androidboot.hardware=amlogic androidboot.bootloader=U-Boot 2015.01-ga0780d88a9 androidboot.build.expect.baseband=N/A androidboot.serialno=SKBFXYV11E55 mac=28:CD:C4:FE:EF:87 androidboot.mac=28
[    0.000000] hdmitx: hdmitx uboot phy_idx: 0
[    0.000000] am_vecm: boot hdr_policy: 0
[    0.000000] fb: osd0
[    0.000000] fb: loaded
[    0.000000] fb: 0x3d800000
[    0.000000] fb: logo_info.fb_width=1920
[    0.000000] fb: logo_info.fb_height=1080
[    0.000000] vout: 720p60hz
[    0.000000] vout: enable: 1
[    0.000000] lcd: panel_type: lcd_1
[    0.000000] lcd: lcd_ctrl: 0x00000000
[    0.000000] hdmitx: get hdmi checksum: 0x00000000
[    0.000000] get_dolby_on: 0
[    0.000000] vpp_axis_reverse: bootargs is 0
[    0.000000] DI: di_read_canvas_reverse: bootargs is 0.
[    0.000000] vdin_get_video_reverse: bootargs is 0.
[    0.000000] phlock_phase_config: bootargs is 0.
[    0.000000] uboot leds trigger: 1
[    0.000000] PID hash table entries: 4096 (order: 3, 32768 bytes)
[    0.000000] Dentry cache hash table entries: 524288 (order: 10, 4194304 bytes)
[    0.000000] Inode-cache hash table entries: 262144 (order: 9, 2097152 bytes)
[    0.000000] Memory: 2358620K/3144704K available (13246K kernel code, 1774K rwdata, 5024K rodata, 4800K init, 1368K bss, 138916K reserved, 647168K cma-reserved)
[    0.000000] Virtual kernel memory layout:
[    0.000000] modules : 0xffffff8000000000 - 0xffffff8008000000   (   128 MB)
[    0.000000] vmalloc : 0xffffff8008000000 - 0xffffffbebfff0000   (   250 GB)
[    0.000000] .text : 0xffffff8009080000 - 0xffffff8009d70000   ( 13248 KB)
[    0.000000] .rodata : 0xffffff8009d70000 - 0xffffff800a260000   (  5056 KB)
[    0.000000] .init : 0xffffff800a260000 - 0xffffff800a710000   (  4800 KB)
[    0.000000] .data : 0xffffff800a710000 - 0xffffff800a8cb808   (  1775 KB)
[    0.000000] .bss : 0xffffff800a8cb808 - 0xffffff800aa2194c   (  1369 KB)
[    0.000000] fixed   : 0xffffffbefe7fd000 - 0xffffffbefec00000   (  4108 KB)
[    0.000000] PCI I/O : 0xffffffbefee00000 - 0xffffffbeffe00000   (    16 MB)
[    0.000000] vmemmap : 0xffffffbf00000000 - 0xffffffc000000000   (     4 GB maximum)
[    0.000000] 0xffffffbf00004000 - 0xffffffbf03000000   (    47 MB actual)
[    0.000000] memory  : 0xffffffc000100000 - 0xffffffc0c0000000   (  3071 MB)
[    0.000000] SLUB: HWalign=64, Order=0-3, MinObjects=0, CPUs=4, Nodes=1
[    0.000000] Preemptible hierarchical RCU implementation.
[    0.000000] \x09Build-time adjustment of leaf fanout to 64.
[    0.000000] \x09RCU restricting CPUs from NR_CPUS=8 to nr_cpu_ids=4.
[    0.000000] RCU: Adjusting geometry for rcu_fanout_leaf=64, nr_cpu_ids=4
[    0.000000] NR_IRQS:64 nr_irqs:64 0
[    0.000000] irq_meson_gpio: 100 to 8 gpio interrupt mux initialized
[    0.000000] g12a_aoclkc_init: register ao clk ok!
[    0.000000] Meson chip version = RevE (28:E - 40:0)
[    0.000000] meson_g12a_sdemmc_init: register amlogic sdemmc clk
[    0.000000] meson_g12a_sdemmc_init: register amlogic sdemmc clk
[    0.000000] meson_g12a_gpu_init: register meson gpu clk
[    0.000000] meson_g12a_media_init: register meson media clk
[    0.000000] meson_g12a_misc_init: register amlogic g12a misc clks
[    0.000000] meson_g12a_misc_init: done.
[    0.000000] g12a_clkc_init initialization complete
[    0.000000] arm_arch_timer: Architected cp15 timer(s) running at 24.00MHz (phys).
[    0.000000] clocksource: arch_sys_counter: mask: 0xffffffffffffff max_cycles: 0x588fe9dc0, max_idle_ns: 440795202592 ns
[    0.000003] sched_clock: 56 bits at 24MHz, resolution 41ns, wraps every 4398046511097ns
[    0.000364] Console: colour dummy device 80x25
[    0.000375] Calibrating delay loop (skipped), value calculated using timer frequency.. 48.00 BogoMIPS (lpj=96000)
[    0.000383] pid_max: default: 32768 minimum: 301
[    0.000462] Security Framework initialized
[    0.000468] SELinux:  Initializing.
[    0.000500] SELinux:  Starting in permissive mode
[    0.000526] Mount-cache hash table entries: 8192 (order: 4, 65536 bytes)
[    0.000533] Mountpoint-cache hash table entries: 8192 (order: 4, 65536 bytes)
[    0.001230] ftrace: allocating 40607 entries in 159 pages
[    0.078079] sched-energy: CPU device node has no sched-energy-costs
[    0.089746] ASID allocator initialised with 65536 entries
[    0.125537] secmon: can't fine clear_range
[    0.174265] Detected VIPT I-cache on CPU1
[    0.174311] CPU1: Booted secondary processor [410fd034]
[    0.206308] Detected VIPT I-cache on CPU2
[    0.206335] CPU2: Booted secondary processor [410fd034]
[    0.238390] Detected VIPT I-cache on CPU3
[    0.238414] CPU3: Booted secondary processor [410fd034]
[    0.238499] Brought up 4 CPUs
[    0.238505] SMP: Total of 4 processors activated.
[    0.238512] CPU features: detected feature: 32-bit EL0 Support
[    0.238601] CPU: All CPU(s) started at EL2
[    0.238627] alternatives: patching kernel code
[    0.240402] devtmpfs: initialized
[    0.270704] clocksource: jiffies: mask: 0xffffffff max_cycles: 0xffffffff, max_idle_ns: 7645041785100000 ns
[    0.270721] futex hash table entries: 1024 (order: 4, 65536 bytes)
[    0.270831] pinctrl core: initialized pinctrl subsystem
[    0.271883] NET: Registered protocol family 16
[    0.276141] schedtune: init normalization constants...
[    0.276146] schedtune: no energy model data
[    0.276150] schedtune: disabled!
[    0.294483] cpuidle: using governor menu
[    0.294611] register canvas platform driver
[    0.294648] register rdma platform driver
[    0.299011] vdso: 2 pages (1 code @ ffffff8009d77000, 1 data @ ffffff800a715000)
[    0.299026] hw-breakpoint: found 6 breakpoint and 4 watchpoint registers.
[    0.299474] DMA: preallocated 256 KiB pool for atomic allocations
[    0.299668] clkmsr: clkmsr: driver init
[    0.299673] codec_mm_module_init
[    0.299707] media_configs_system_init
[    0.299995] aml_watch_point_probe, in, wp:4
[    0.300381] pstore: using zlib compression
[    0.300416] console [pstore-1] enabled
[    0.300609] pstore: Registered ramoops as persistent store backend
[    0.300615] ramoops: attached 0x100000@0x7400000, ecc: 0/0
[    0.302931] meson_mhu: mhu ffffffc093556810 to scp done 0x1
[    0.303154] aml_iomap: amlogic iomap probe done
[    0.303795] vpu: driver version: v20200616(7-g12a)
[    0.303803] vpu: load vpu_clk: 666666667Hz(7)
[    0.303988] vpu: clktree_init
[    0.304057] vpu: vpu_probe OK
[    0.309179] clkmsr: msr_clk_reg0=ffffff800817a004,msr_clk_reg2=ffffff800817c00c
[    0.309190] clkmsr: msr_ring_reg0=ffffff800817e5fc
[    0.309197] clkmsr: failed to create debugfs directory
[    0.312210] audio_clocks: audio_clocks_probe done
[    0.316538] aml_vdac_config_probe: cpu_id:4, name:meson-g12ab-vdac
[    0.316731] aml_vdac_probe: ok
[    0.316920] canvas_probe reg=00000000ff638000,size=2000
[    0.316940] canvas maped reg_base =ffffff80081aa000
[    0.325542] rdma_probe,cpu_type:0, ver:0, len:8,rdma_table_size:131072
[    0.325754] rdma_register, rdma_table_addr ffffff80082d1000 rdma_table_addr_phy 97040000 reg_buf ffffffc093740000
[    0.325760] rdma_register success, handle 1 table_size 131072
[    0.325765] set_rdma_handle video rdma handle = 1.
[    0.325793] classs created ok
[    0.325806] classs file created ok
[    0.326759] aml_snd_reg_map[0], reg:ff640000, size:2000
[    0.326778] aml_snd_reg_map[1], reg:ff642000, size:2000
[    0.326796] aml_snd_reg_map[2], reg:ff64a000, size:2000
[    0.326814] aml_snd_reg_map[3], reg:ff642800, size:1800
[    0.326836] aml_snd_reg_map[4], reg:ffd01000, size:1000
[    0.326841] amlogic auge_snd_iomap probe done
[    0.329228] cvbs_out: cvbsout_probe, cpu_id:3,name:meson-g12a-cvbsout
[    0.329367] cvbs_out: clk path:0x0
[    0.329377] cvbs_out: find performance_pal config
[    0.329396] cvbs_out: find performance_ntsc config
[    0.329414] cvbs_out: register cvbs module server ok
[    0.329419] cvbs_out: register cvbs module vout2 server ok
[    0.329426] cvbs_out: chrdev devno 263192576 for disp
[    0.329622] cvbs_out: create cdev cvbs
[    0.329627] cvbs_out: cvbsout_probe OK
[    0.330356] codec_mm codec_mm: assigned reserved memory node linux,codec_mm_cma
[    0.330439] codec_mm codec_mm: assigned reserved memory node linux,codec_mm_cma
[    0.330444] codec_mm_probe ok
[    0.624199] SCSI subsystem initialized
[    0.624476] usbcore: registered new interface driver usbfs
[    0.624546] usbcore: registered new interface driver hub
[    0.624598] usbcore: registered new device driver usb
[    0.624702] Linux video capture interface: v2.00
[    0.624776] pps_core: LinuxPPS API ver. 1 registered
[    0.624781] pps_core: Software ver. 5.3.6 - Copyright 2005-2007 Rodolfo Giometti <giometti@linux.it>
[    0.624808] PTP clock support registered
[    0.625386] secmon: reserve_mem_size:0x2300000
[    0.625471] secmon secmon: assigned reserved memory node linux,secmon
[    0.626378] secmon: get page:ffffffbf00140000, 5000
[    0.626388] secmon: share in base: 0xffffffc0050fe000, share out base: 0xffffffc0050ff000
[    0.626393] secmon: phy_in_base: 0x50fe000, phy_out_base: 0x50ff000
[    0.627077] fb: osd_init_module
[    0.627519] fb: viu vsync irq: 34
[    0.627538] fb: viu2 vsync irq: 46
[    0.627555] fb: rdma irq: 45
[    0.627917] fb: osd_rdma_init: rdma_table p=0x97060000,op=0x97060000 , v=0xffffff80081cd000
[    0.627948] rdma_register, rdma_table_addr ffffff80081f1000 rdma_table_addr_phy 97061000 reg_buf ffffffc0937b0000
[    0.627954] rdma_register success, handle 2 table_size 4096
[    0.627958] fb: osd_rdma_init:osd rdma handle = 2.
[    0.628061] fb: mem_size: 0x800000
[    0.628065] fb: mem_size: 0x1980000
[    0.628069] fb: mem_size: 0x100000
[    0.628073] fb: mem_size: 0x100000
[    0.628078] fb: mem_size: 0x800000
[    0.628143] meson-fb meson-fb: assigned reserved memory node linux,meson-fb
[    0.628149] fb: reserved memory base:0x00000000bf800000, size:800000
[    0.628344] fb: init fbdev bpp is:32
[    0.629887] fb: set osd0 reverse as NONE
[    0.633930] fb: osd probe OK
[    0.634761] hdmitx: system: Ver: 20210902
[    0.634899] hdmitx: system: hpd irq = 33, viu1_vsync = 34
[    0.635642] vpu: switch_vpu_mem_pd: unsupport vpu mod: 63
[    0.635669] hdmitx: hw: alread display in uboot 0x4
[    0.635700] hdmitx: hw: avmute set to 1
[    1.016506] hdmitx: edid: EDID Parser:
[    1.016509] hdmitx: edid: set default vic 720p60hz
[    1.016511] hdmitx: set fallback mode
[    1.016522] hdmitx: edid: raw data are all zeroes
[    1.016532] hdmitx: hdmitx_uboot_audio_en[606] data = 0x1f
[    1.016537] hdmitx: system: fmt_attr rgb,8bit
[    1.016647] hdmitx: hdmitx_set_uevent[223] hdmitx_hdcppwr=1 0
[    1.017042] hdmitx: hdmitx: get vic 4 cscd rgb,8bit
[    1.017050] hdmitx: hdmitx: mode name 1280x720p60hz
[    1.017067] hdmitx: hdmitx: tmds clock 74
[    1.017072] hdmitx: hdmitx: act clock: 74
[    1.017082] hdmitx: system: irq 80000002 0
[    1.017263] hdmitx: system: plugin
[    1.017641] vout sys: aml_vs_probe OK
[    1.018087] vout: error: dummy_venc_clktree_probe: get enci_top_gate error
[    1.018333] vout: dummy_venc_probe OK
[    1.018641] vout: fr_policy:0
[    1.019014] hdmitx: hdmitx_set_current_vmode[5866]
[    1.019021] hdmitx: system: recalc before 720p60hz 60 1, frac 0
[    1.019028] hdmitx: system: recalc after 720p60hz 2997 50, frac 1
[    1.019032] hdmitx: alread display in uboot
[    1.019048] hdmitx: system: update rx hdr info 0
[    1.019054] vout: init mode 720p60hz set ok
[    1.019060] fb: current vmode=720p60hz, cmd: 0x60000
[    1.019066] vout sys: update date: 0x0bb50032
[    1.019070] vout: aml_vout_probe OK
[    1.019644] chip type:0x28
[    1.019693] bytes_per_cycle:16, reg:0
[    1.020150] MEMORY:[100000+bff00000]
[    1.020158] ramdump_probe, storage device:data
[    1.020162] NO valid ramdump args:0 0
[    1.020179] ramdump_probe, set sticky to 8c00
[    1.020692] Advanced Linux Sound Architecture Driver Initialized.
[    1.021234] Bluetooth: Core ver 2.22
[    1.021264] NET: Registered protocol family 31
[    1.021268] Bluetooth: HCI device and connection manager initialized
[    1.021281] Bluetooth: HCI socket layer initialized
[    1.021291] Bluetooth: L2CAP socket layer initialized
[    1.021302] Bluetooth: SCO socket layer initialized
[    1.032641] clocksource: Switched to clocksource arch_sys_counter
[    1.112595] VFS: Disk quotas dquot_6.6.0
[    1.112682] VFS: Dquot-cache hash table entries: 512 (order 0, 4096 bytes)
[    1.125630] dtv_dmd:[amldtvdemod..]aml_dtvdemod_init.
[    1.126404] NET: Registered protocol family 2
[    1.150616] TCP established hash table entries: 32768 (order: 6, 262144 bytes)
[    1.150885] TCP bind hash table entries: 32768 (order: 7, 524288 bytes)
[    1.151388] TCP: Hash tables configured (established 32768 bind 32768)
[    1.151500] UDP hash table entries: 2048 (order: 4, 65536 bytes)
[    1.151579] UDP-Lite hash table entries: 2048 (order: 4, 65536 bytes)
[    1.151875] NET: Registered protocol family 1
[    1.151909] PCI: CLS 0 bytes, default 64
[    1.154160] aml_wifi wifi: [wifi_dev_probe] no interrupt pin
[    1.154170] aml_wifi wifi: [wifi_dev_probe] no power_on_pin
[    1.156595] Trying to unpack rootfs image as initramfs...
[    1.197045] Freeing initrd memory: 1100K
[    1.201935] hw perfevents: clusterb_enabled = 0
[    1.201946] hw perfevents: cpumasks 0xf, 0x0
[    1.201980] hw perfevents: cluster A irq = 10
[    1.202084] hw perfevents: enabled with armv8_pmuv3 PMU driver, 7 counters available
[    1.205526] audit: initializing netlink subsys (disabled)
[    1.205630] audit: type=2000 audit(1.148:1): initialized
[    1.206849] workingset: timestamp_bits=45 max_order=20 bucket_order=0
[    1.220821] exFAT: Version 1.2.9
[    1.220993] Registering sdcardfs 0.1
[    1.221462] ntfs: driver 2.1.32 [Flags: R/O].
[    1.221837] fuse init (API version 7.26)
[    1.222784] SELinux:  Registering netfilter hooks
[    1.227284] NET: Registered protocol family 38
[    1.227408] Key type asymmetric registered
[    1.227415] Asymmetric key parser 'x509' registered
[    1.227740] Block layer SCSI generic (bsg) driver version 0.4 loaded (major 242)
[    1.227749] io scheduler noop registered (default)
[    1.227970] io scheduler cfq registered
[    1.240113] random: fast init done
[    1.240162] random: crng init done
[    1.240564] Unable to detect cache hierarchy for CPU 0
[    1.252856] brd: module loaded
[    1.266756] loop: module loaded
[    1.267467] zram: Added device: zram0
[    1.267658] mtdoops: mtd device (mtddev=name/number) must be supplied
[    1.268791] libphy: Fixed MDIO Bus: probed
[    1.269329] tun: Universal TUN/TAP device driver, 1.6
[    1.269336] tun: (C) 1999-2004 Max Krasnyansky <maxk@qualcomm.com>
[    1.270282] tx_amp_src not setup
[    1.270335] no rst_mask setting
[    1.270342] default enet type as 0
[    1.270348] read auto_cali_idx fail
[    1.270357] Not set  cali_val for REG1
[    1.270970] meson6-dwmac ff3f0000.ethernet: no reset control found
[    1.270979] stmmac - user ID: 0x11, Synopsys ID: 0x37
[    1.270983] Ring mode enabled
[    1.270989] DMA HW capability register supported
[    1.270995] Normal descriptors
[    1.271000] RX Checksum Offload Engine supported
[    1.271004] \x09COE Type 2
[    1.271008] TX Checksum insertion supported
[    1.271012] Wake-Up On Lan supported
[    1.271075] eth%d: device MAC address 28:cd:c4:fe:ef:87
[    1.271079] Enable RX Mitigation via HW Watchdog Timer
[    1.274512] libphy: stmmac: probed
[    1.274525] eth%d: PHY ID 001cc916 at 0 IRQ POLL (stmmac-0:00) active
[    1.274531] eth%d: PHY ID 001cc916 at 1 IRQ POLL (stmmac-0:01)
[    1.274952] hdmitx: edid: EDID Parser:
[    1.274956] hdmitx: edid: set default vic 720p60hz
[    1.274958] hdmitx: set fallback mode
[    1.274971] hdmitx: edid: raw data are all zeroes
[    1.274979] hdmitx: system: update physical size: 16 9
[    1.274987] hdmitx: hw: set audio
[    1.274992] hdmitx: hw: hdmitx tx_aud_src = 0
[    1.275008] hdmitx: fs = 3, cd = 4, tmds_clk = 74176
[    1.275014] hdmitx: hw: aud_n_para = 11648
[    1.275025] hdmitx: hw: set channel status
[    1.275043] hdmitx: hw: [0x10e3] = 0x1f
[    1.275067] hdmitx: audio: Audio Type: PCM
[    1.275106] hdmitx: hdmitx_set_uevent[223] hdmitx_hpd=1 0
[    1.275129] hdmitx: hdmitx_set_uevent[223] hdmitx_audio=1 0
[    1.276234] PPP generic driver version 2.4.2
[    1.276515] PPP BSD Compression module registered
[    1.276523] PPP Deflate Compression module registered
[    1.276545] PPP MPPE Compression module registered
[    1.276552] NET: Registered protocol family 24
[    1.276583] PPTP driver version 0.8.5
[    1.277105] usbcore: registered new interface driver r8152
[    1.277190] usbcore: registered new interface driver asix
[    1.277288] usbcore: registered new interface driver ax88179_178a
[    1.277357] usbcore: registered new interface driver cdc_ether
[    1.277428] usbcore: registered new interface driver net1080
[    1.277497] usbcore: registered new interface driver cdc_subset
[    1.277564] usbcore: registered new interface driver zaurus
[    1.277657] usbcore: registered new interface driver cdc_ncm
[    1.278479] ehci_hcd: USB 2.0 'Enhanced' Host Controller (EHCI) Driver
[    1.278488] ehci-pci: EHCI PCI platform driver
[    1.279156] usbcore: registered new interface driver usb-storage
[    1.279309] usbcore: registered new interface driver usbserial
[    1.279836] mousedev: PS/2 mouse device common for all mice
[    1.279936] usbcore: registered new interface driver xpad
[    1.280089] i2c /dev entries driver
[    1.280131] uvcvideo: Unable to create debugfs directory
[    1.280222] usbcore: registered new interface driver uvcvideo
[    1.280227] USB Video Class driver (1.1.1)
[    1.280233] md: linear personality registered for level -1
[    1.280703] device-mapper: ioctl: 4.35.0-ioctl (2016-06-23) initialised: dm-devel@redhat.com
[    1.280899] device-mapper: verity-avb: AVB error handler initialized with vbmeta device: /dev/block/vbmeta
[    1.284535] hidraw: raw HID events driver (C) Jiri Kosina
[    1.285311] usbcore: registered new interface driver usbhid
[    1.285318] usbhid: USB HID core driver
[    1.285927] ashmem: initialized
[    1.287260] meson_cpufreq_init: ignor dsu clk!
[    1.287268] meson_cpufreq_init: ignor dsu pre parent clk!
[    1.287314] value of voltage_tolerance 0
[    1.287320] meson_cpufreq_init:don't find the node <dynamic_gp1_clk>
[    1.287325] value of gp1_clk_target 0
[    1.287590] cpu cpu0: meson_cpufreq_init: CPU 0 initialized
[    1.289410] ff803000.serial: clock gate not found
[    1.289488] meson_uart ff803000.serial: ==uart0 reg addr = ffffff80084ef000
[    1.289556] ff803000.serial: ttyS0 at MMIO 0xff803000 (irq = 22, base_baud = 1500000) is a meson_uart
[    1.289577] meson_uart ff803000.serial: ttyS0 use xtal(24M) 24000000 change 0 to 115200
[    1.289663] console [ttyS0] enabled
[    1.290441] meson_uart ffd24000.serial: ==uart1 reg addr = ffffff80084f1000
[    1.290504] ffd24000.serial: ttyS1 at MMIO 0xffd24000 (irq = 32, base_baud = 1500000) is a meson_uart
[    1.292050] amlogic-new-usb2-v2 ffe09000.usb2phy: USB2 phy probe:phy_mem:0xffe09000, iomap phy_base:0xffffff80084f3000
[    1.292474] amlogic-new-usb3-v2 ffe09080.usb3phy: set of GPIOC_7(459) as OTG ID pin
[    1.292511] amlogic-new-usb3-v2 ffe09080.usb3phy: ok to acquire gpio
[    1.292594] amlogic-new-usb3-v2 ffe09080.usb3phy: USB3 phy probe:phy_mem:0xffe09080, iomap phy_base:0xffffff8008601080
[    1.295669] failed to create debugfs directory
[    1.295679] failed to create debugfs directory
[    1.296352] aml_dma ff63e000.aml_dma: Aml dma
[    1.298216] aml_aes_dma ff63e000.aml_dma:aml_aes: Aml AES_dma
[    1.299506] aml_tdes_dma ff63e000.aml_dma:aml_tdes: Aml TDES_dma
[    1.300159] aml_sha_dma ff63e000.aml_dma:aml_sha: Aml SHA1/SHA224/SHA256 dma
[    1.303477] ion_dev soc:ion_dev: assigned reserved memory node linux,ion-dev
[    1.303576] ion-dev: ion fb_mem_init size=0x0x0000000003400000, paddr=0x0x00000000b4400000
[    1.303581] ion_dev soc:ion_dev: assigned reserved memory node linux,ion-fb
[    1.303584] ion-dev: ion_fb_region (1), mem init done
[    1.303832] ion-dev: add heap type:0 id:0
[    1.303898] ion-dev: add heap type:5 id:5
[    1.303903] ion-dev: add heap type:4 id:4
[    1.321524] ion-dev: add heap type:5 id:6
[    1.321533] ion-dev: dev_ion_probe, create 4 heaps
[    1.321826] ge2d: ge2d_init_module
[    1.322830] ge2d: ge2d clock is 499 MHZ
[    1.322899] ge2d: reserved mem is not used
[    1.322966] ge2d: ge2d start monitor
[    1.323332] meson_ion_delay_alloc call init
[    1.324178] resman: amresource_mgr init success
[    1.324445] new arch is :0.
[    1.324578] [tsync_pcr_init]init success.
[    1.324939] amvideom vsync irq: 34, cpu_type:1
[    1.324986] create_ge2d_work_queue video task ok
[    1.325792] create_video_receiver video_render.0  ffffffc059788000, path_id:2 success
[    1.325799] create_video_receiver video_render.1  ffffffc059788800, path_id:3 success
[    1.325839] hdmitx: hdcp: hdmitx_hdcp_init
[    1.326659] vout: vout2: fr_policy:0
[    1.327164] vout: vout2: clktree_init
[    1.327307] vout: vout2: init mode null set ok
[    1.327311] vout: vout2: aml_vout2_probe OK
[    1.327493] DI: di_module_init ok.
[    1.327795] dim:dim_module_init
[    1.328055] dim:dim_probe:
[    1.328079] dim:dim_probe: major 509
[    1.328297] di_que_alloc:ok
[    1.328315] di_que_alloc:ok
[    1.328321] di_que_alloc:ok
[    1.328331] di_que_alloc:ok
[    1.328343] dim:qbuf_int:qbuf_blk:end
[    1.328354] dim:qbuf_int:qbuf_mem:end
[    1.328363] dim:qbuf_int:qbuf_pat:end
[    1.328372] dim:qbuf_int:qbuf_iat:end
[    1.328380] dim:qbuf_int:qbuf_blk:end
[    1.328388] dim:qbuf_int:qbuf_mem:end
[    1.328395] dim:qbuf_int:qbuf_pat:end
[    1.328403] dim:qbuf_int:qbuf_iat:end
[    1.328416] dim:qbuf_int:qbuf_blk:end
[    1.328424] dim:qbuf_int:qbuf_mem:end
[    1.328430] dim:qbuf_int:qbuf_pat:end
[    1.328437] dim:qbuf_int:qbuf_iat:end
[    1.328444] dim:qbuf_int:qbuf_blk:end
[    1.328452] dim:qbuf_int:qbuf_mem:end
[    1.328459] dim:qbuf_int:qbuf_pat:end
[    1.328466] dim:qbuf_int:qbuf_iat:end
[    1.328471] dim:di_cfg_top_init_val:
[    1.328474] dim:di_cfg_top_init_val:finish
[    1.328494] dev_vframe_init finish
[    1.328721] dim:match name: dim_g12a:id[16]:ver[0]
[    1.328827] dim:no reserved mem.
[    1.328831] dim:di_cfg_top_dts
[    1.328836] dim:\x09flag_cma:4
[    1.328848] dim:di_cfg_top_dts:en_dat:0x0
[    1.328878] dim:pre_irq:51
[    1.328889] dim:post_irq:52
[    1.328893] DI: dim_probe allocate rdma channel 0.
[    1.328904] dim:err:dim_get_vpu_clkb: get clk vpu error.
[    1.328909] DI: vpu clkb <334000000, 667000000>
[    1.328959] dim:vpu clkb =666666656.
[    1.329069] DI: afbc_prob:ver[2],_g12a
[    1.329096] DI: support multi decoding 0xdf~0xe0~0xe1.
[    1.329246] dim:dcntr_prob
[    1.329250] .
[    1.329371] .
[    1.329451] dim_probe:ok
[    1.329558] dim:dim_module_init finish
[    1.329566] dil:dil_init.
[    1.329946] dil:dil_init ok.
[    1.329951] dimv3:dimv3_module_init
[    1.330205] dimv3:dimv3_module_init finish
[    1.330706] rdma_register, rdma_table_addr ffffff8008627000 rdma_table_addr_phy 97062000 reg_buf ffffffc0596eb000
[    1.330711] rdma_register success, handle 3 table_size 512
[    1.331115] vdin vdin1: assigned reserved memory node linux,vdin1_cma
[    1.331123] chip:vdin hw_ver:0
[    1.331168] get fclk_div5 err
[    1.331173] vdin_drv_probe: vdin cannot get msr clk !!!
[    1.331283] vdin_drv_probe: driver initialized ok
[    1.331482] vdin_drv_init: vdin driver init done
[    1.331959] [viuin..]viuin_init_module done
[    1.332202] amvdec_csi module: init.
[    1.332211] amvdec_csi_init_module:major 507
[    1.332473] amvdec_csi module: init. ok
[    1.332729] amlvideo-000: V4L2 device registered as video10
[    1.332735] amlvid:info: v4l2_dev.name=:amlvideo-001
[    1.332885] amlvideo-001: V4L2 device registered as video23
[    1.333564] amlvideo2: V4L2 device registered as video12
[    1.334034] Reserved memory: failed to init DMA memory pool at 0x00000000b4400000, size 0 MiB
[    1.334050] PPMGRDRV: info: ppmgr_dev major:506
[    1.335098] ionvideo-000: V4L2 device registered as video13
[    1.336195] ionvideo-008: V4L2 device registered as video21
[    1.336646] picdec: picdec_driver_probe called.
[    1.336978] picdec: probe of picdec failed with error -22
[    1.337247] videosync_create_instance dev_s ffffffc05972b400,dev_s->dev ffffffc0596dd480
[    1.337252] videosync_create_instance reg videosync.0
[    1.337355] videosync_thread started
[    1.337715] v4lvideo-000: V4L2 device registered as video30
[    1.338806] v4lvideo-008: V4L2 device registered as video38
[    1.338815] video_composer_module_init_1
[    1.339237] video_composer_probe_3.1:ports[i].name=video_composer.0, i=0
[    1.339360] video_composer_probe_3.1:ports[i].name=video_composer.1, i=1
[    1.339468] video_composer_probe num=2
[    1.339647] videotunnel init
[    1.340146] aml_vecm_init:module init
[    1.340444] VECM probe start
[    1.340815] vlock_status_init vlock_en:1
[    1.340844] pixel_probe: vpp probe func error!
[    1.340967] aml_vecm_probe: ok
[    1.341033] amdolby_vision_init:module init
[    1.341416] \x0a amdolby_vision probe start & ver: 20181220
[    1.341424] \x0a cpu_id=2 tvmode=0
[    1.341639] dolby_vision_init_receiver(dvel)
[    1.341654] dolby_vision_init_receiver: dvel
[    1.341857] amdolby_vision_probe: ok
[    1.341872] g12 dovi disable in uboot
[    1.341945] prime_sl module init
[    1.342635] vm_init .
[    1.343663] meson-mmc: mmc driver version: 3.02, 2017-05-15: New Emmc Host Controller
[    1.345116] meson-mmc: emmc: fixdiv calc done: adj = 2d2000
[    1.351332] hdmitx: hdmitx_set_drm_pkt: tf=1, cf=1, colormetry=0
[    1.382462] meson-mmc: meson_mmc_probe() : success!
[    1.387793] aml_vrtc rtc: rtc core: registered aml_vrtc as rtc0
[    1.387995] input: aml_vkeypad as /devices/platform/rtc/input/input0
[    1.389964] cectx ff80023c.aocec: mode is 1b6
[    1.390147] cectx ff80023c.aocec: mode is 1b6
[    1.390336] input: cec_input as /devices/virtual/input/input1
[    1.390488] cectx ff80023c.aocec: not find 'port_num'
[    1.390500] get A default state
[    1.390562] cectx ff80023c.aocec: no clock regs
[    1.390577] cectx ff80023c.aocec: ao enable:int mask:0x0
[    1.391380] cectx ff80023c.aocec: ao_ceca_init
[    1.391386] cectx ff80023c.aocec: clear all logical addr 0
[    1.392878] cectx ff80023c.aocec: clear all logical addr 0
[    1.393916] cectx ff80023c.aocec: wakeup_reason:0x0
[    1.394000] cectx ff80023c.aocec: wakeup_data: 0x0
[    1.394009] cectx ff80023c.aocec: ao enable:int mask:0x6
[    1.395133] unifykey: no efuse-version set, use default value: -1
[    1.395576] unifykey: aml_unifykeys_init done!
[    1.395718] meson ts init
[    1.395820] tsensor id: 0
[    1.396099] tsensor trim info: 0xfa00806d!
[    1.396103] tsensor hireboot: 0xc0ff2aa0
[    1.396210] meson ts init
[    1.396232] tsensor id: 1
[    1.396333] tsensor trim info: 0xfa008078!
[    1.396336] tsensor hireboot: 0xc0ff2ab0
[    1.396683] audio_dsp: [dsp]register dsp to char divece(257)
[    1.396988] amaudio: amaudio: driver amaudio init!
[    1.397409] amaudio: amaudio_init - amaudio: driver amaudio succuess!
[    1.398409] amlkaraoke init success!
[    1.398689] sysled: module init
[    1.399137] meson_wdt ffd0f0d0.watchdog: start watchdog
[    1.399144] meson_wdt ffd0f0d0.watchdog: create hrtimer for watch dog
[    1.399488] meson_wdt ffd0f0d0.watchdog: AML Watchdog Timer probed done
[    1.400389] not get gpio_en
[    1.400934] input: input_btrcu as /devices/platform/bt-dev/input/input2
[    1.402216] dmc_monitor_probe
[    1.402498] page_trace_module_init, create sysfs failed
[    1.403396] atv_demod: aml_atvdemod_init: OK, atv demod version: V2.28.
[    1.403650] defendkey ff630218.defendkey: defendkey_devno:1f000000
[    1.403890] defendkey ff630218.defendkey: defendkey: device defendkey created ok
[    1.404667] bl40: bl40 probe
[    1.404992] aml_dvb_extern_init: OK, version: V1.04.
[    1.405353] usbcore: registered new interface driver snd-usb-audio
[    1.406960] aml_codec_T9015 ff632000.t9015: aml_T9015_audio_codec_probe
[    1.406998] T9015 acodec used by auge, tdmout:1
[    1.407377] tlv320 adc3101_i2c_probe ...
[    1.407472] failed to get slot_number, set it default
[    1.407476] adc3101_i2c_probe i2c:ffffffc059728000
[    1.407488] adc3101_i2c_probe 18 done
[    1.409580] asoc debug: aml_audio_controller_probe-130
[    1.410492] aml_tdm_platform_probe, tdm ID = 0, lane_cnt = 4
[    1.410535] snd_tdm ff642000.audiobus:tdma: lane_mask_out = 1, lane_oe_mask_out = 0
[    1.410613] snd_tdm ff642000.audiobus:tdma: neither mclk_pad nor mclk2pad set
[    1.410744] aml_tdm_platform_probe(), share en = 1
[    1.410750] No channel mask node Channel_Mask
[    1.410926] aml_tdm_platform_probe, tdm ID = 1, lane_cnt = 4
[    1.411008] TDM id 1 samesource_sel:3
[    1.411018] snd_tdm ff642000.audiobus:tdmb: lane_mask_out = 1, lane_oe_mask_out = 0
[    1.411209] TDM id 1 output clk enable:1
[    1.411241] aml_tdm_platform_probe(), share en = 1
[    1.411245] No channel mask node Channel_Mask
[    1.411256] TDM id 1 tuning clk enable:1
[    1.411297] aml_tdm_platform_probe, tdm ID = 2, lane_cnt = 4
[    1.411323] TDM id 2 i2s2hdmi:1
[    1.411331] snd_tdm ff642000.audiobus:tdmc: lane_mask_out = f, lane_oe_mask_out = 0
[    1.411382] snd_tdm ff642000.audiobus:tdmc: aml_tdm_get_pins error!
[    1.411386] aml_tdm_platform_probe(), share en = 1
[    1.411389] No channel mask node Channel_Mask
[    1.412247] aml_spdif_platform_probe, spdif ID = 0
[    1.412501] snd_spdif ff642000.audiobus:spdif: aml_spdif_get_pins error!
[    1.412658] SPDIF id 0 asrc_id:0 auto_asrc:0
[    1.412749] Spdif id 0 tuning clk enable:1
[    1.412775] aml_spdif_platform_probe, register soc platform
[    1.412825] aml_spdif_platform_probe, spdif ID = 1
[    1.412914] aml_spdif_platform_probe, register soc platform
[    1.413890] default set lane_mask_in as all lanes.
[    1.413897] aml_pdm_platform_probe pdm filter mode from dts:1
[    1.413901] aml_pdm_platform_probe pdm train sample count from dts:-1
[    1.413918] aml_pdm_platform_probe, register soc platform
[    1.414612] audio-ddr-manager ff642000.audiobus:ddr_manager: 0, irqs toddr 24, frddr 27
[    1.414640] audio-ddr-manager ff642000.audiobus:ddr_manager: 1, irqs toddr 25, frddr 28
[    1.414665] audio-ddr-manager ff642000.audiobus:ddr_manager: 2, irqs toddr 26, frddr 29
[    1.415299] \x09datain_src:4, datain_chnum:4, datain_chumask:f
[    1.415304] \x09datalb_src:1, datalb_chnum:2, datalb_chmask:3
[    1.415307] \x09datain_lane_mask:0x5, datalb_lane_mask:0x1
[    1.415311] datalb_format: 1, chmask for lanes: 0x3
[    1.415651] loopback_platform_probe, p_loopback->id:0 register soc platform
[    1.416187] audiolocker_platform_probe
[    1.416765] resample_platform_probe
[    1.416897] resample_clk_set, resample_pll:24575987, sclk:12287994, clk:12287994
[    1.416903] audio_ddr_mngr: aml_set_resample(), toddr NULL
[    1.416907] resample id = 0, new resample = 0, resample_module = 4
[    1.418225] Register vad
[    1.419630] adc3101_codec_probe ...
[    1.422851] adc3101_codec_probe done...
[    1.429561] aml_spdif_component_probe
[    1.429607] aml_spdif_component_probe
[    1.505145] clear:8cc00000, free:8cc00000, tick:457650 us
[    1.514181] meson-mmc: emmc: clk 199999997 tuning start
[    1.519241] meson-mmc: emmc: adj_win: < 0 1 3 4 >
[    1.519246] meson-mmc: step:4, delay1:0x4104104, delay2:0x4004104
[    1.523074] meson-mmc: emmc: adj_win: < 0 1 3 4 >
[    1.523079] meson-mmc: step:8, delay1:0x8208208, delay2:0x8008208
[    1.527673] meson-mmc: emmc: adj_win: < 0 1 3 4 >
[    1.527677] meson-mmc: step:12, delay1:0xc30c30c, delay2:0xc00c30c
[    1.531534] meson-mmc: emmc: adj_win: < 0 1 3 4 >
[    1.531538] meson-mmc: step:16, delay1:0x10410410, delay2:0x10010410
[    1.535477] meson-mmc: emmc: adj_win: < 0 1 3 4 >
[    1.535481] meson-mmc: step:20, delay1:0x14514514, delay2:0x14014514
[    1.540319] meson-mmc: emmc: adj_win: < 0 1 2 4 >
[    1.540324] meson-mmc: left:3, right:0, mid:4, size:4
[    1.540328] meson-mmc: step:0, delay1:0x0, delay2:0x0
[    1.540332] meson-mmc: emmc: sd_emmc_regs->gclock=0x10000345,sd_emmc_regs->gadjust=0x2000
[    1.540432] emmc: new HS200 MMC card at address 0001
[    1.540436] emmc: clock 199999997, 8-bit-bus-width\x0a
[    1.544914] mmcblk0: emmc:0001 8GTF4R 7.28 GiB
[    1.549085] mmcblk0boot0: emmc:0001 8GTF4R partition 1 4.00 MiB
[    1.553257] mmcblk0boot1: emmc:0001 8GTF4R partition 2 4.00 MiB
[    1.557417] mmcblk0rpmb: emmc:0001 8GTF4R partition 3 512 KiB
[    1.558242] meson-mmc: Enter aml_emmc_partition_ops
[    1.558793] meson-mmc: [mmc_read_partition_tbl] mmc read partition OK!
[    1.558796] meson-mmc: add_emmc_partition
[    1.560870] card key: card_blk_probe.
[    1.560875] emmc_key_init:494 emmc key lba_start:0x12020,lba_end:0x12422
[    1.563508] calc 0, store 0
[    1.563514] cpy 1 is not valid
[    1.565902] calc 60e9955c58b, store 0
[    1.565905] cpy 0 is not valid
[    1.565915] emmc key: emmc_key_init:519 ok.
[    1.565919] meson-mmc: amlmmc_dtb_init: register dtb chardev
[    1.569535] meson-mmc: total valid 2
[    1.569731] meson-mmc: amlmmc_dtb_init: register dtb chardev OK
[    1.569735] meson-mmc: amlmmc_ddr_init: register ddr_parameter chardev
[    1.569856] meson-mmc: amlmmc_ddr_init: register ddr parameter chardev OK
[    1.569882] meson-mmc: Exit aml_emmc_partition_ops OK.
[    1.639405] asoc-aml-card auge_sound: control 2:0:0:I2SIn CLK:0 is already present
[    1.639413] snd_tdm ff642000.audiobus:tdmb: ASoC: Failed to add I2SIn CLK: -16
[    1.639416] aml_dai_tdm_probe, failed add snd tdm controls
[    1.639427] asoc-aml-card auge_sound: control 2:0:0:I2SIn CLK:0 is already present
[    1.639432] snd_tdm ff642000.audiobus:tdmc: ASoC: Failed to add I2SIn CLK: -16
[    1.639435] aml_dai_tdm_probe, failed add snd tdm controls
[    1.639443] aml_dai_set_tdm_slot(), txmask(0xff), rxmask(0xff)
[    1.639446] \x09lanes_out_cnt(1), lanes_in_cnt(1)
[    1.639449] \x09lanes_lb_cnt(0)
[    1.639452] \x09slots(8), slot_width(32)
[    1.639456] \x09lanes_oe_out_cnt(0), lanes_oe_in_cnt(0)
[    1.639472] asoc aml_dai_set_tdm_fmt, 0x4004, ffffffc041150c18, id(0), clksel(0)
[    1.639478] master_mode(1), binv(1), finv(0) out_skew(2), in_skew(3)
[    1.639869] asoc-aml-card auge_sound: multicodec <-> TDM-A mapping ok
[    1.639874] aml_dai_set_tdm_slot(), txmask(0x3), rxmask(0x3)
[    1.639878] \x09lanes_out_cnt(1), lanes_in_cnt(1)
[    1.639880] \x09lanes_lb_cnt(0)
[    1.639883] \x09slots(2), slot_width(32)
[    1.639887] \x09lanes_oe_out_cnt(0), lanes_oe_in_cnt(0)
[    1.639894] [adc3101_set_dai_fmt]:slot_number=0
[    1.645100] asoc aml_dai_set_tdm_fmt, 0x4001, ffffffc041151218, id(1), clksel(1)
[    1.645106] master_mode(1), binv(1), finv(1) out_skew(2), in_skew(3)
[    1.645394] asoc-aml-card auge_sound: multicodec <-> TDM-B mapping ok
[    1.645399] aml_dai_set_tdm_slot(), txmask(0x3), rxmask(0x3)
[    1.645403] \x09lanes_out_cnt(4), lanes_in_cnt(0)
[    1.645405] \x09lanes_lb_cnt(0)
[    1.645408] \x09slots(2), slot_width(32)
[    1.645412] \x09lanes_oe_out_cnt(0), lanes_oe_in_cnt(0)
[    1.645417] asoc aml_dai_set_tdm_fmt, 0x4001, ffffffc041151818, id(2), clksel(2)
[    1.645422] master_mode(1), binv(1), finv(1) out_skew(2), in_skew(3)
[    1.645722] asoc-aml-card auge_sound: multicodec <-> TDM-C mapping ok
[    1.645940] asoc-aml-card auge_sound: dummy <-> ff642000.audiobus:pdm mapping ok
[    1.645945] set normal 128fs
[    1.645970] \x09 set spdifout clk:6144000, mpll:24576000
[    1.645973] \x09 get spdifout clk:6143997, mpll:24575987
[    1.645978] aml_dai_set_spdif_fmt , fmt 0x4010
[    1.646077] aml_spdif_new spdif_a, clk continuous:1
[    1.646080] spdifout_play_with_zerodata_free, spdif id:0
[    1.646274] asoc-aml-card auge_sound: dummy <-> SPDIF mapping ok
[    1.646279] set normal 128fs
[    1.646339] \x09 set spdifout clk:6144000, mpll:24576000
[    1.646342] \x09 get spdifout clk:6143997, mpll:24575987
[    1.646346] aml_dai_set_spdif_fmt , fmt 0x4010
[    1.646424] aml_spdif_new spdif_b, clk continuous:1
[    1.646427] spdifout_play_with_zerodata_free, spdif id:1
[    1.646533] asoc-aml-card auge_sound: dummy <-> SPDIF-B mapping ok
[    1.646538] \x0aloopback_dai_set_sysclk, 0, 12288000, 0
[    1.646542] asoc loopback_dai_set_fmt, 0x4010, ffffffc041106558
[    1.646799] asoc-aml-card auge_sound: dummy <-> ff642000.audiobus:loopback@0 mapping ok
[    1.656825] snd_card_add_kcontrols card:ffffffc0597fe818
[    1.656854] effect_v2 is not init
[    1.656857] Not init vad
[    1.656860] Failed to add VAD controls
[    1.656881] eq/drc v1 function enable
[    1.682508] u32 classifier
[    1.682511] Actions configured
[    1.682517] Netfilter messages via NETLINK v0.30.
[    1.682722] nf_conntrack version 0.5.0 (16384 buckets, 65536 max)
[    1.682837] ctnetlink v0.93: registering with nfnetlink.
[    1.683052] xt_time: kernel timezone is -0000
[    1.683111] gre: GRE over IPv4 demultiplexor driver
[    1.683115] IPv4 over IPsec tunneling driver
[    1.683560] ip_tables: (C) 2000-2006 Netfilter Core Team
[    1.683770] arp_tables: arp_tables: (C) 2002 David S. Miller
[    1.683804] Initializing XFRM netlink socket
[    1.683826] IPsec XFRM device driver
[    1.684271] NET: Registered protocol family 10
[    1.685059] mip6: Mobile IPv6
[    1.685079] ip6_tables: (C) 2000-2006 Netfilter Core Team
[    1.686024] NET: Registered protocol family 17
[    1.686045] NET: Registered protocol family 15
[    1.686068] bridge: filtering via arp/ip/ip6tables is no longer available by default. Update your scripts to load br_netfilter if you need this.
[    1.686082] l2tp_core: L2TP core driver, V2.0
[    1.686091] l2tp_ppp: PPPoL2TP kernel driver, V2.0
[    1.689847] Registered swp emulation handler
[    1.689857] Registered cp15_barrier emulation handler
[    1.689866] Registered setend emulation handler
[    1.689882] disable EAS feature
[    1.690408] registered taskstats version 1
[    1.690998] dwc3 ff500000.dwc3: Configuration mismatch. dr_mode forced to host
[    1.693734] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[    1.693749] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 1
[    1.694040] xhci-hcd xhci-hcd.0.auto: hcc params 0x0228fe6c hci version 0x110 quirks 0x20010010
[    1.694084] xhci-hcd xhci-hcd.0.auto: irq 15, io mem 0xff500000
[    1.694739] hub 1-0:1.0: USB hub found
[    1.694763] hub 1-0:1.0: 2 ports detected
[    1.695079] xhci-hcd xhci-hcd.0.auto: xHCI Host Controller
[    1.695090] xhci-hcd xhci-hcd.0.auto: new USB bus registered, assigned bus number 2
[    1.695143] usb usb2: We don't know the algorithms for LPM for this host, disabling LPM.
[    1.695634] hub 2-0:1.0: USB hub found
[    1.695655] hub 2-0:1.0: 1 port detected
[    1.696206] aml_vrtc rtc: setting system clock to 2015-01-01 00:00:06 UTC (1420070406)
[    1.696601] dwc_otg ff400000.dwc2_a: dwc_otg_driver_probe(ffffffc0935df800)
[    1.696633] dwc_otg: usb0: type: 0 speed: 0, config: 0, dma: 0, id: 0, phy: ffe09000, ctrl: 0
[    1.696651] dwc_otg ff400000.dwc2_a: base=0xffffff800dd00000
[    1.696656] dwc_otg ff400000.dwc2_a: dwc_otg_device=0xffffffc041153600
[    1.796840] dwc_otg: Core Release: 3.30a
[    1.796847] dwc_otg: Setting default values for core params
[    1.796858] dwc_otg: curmode: 0, host_only: 0
[    1.796877] dwc_otg ff400000.dwc2_a: DMA config: BURST_DEFAULT
[    1.809106] dwc_otg: Using Buffer DMA mode
[    1.809110] dwc_otg: OTG VER PARAM: 1, OTG VER FLAG: 1
[    1.809114] dwc_otg: Working on port type = SLAVE
[    1.809120] dwc_otg: Dedicated Tx FIFOs mode
[    1.811326] meson_cdev probe
[    1.811341] thermal: read gpupp failed
[    1.811434] meson_cdev index: 0
[    1.811559] thermal: read gpupp failed
[    1.811603] meson_cdev index: 1
[    1.811610] cpucore_cooling_register, max_cpu_core_num:4
[    1.811713] meson_cdev index: 2
[    1.811718] thermal: read gpupp failed
[    1.811736] meson_cdev index: 3
[    1.811769] find tzd id: 0
[    1.811877] find tzd id: 0
[    1.811912] meson_cdev probe done
[    1.812083] gxbb_pm: enter meson_pm_probe!
[    1.812088] no vddio3v3_en pin
[    1.812102] pm-meson aml_pm: Can't get switch_clk81
[    1.812128] gxbb_pm: meson_pm_probe done
[    1.812335] failed to create debug_lockup
[    1.812465] ALSA device list:
[    1.812468] #0: AML-AUGESOUND
[    1.812655] meson_uart ff803000.serial: ttyS0 use xtal(24M) 24000000 change 115200 to 115200
[    1.814365] Freeing unused kernel memory: 4800K
[    1.819890] init: init first stage started!
[    1.819976] init: Unable to open /lib/modules, skipping module loading.
[    1.820245] init: Copied ramdisk prop to /second_stage_resources/system/etc/ramdisk/build.prop
[    1.820489] init: Switching root to '/first_stage_ramdisk'
[    1.823653] init: Using Android DT directory /proc/device-tree/firmware/android/
[    1.827812] cectx ff80023c.aocec: mode is 1b6
[    1.855031] init: [libfs_mgr]superblock s_max_mnt_count:65535,/dev/block/metadata
[    1.855098] init: [libfs_mgr]Filesystem on /dev/block/metadata was not cleanly shutdown; state flags: 0x1, incompat feature flags: 0x46
[    1.856190] EXT4-fs (mmcblk0p13): Ignoring removed nomblk_io_submit option
[    1.860054] EXT4-fs (mmcblk0p13): recovery complete
[    1.860406] EXT4-fs (mmcblk0p13): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[    1.860476] init: [libfs_mgr]check_fs(): mount(/dev/block/metadata,/metadata,ext4)=0: Success
[    1.883437] init: [libfs_mgr]check_fs(): unmount(/metadata) succeeded
[    1.883606] init: [libfs_mgr]Not running /system/bin/e2fsck on /dev/block/metadata (executable not in system image)
[    1.884771] EXT4-fs (mmcblk0p13): Ignoring removed nomblk_io_submit option
[    1.886195] EXT4-fs (mmcblk0p13): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[    1.900427] device-mapper: verity: sha256 using implementation "sha256-ce"
[    1.907641] EXT4-fs (dm-3): mounted filesystem without journal. Opts: barrier=1,inode_readahead_blks=8
[    1.921431] EXT4-fs (dm-2): mounted filesystem without journal. Opts: barrier=1,inode_readahead_blks=8
[    1.924597] device-mapper: verity: sha256 using implementation "sha256-ce"
[    1.931233] EXT4-fs (dm-4): mounted filesystem without journal. Opts: barrier=1,inode_readahead_blks=8
[    1.942593] init: 20 output lines suppressed due to ratelimiting
[    2.112141] init: DM_DEV_STATUS failed for system_ext: No such device or address
[    2.112160] init: Could not update logical partition
[    2.112779] init: DM_DEV_STATUS failed for product: No such device or address
[    2.112793] init: Could not update logical partition
[    2.112868] init: Opening SELinux policy
[    2.114930] init: /system/etc/selinux/plat_sepolicy_and_mapping.sha256 and /odm/etc/selinux/precompiled_sepolicy.plat_sepolicy_and_mapping.sha256 differ
[    2.114946] init: Compiling SELinux policy
[    2.194330] av out status: high
[    4.138319] lcd vlock_en=1, vlock_mode=0x4
[    7.964524] init: /system/bin/secilc: linker: Warning: failed to find generated linker configuration from "/linkerconfig/ld.config.txt"
[    7.964548] init: /system/bin/secilc: WARNING: linker: Warning: failed to find generated linker configuration from "/linkerconfig/ld.config.txt"
[    7.967534] init: Loading SELinux policy
[    7.973202] SELinux: 16384 avtab hash slots, 36444 rules.
[    7.992710] SELinux: 16384 avtab hash slots, 36444 rules.
[    7.992781] SELinux:  1 users, 4 roles, 2050 types, 0 bools, 1 sens, 1024 cats
[    7.992791] SELinux:  102 classes, 36444 rules
[    7.996029] SELinux:  Completing initialization.
[    7.996035] SELinux:  Setting up existing superblocks.
[    8.098905] audit: type=1403 audit(1420070412.900:2): policy loaded auid=4294967295 ses=4294967295
[    8.099576] audit: type=1404 audit(1420070412.900:3): enforcing=1 old_enforcing=0 auid=4294967295 ses=4294967295
[    8.133686] selinux: SELinux: Loaded file_contexts
[    8.133696] selinux:
[    8.200897] init: init second stage started!
[    8.274096] init: Using Android DT directory /proc/device-tree/firmware/android/
[    8.278496] init: Overriding previous property 'persist.sys.usb.config':'none' with new value 'adb'
[    8.279453] init: Overriding previous property 'persist.sys.usb.config':'adb' with new value 'none'
[    8.279517] init: Couldn't load property file '/vendor/default.prop': open() failed: No such file or directory: No such file or directory
[    8.281155] init: Do not have permissions to set 'bluetooth.device.class_of_device' to '44,4,32' in property file '/vendor/build.prop': SELinux permission check failed
[    8.281302] init: Overriding previous property 'persist.sys.usb.config':'none' with new value 'mtp'
[    8.281487] init: Do not have permissions to set 'ro.com.google.gmsversion' to 'S_amlogic' in property file '/vendor/build.prop': SELinux permission check failed
[    8.281780] init: Overriding previous property 'ro.control_privapp_permissions':'disable' with new value 'enforce'
[    8.281973] init: Do not have permissions to set 'ro.crypto.state' to 'unencrypted' in property file '/vendor/build.prop': SELinux permission check failed
[    8.643029] ueventd: ueventd started!
[    8.648041] selinux: SELinux: Loaded file_contexts
[    8.648051] selinux:
[    8.648378] ueventd: Parsing file /system/etc/ueventd.rc...
[    8.648929] ueventd: Added '/vendor/etc/ueventd.rc' to import list
[    8.648949] ueventd: Added '/odm/etc/ueventd.rc' to import list
[    8.649335] ueventd: Parsing file /vendor/etc/ueventd.rc...
[    8.649371] ueventd: Unable to read config file '/vendor/etc/ueventd.rc': open() failed: No such file or directory
[    8.649404] ueventd: Parsing file /odm/etc/ueventd.rc...
[    8.649433] ueventd: Unable to read config file '/odm/etc/ueventd.rc': open() failed: No such file or directory
[    8.656291] cectx ff80023c.aocec: mode is 1b6
[    8.971096] optee: loading out-of-tree module taints kernel.
[    8.988337] checking watermark status return 0xFFFF0007
[    8.988349] optee_armtz: initialized driver
[   11.927656] Trying to create more than 5 SchedTune boosting groups
[   11.928344] Trying to create more than 5 SchedTune boosting groups
[   12.015414] unifykey: _amlkey_init_gen() enter!
[   12.017152] emmc_key_read:456, read ok
[   12.017167] unifykey: _amlkey_init_gen() storagekey_info.buffer=ffffffc005080000, storagekey_info.size = 40000!
[   12.031341] logd.auditd: start
[   12.031367] logd.klogd: 11977059837
[   12.041238] binder: 3161:3161 ioctl 40046210 ffe03548 returned -22
[   12.052591] binder: 3162:3162 ioctl 40046210 ffb6ae60 returned -22
[   12.063015] binder: 3163:3163 ioctl 40046210 fffe6698 returned -22
[   12.084281] register clk_set_setting cpu[40]
[   12.089142] Registered firmware driver success.
[   12.090105] Try to load video/h264_enc.bin  ...
[   12.092108] load firmware size : 76288, Name : video/h264_enc.bin.
[   12.092763] Try to load video/video_ucode.bin  ...
[   12.108945] load firmware size : 1961984, Name : video/video_ucode.bin.
[   12.120341] Registered frame rate driver success.
[   12.134346] Can not create debugfs for vdec_profile
[   12.146074] Amlogic A/V streaming port init
[   12.148922] get gate demux control ok ffffffc08fc82440
[   12.148938] get gate parser_top control ok ffffffc08fc824c0
[   12.148964] get gate vdec control ok ffffffc08fc82540
[   12.148995] get gate clk_81 control ok ffffffc08fc825c0
[   12.149031] get gate clk_vdec_mux control ok ffffffc08fc82640
[   12.149123] get gate clk_hcodec_mux control ok ffffffc08fc826c0
[   12.149168] get gate clk_hevc_mux control ok ffffffc08fc82740
[   12.149217] get gate clk_hevcb_mux control ok ffffffc08fc827c0
[   12.149237] get gate ahbarb0 control ok ffffffc08fc82840
[   12.149245] get gate asyncfifo control failed           (null)
[   12.149251] get gate clk_hevcf_mux control failed           (null)
[   12.149254] get mux clk err.
[   12.149258] get mux clk err.
[   12.152558] amvdec_avs module init
[   12.156371] amvdec_h264 module init
[   12.164319] binder: 3173:3173 ioctl 40046210 ffd915c0 returned -22
[   12.164554] binder: 3173:3173 ioctl 40046210 ffd915a8 returned -22
[   12.165095] ammvdec_h264 module init
[   12.175627] amvdec_h265 module init
[   12.186836] ammvdec_mpeg12 module init
[   12.192185] ammvdec_mpeg4_driver_init_module
[   12.196600] amvdec_vc1 module init
[   12.204093] amvdec_vp9 module init
[   12.215537] amvenc_avc probe start.
[   12.215544] amvenc_avc_probe -- reserved memory config fail.
[   12.215548] amvenc_avc - cma memory pool size: 60 MB
[   12.215572] encode_wq_init.
[   12.215579] encode start monitor.
[   12.215717] encode workqueue monitor start.
[   12.219489] vpu_init
[   12.219741] vpu_probe fuck, clock_a: 0, clock_b: 0, clock_c: 0
[   12.219745] HevcEnc reserved memory config fail.
[   12.219749] HevcEnc - cma memory pool size: 64 MB
[   12.219774] HevcEnc - wave420l_irq: 44
[   12.219835] vpu base address get from platform driver physical base addr=0xff610000, virtual base=0xffffff800e5dc000
[   12.220126] SUCCESS alloc_chrdev_region
[   12.220132] success to probe vpu device with video memory from cma
[   12.230860] decoder registered as /dev/video26
[   12.232381] amlogic_fbc_lib_64: no symbol version for module_layout
[   12.232396] amlogic_fbc_lib_64: module license 'Copyright (C) 2015 Amlogic, Inc. All rights reserved.' taints kernel.
[   12.232399] Disabling lock debugging due to kernel taint
[   12.233041] register_amlogic_afbc_dec_fun
[   12.233046] register_amlogic_afbc_dec_fun
[   12.245109] amvdec_av1 module init
[   12.271468] binder: 3343:3343 ioctl 40046210 ffe4a868 returned -22
[   12.271577] ProcessState: Binder ioctl to enable oneway spam detection failed: Invalid argument
[   12.272265] vdc: Waited 0ms for vold
[   12.273264] vdc: Command: checkpoint restoreCheckpoint /dev/block/userdata Failed: Status(-8, EX_SERVICE_SPECIFIC): '22: No magic'
[   12.293983] binder: 3344:3344 ioctl 40046210 ffa01d18 returned -22
[   12.294070] ProcessState: Binder ioctl to enable oneway spam detection failed: Invalid argument
[   12.294663] vdc: Waited 0ms for vold
[   12.300228] EXT4-fs (mmcblk0p20): Ignoring removed nomblk_io_submit option
[   12.393286] EXT4-fs (mmcblk0p20): recovery complete
[   12.393723] EXT4-fs (mmcblk0p20): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[   12.445608] e2fsck: e2fsck 1.45.4 (23-Sep-2019)
[   12.457447] e2fsck: Pass 1: Checking inodes, blocks, and sizes
[   12.518254] e2fsck: Pass 2: Checking directory structure
[   12.575518] e2fsck: Pass 3: Checking directory connectivity
[   12.576354] e2fsck: Pass 4: Checking reference counts
[   12.610218] e2fsck: Pass 5: Checking group summary information
[   12.654964] e2fsck: [QUOTA WARNING] Usage inconsistent for ID 0:actual (954368, 152) != expected (950272, 152)
[   12.655096] e2fsck: Update quota info for quota type 0? yes
[   12.655106] e2fsck:
[   12.657591] e2fsck: [QUOTA WARNING] Usage inconsistent for ID 0:actual (335872, 62) != expected (331776, 62)
[   12.700039] EXT4-fs (mmcblk0p20): Ignoring removed nomblk_io_submit option
[   12.702052] EXT4-fs (mmcblk0p20): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[   12.704698] EXT4-fs (mmcblk0p3): Ignoring removed nomblk_io_submit option
[   12.708248] EXT4-fs (mmcblk0p3): recovery complete
[   12.708607] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[   12.794429] EXT4-fs (mmcblk0p3): Ignoring removed nomblk_io_submit option
[   12.795924] EXT4-fs (mmcblk0p3): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[   12.892565] EXT4-fs (mmcblk0p10): Ignoring removed nomblk_io_submit option
[   12.896609] EXT4-fs (mmcblk0p10): recovery complete
[   12.897040] EXT4-fs (mmcblk0p10): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[   12.956216] EXT4-fs (mmcblk0p10): Ignoring removed nomblk_io_submit option
[   12.957913] EXT4-fs (mmcblk0p10): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[   12.960599] EXT4-fs (mmcblk0p15): Ignoring removed nomblk_io_submit option
[   12.961923] EXT4-fs (mmcblk0p15): recovery complete
[   12.961938] EXT4-fs (mmcblk0p15): mounted filesystem with ordered data mode. Opts: errors=remount-ro,nomblk_io_submit
[   13.018184] EXT4-fs (mmcblk0p15): Ignoring removed nomblk_io_submit option
[   13.019707] EXT4-fs (mmcblk0p15): mounted filesystem with ordered data mode. Opts: nodelalloc,nomblk_io_submit,errors=panic
[   13.024307] FAT-fs (mmcblk0p16): Volume was not properly unmounted. Some data may be corrupt. Please run fsck.
[   13.054069] type=1107 audit(1420070417.852:4): uid=0 auid=4294967295 ses=4294967295 subj=u:r:init:s0 msg='avc: denied { set } for property=ro.crypto.fuse_sdcard pid=2582 uid=0 gid=0 scontext=u:r:vendor_init:s0 tcontext=u:object_r:vold_prop:s0 tclass=property_service permissive=0'
[   13.091688] binder: 3367:3367 ioctl 40046210 ff8a5568 returned -22
[   13.168515] binder: 3369:3369 ioctl 40046210 ffd8b7a8 returned -22
[   13.168706] binder: 3369:3369 ioctl 40046210 ffd8b748 returned -22
[   13.193025] binder: 3371:3371 ioctl 40046210 ff98d5f8 returned -22
[   13.211067] binder: 3376:3376 ioctl 40046210 ffbf0418 returned -22
[   13.220331] binder: 3372:3372 ioctl 40046210 ffebf5b8 returned -22
[   13.275471] binder: 3379:3379 ioctl 40046210 ff8d7878 returned -22
[   13.284585] binder: 3370:3370 ioctl 40046210 ffc18d20 returned -22
[   13.295619] binder: 3370:3380 ioctl 40046210 e8efbb28 returned -22
[   13.300412] init: Control message: Could not find 'android.hardware.keymaster@4.0::IKeymasterDevice/default' for ctl.interface_start from pid: 3162 (/system/bin/hwservicemanager)
[   13.300655] init: Control message: Could not find 'android.hardware.keymaster@4.0::IKeymasterDevice/default' for ctl.interface_start from pid: 3162 (/system/bin/hwservicemanager)
[   13.433680] apexd: This device does not support updatable APEX. Exiting
[   13.433734] apexd: Marking APEXd as activated
[   13.528898] binder: 3393:3393 ioctl 40046210 ffccde08 returned -22
[   13.529012] ProcessState: Binder ioctl to enable oneway spam detection failed: Invalid argument
[   13.529514] vdc: Waited 0ms for vold
[   13.588745] selinux: SELinux: Skipping restorecon on directory(/data)
[   13.588758] selinux:
[   13.709966] apexd: This device does not support updatable APEX. Exiting
[   13.709997] apexd: Marking APEXd as ready
[   13.758741] mali ffe40000.bifrost: Kernel DDK version r32p1-01bet0
[   13.759628] mali ffe40000.bifrost: max pp is 2
[   13.759636] mali ffe40000.bifrost: set min pp to default 1
[   13.759640] mali ffe40000.bifrost: min pp is 1
[   13.759645] mali ffe40000.bifrost: set min clk default to 0
[   13.759649] mali ffe40000.bifrost: min clk  is 0
[   13.759671] mali ffe40000.bifrost: hiu io source  0xffffff800dcfd000
[   13.759688] mali ffe40000.bifrost: aobus base 0xffffff800e792000
[   13.759699] mali ffe40000.bifrost: reset bus 0xffffff800e799000
[   13.759704] mali ffe40000.bifrost: clk cntl reg = 0x6c
[   13.759709] mali ffe40000.bifrost: num of pp used most of time 1
[   13.759714] mali ffe40000.bifrost: clock dvfs cfg table size is 6
[   13.759724] mali ffe40000.bifrost: no reset_cfg
[   13.759732] mali ffe40000.bifrost: no apb_reset
[   13.759800] mali ffe40000.bifrost: max clk set 4
[   13.759805] mali ffe40000.bifrost: max clk  is 4
[   13.759809] mali ffe40000.bifrost: turbo clk set to 5
[   13.759813] mali ffe40000.bifrost: turbo clk  is 5
[   13.759818] mali ffe40000.bifrost: default clk set to 4
[   13.759822] mali ffe40000.bifrost: default clk  is 4
[   13.759829] mali ffe40000.bifrost: ====================0====================\x0aclk_freq= 285714285, clk_parent=fclk_div7, voltage=1150, keep_count=5, threshod=<0 76>, clk_sample=285
[   13.759835] mali ffe40000.bifrost: ====================1====================\x0aclk_freq= 400000000, clk_parent=fclk_div5, voltage=1150, keep_count=5, threshod=<152 207>, clk_sample=400
[   13.759841] mali ffe40000.bifrost: ====================2====================\x0aclk_freq= 500000000, clk_parent=fclk_div4, voltage=1150, keep_count=5, threshod=<38 194>, clk_sample=500
[   13.759847] mali ffe40000.bifrost: ====================3====================\x0aclk_freq= 666666666, clk_parent=fclk_div3, voltage=1150, keep_count=5, threshod=<150 203>, clk_sample=666
[   13.759853] mali ffe40000.bifrost: ====================4====================\x0aclk_freq= 846000000, clk_parent=  gp0_pll, voltage=1150, keep_count=5, threshod=<156 255>, clk_sample=846
[   13.759859] mali ffe40000.bifrost: ====================5====================\x0aclk_freq= 846000000, clk_parent=  gp0_pll, voltage=1150, keep_count=5, threshod=<156 255>, clk_sample=846
[   13.759863] mali ffe40000.bifrost: clock dvfs table size is 6
[   13.761076] find tzd id: 0
[   13.761145] gpu cooling register okay with err=0
[   13.761405] find tzd id: 0
[   13.761452] gpu core cooling register okay with err=0
[   13.761461] mali ffe40000.bifrost: kbase_device_runtime_init
[   13.761471] mali ffe40000.bifrost: pm_callback_runtime_on
[   13.761478] mali ffe40000.bifrost: pm_runtime_get_sync ret=0
[   13.761484] mali ffe40000.bifrost: pm_runtime enabled
[   13.761502] mali ffe40000.bifrost: shader_present=1, tiler_present=1, l2_present=1
[   13.761692] mali ffe40000.bifrost: GPU identified as 0x3 arch 7.0.9 r0p0 status 0
[   13.761759] mali ffe40000.bifrost: No priority control manager is configured
[   13.761766] mali ffe40000.bifrost: No memory group manager is configured
[   13.763853] mali ffe40000.bifrost: Probed as mali0
[   13.780751] hid_skbrm: disagrees about version of symbol hid_unregister_driver
[   13.780784] hid_skbrm: disagrees about version of symbol __hid_register_driver
[   13.780807] hid_skbrm: disagrees about version of symbol kmem_cache_alloc_trace
[   13.780821] hid_skbrm: disagrees about version of symbol hidinput_calc_abs_res
[   13.780831] hid_skbrm: disagrees about version of symbol hid_connect
[   13.780837] hid_skbrm: disagrees about version of symbol _dev_info
[   13.780846] hid_skbrm: disagrees about version of symbol device_create_file
[   13.780861] hid_skbrm: disagrees about version of symbol hid_disconnect
[   13.780888] hid_skbrm: disagrees about version of symbol dev_err
[   13.780940] hid_skbrm: disagrees about version of symbol hid_open_report
[   13.780947] hid_skbrm: disagrees about version of symbol kmalloc_caches
[   13.780954] hid_skbrm: disagrees about version of symbol device_remove_file
[   13.782446] atvr_init: succeeded creating misc device snd_atvr_pcm
[   13.782598] atvr_init: succeeded creating misc device snd_atvr_adpcm
[   13.782780] atvr_init: succeeded creating misc device snd_atvr_msbc
[   13.794846] meson-remote: Driver init
[   13.795144] meson-remote: remote_probe
[   13.795159] meson-remote ff808040.rc: protocol = 0x1
[   13.795164] meson-remote ff808040.rc: led_blink = 1
[   13.795169] meson-remote ff808040.rc: led_blink_frq  = 100
[   13.795236] meson-remote ff808040.rc: platform_data irq =31
[   13.795277] meson-remote ff808040.rc: custom_number = 3
[   13.795290] meson-remote ff808040.rc: ptable->map_size = 258
[   13.795296] meson-remote ff808040.rc: ptable->custom_name = amlogic-remote-1
[   13.795301] meson-remote ff808040.rc: ptable->custom_code = 0x7f80
[   13.795306] meson-remote ff808040.rc: ptable->release_delay = 80
[   13.795479] meson-remote ff808040.rc: ptable->map_size = 258
[   13.795483] meson-remote ff808040.rc: ptable->custom_name = amlogic-remote-2
[   13.795488] meson-remote ff808040.rc: ptable->custom_code = 0xa0f5
[   13.795492] meson-remote ff808040.rc: ptable->release_delay = 80
[   13.795665] meson-remote ff808040.rc: ptable->map_size = 17
[   13.795670] meson-remote ff808040.rc: ptable->custom_name = amlogic-remote-3
[   13.795674] meson-remote ff808040.rc: ptable->custom_code = 0xbd02
[   13.795679] meson-remote ff808040.rc: ptable->release_delay = 80
[   13.795687] meson-remote ff808040.rc: default protocol = 0x1 and id = 0
[   13.795692] meson-remote ff808040.rc: reg=0x0, val=0x1f40190
[   13.795696] meson-remote ff808040.rc: reg=0x4, val=0x12c00c8
[   13.795700] meson-remote ff808040.rc: reg=0x8, val=0x960050
[   13.795705] meson-remote ff808040.rc: reg=0xc, val=0x480028
[   13.795709] meson-remote ff808040.rc: reg=0x10, val=0x70fa0013
[   13.795713] meson-remote ff808040.rc: reg=0x18, val=0x8616800
[   13.795717] meson-remote ff808040.rc: reg=0x1c, val=0x9f00
[   13.795722] meson-remote ff808040.rc: reg=0x20, val=0x0
[   13.795726] meson-remote ff808040.rc: reg=0x24, val=0x0
[   13.795730] meson-remote ff808040.rc: reg=0x28, val=0x0
[   13.796306] input: aml_keypad as /devices/platform/ff808040.rc/input/input3
[   13.801108] gpio_keypad: disagrees about version of symbol platform_driver_unregister
[   13.801122] gpio_keypad: disagrees about version of symbol gpiod_to_irq
[   13.801130] gpio_keypad: disagrees about version of symbol gpiod_get_value
[   13.801140] gpio_keypad: disagrees about version of symbol _dev_info
[   13.801148] gpio_keypad: disagrees about version of symbol gpiod_direction_input
[   13.801157] gpio_keypad: disagrees about version of symbol devm_gpiod_get_index
[   13.801166] gpio_keypad: disagrees about version of symbol dev_err
[   13.801179] gpio_keypad: disagrees about version of symbol __platform_driver_register
[   13.801186] gpio_keypad: disagrees about version of symbol gpiod_set_pull
[   13.801828] gpio-keypad gpio_keypad: ch+ key(402) registed.
[   13.801834] gpio-keypad gpio_keypad: ch- key(403) registed.
[   13.802025] input: gpio_keypad as /devices/platform/gpio_keypad/input/input4
[   13.868585] selinux: SELinux: Skipping restorecon on directory(/data/dalvik-cache/arm)
[   13.868598] selinux:
[   13.868760] selinux: SELinux:  Could not stat /data/dalvik-cache/arm64: No such file or directory.
[   13.868767] selinux:
[   13.868835] selinux: SELinux:  Could not stat /data/dalvik-cache/mips: No such file or directory.
[   13.868842] selinux:
[   13.883072] init: Top-level directory needs encryption action, eg mkdir /data/media <mode> <uid> <gid> encryption=Require
[   13.883093] init: Not setting encryption policy on: /data/media
[   13.883327] type=1400 audit(1420070418.684:5): avc: denied { getattr } for comm="init" path="/data/media" dev="mmcblk0p20" ino=71714 scontext=u:r:vendor_init:s0 tcontext=u:object_r:media_rw_data_file:s0 tclass=dir permissive=0
[   13.888838] type=1400 audit(1420070418.688:6): avc: denied { create } for comm="init" name="btv_home" scontext=u:r:vendor_init:s0 tcontext=u:object_r:system_data_file:s0 tclass=lnk_file permissive=0
[   13.889057] type=1400 audit(1420070418.688:7): avc: denied { setattr } for comm="init" name="/" dev="mmcblk0p3" ino=2 scontext=u:r:vendor_init:s0 tcontext=u:object_r:cache_file:s0 tclass=dir permissive=0
[   13.889190] type=1400 audit(1420070418.688:8): avc: denied { search } for comm="init" name="/" dev="mmcblk0p3" ino=2 scontext=u:r:vendor_init:s0 tcontext=u:object_r:cache_file:s0 tclass=dir permissive=0
[   13.894639] init: Top-level directory needs encryption action, eg mkdir /data/skb_data <mode> <uid> <gid> encryption=Require
[   13.895201] type=1400 audit(1420070418.696:9): avc: denied { create } for comm="init" name="skb_data" scontext=u:r:vendor_init:s0 tcontext=u:object_r:skb_data_file:s0 tclass=dir permissive=0
[   13.895456] init: Top-level directory needs encryption action, eg mkdir /data/skb_data <mode> <uid> <gid> encryption=Require
[   13.895806] type=1400 audit(1420070418.696:10): avc: denied { create } for comm="init" name="skb_data" scontext=u:r:vendor_init:s0 tcontext=u:object_r:skb_data_file:s0 tclass=dir permissive=0
[   13.895886] init: Top-level directory needs encryption action, eg mkdir /data/skb_data <mode> <uid> <gid> encryption=Require
[   13.896115] type=1400 audit(1420070418.696:11): avc: denied { create } for comm="init" name="skb_data" scontext=u:r:vendor_init:s0 tcontext=u:object_r:skb_data_file:s0 tclass=dir permissive=0
[   14.098339] [TEE] MESSAGE: USER-TA:log_msg:68: KeymasterTA (info): app/ipc/keymaster_ipc.cpp, Line 969: Amlogic KEYMASTER 4.0! Build Time: Aug  8 2022 16:18:48 version: 107c20d TDK: afa2a11
[   14.098348] [TEE] MESSAGE: USER-TA:log_msg:68: KeymasterTA (err): app/ipc/keymaster_ipc.cpp, Line 386: Command 112 not allowed before configure command
[   14.098350] [TEE] MESSAGE: USER-TA:log_msg:68: KeymasterTA (info): app/trusty_keymaster_context.cpp, Line 593: Master key is derived from KDF
[   14.273777] file system registered
[   14.276973] binder: 3434:3434 ioctl 40046210 ffe77d30 returned -22
[   14.279109] using random self ethernet address
[   14.279116] using random host ethernet address
[   14.280596] using random self ethernet address
[   14.280605] using random host ethernet address
[   14.286702] assign_ffs_buffer FFS_BUFFER_MAX=256!!!
[   14.291969] assign_ffs_buffer FFS_BUFFER_MAX=256!!!
[   14.295083] assign_ffs_buffer FFS_BUFFER_MAX=256!!!
[   14.409751] binder: 3449:3449 ioctl 40046210 ff935500 returned -22
[   14.422719] selinux: SELinux: Could not set context for /sys/devices/virtual/net/ipsec_test:  No such file or directory
[   14.422732] selinux:
[   14.422773] selinux: SELinux:  Could not read /sys/devices/virtual/net/ipsec_test: No such file or directory.
[   14.422781] selinux:
[   14.422837] ueventd: selinux_android_restorecon(/sys/devices/virtual/net/ipsec_test) failed: Success
[   14.465131] binder: 3435:3435 ioctl 40046210 ffaa1310 returned -22
[   14.469662] binder: 3435:3435 ioctl 40046210 ffaa1438 returned -22
[   14.472057] binder: 3450:3450 ioctl 40046210 ffa81d78 returned -22
[   14.472807] binder: 3450:3450 ioctl 40046210 ffa81d60 returned -22
[   14.475792] binder: 3451:3451 ioctl 40046210 ffb88d20 returned -22
[   14.490098] binder: 3447:3447 ioctl 40046210 ff86a8d0 returned -22
[   14.493841] binder: 3447:3447 ioctl 40046210 ff86a8b8 returned -22
[   14.507918] binder: 3454:3454 ioctl 40046210 ffa762a8 returned -22
[   14.527562] hdmitx: system: hdmitx: set rxsense_policy as 1
[   14.527663] hdmitx: hdmitx_set_uevent[223] hdmitx_rxsense=1 0
[   14.537502] hdmitx: system: sname = invalid
[   14.537510] hdmitx: system: char_clk = 0
[   14.537513] hdmitx: system: cd = 4
[   14.537516] hdmitx: system: cs = 0
[   14.537652] hdmitx: system: sname = invalid
[   14.537657] hdmitx: system: char_clk = 0
[   14.537660] hdmitx: system: cd = 4
[   14.537663] hdmitx: system: cs = 0
[   14.537787] hdmitx: system: sname = invalid
[   14.537791] hdmitx: system: char_clk = 0
[   14.537794] hdmitx: system: cd = 4
[   14.537797] hdmitx: system: cs = 0
[   14.541403] binder: 3455:3455 ioctl 40046210 ffe0b238 returned -22
[   14.549293] binder: 3462:3462 ioctl 40046210 fff0a8b8 returned -22
[   14.615418] binder: 3478:3478 ioctl 40046210 ffeedb40 returned -22
[   14.620454] binder: 3479:3479 ioctl 40046210 ffa48f00 returned -22
[   14.671286] binder: 3463:3463 ioctl 40046210 ffc10bb8 returned -22
[   14.674097] binder: 3486:3486 ioctl 40046210 ff9f7768 returned -22
[   14.683025] binder: 3464:3464 ioctl 40046210 ffa3cdc8 returned -22
[   14.689378] binder: 3453:3453 ioctl 40046210 ff877ac8 returned -22
[   14.689599] binder: 3488:3488 ioctl 40046210 fffcc5d0 returned -22
[   14.702237] dim:load 0x3a00 pq table len 246 later.
[   14.717594] binder: 3491:3491 ioctl 40046210 fff6bf40 returned -22
[   14.745801] binder: 3490:3490 ioctl 40046210 ffd362e0 returned -22
[   14.756628] binder: 3495:3495 ioctl 40046210 ffc06fc0 returned -22
[   14.793419] binder: 3481:3481 ioctl 40046210 ffc37228 returned -22
[   14.794286] binder: 3481:3481 ioctl 40046210 ffc37210 returned -22
[   14.810105] binder: 3498:3498 ioctl 40046210 ff8d5370 returned -22
[   14.821032] fb: osd_open, 1507, fb_index=0,fb_rmem_size=26738688
[   14.821158] fb: osd_open, 1507, fb_index=1,fb_rmem_size=1048576
[   14.821204] fb: osd_open, 1507, fb_index=2,fb_rmem_size=1048576
[   14.821333] fb: vpu clkc clock is 199 MHZ
[   14.821348] vpu: switch_vpu_mem_pd: unsupport vpu mod: 54
[   14.821356] fb: osd_open, 1507, fb_index=3,fb_rmem_size=8388608
[   14.821536] video_composer_open iminor(inode) =0
[   14.827550] binder: 3500:3500 ioctl 40046210 ffe12f98 returned -22
[   14.838007] binder: 3497:3497 ioctl 40046210 ffd690a8 returned -22
[   14.839015] binder: 3466:3466 ioctl 40046210 ffa04ba0 returned -22
[   14.843558] video_composer_open iminor(inode) =1
[   14.844545] binder: 3499:3499 ioctl 40046210 ffe31eb8 returned -22
[   14.852644] vout: vout_ioctl: cmd_dir = 0x2, cmd_nr = 0x0
[   14.855486] binder: 3506:3506 ioctl 40046210 ffc7aeb8 returned -22
[   14.860056] binder: 3505:3505 ioctl 40046210 fff9e2d8 returned -22
[   14.885264] \x0a[amvideo..] saturation_post:0 hue_post:0 mab:1000000
[   14.938684] binder: 3504:3504 ioctl 40046210 ffa52668 returned -22
[   14.938991] vfm_map_store:rm default
[   14.939579] vfm_map_store:add default decoder ppmgr deinterlace amvideo
[   14.939738] binder: 3515:3515 ioctl 40046210 ffdfd008 returned -22
[   14.948559] cpufreq_interactive: cpufreq_hmp_boost_start()
[   14.948565] cpufreq_interactive: no need to active hmp boost!
[   14.972178] binder: 3507:3507 ioctl 40046210 ffd25e00 returned -22
[   14.972319] binder: 3507:3507 ioctl 40046210 ffd25de8 returned -22
[   14.973670] binder: 3526:3526 ioctl 40046210 ffc21500 returned -22
[   15.003512] hdmitx: store_avmute 1
[   15.003521] hdmitx: hw: avmute set to 2
[   15.047102] amlogic-new-usb3-v2 ffe09080.usb3phy: set to host mode
[   15.063086] vout: vout_ioctl: cmd_dir = 0x2, cmd_nr = 0x0
[   15.064902] vout: vout_ioctl: cmd_dir = 0x2, cmd_nr = 0x0
[   15.097919] vout: vmode set to 720p60hz
[   15.106281] fb: current vmode=720p60hz, cmd: 0x10000
[   15.106293] vlock: event MODE_CHANGE_PRE 0
[   15.106424] hdmitx: hdmitx_set_current_vmode[5866]
[   15.106430] hdmitx: system: recalc before 720p60hz 2997 50, frac 1
[   15.106436] hdmitx: system: recalc after 720p60hz 2997 50, frac 1
[   15.106439] hdmitx: system: get current mode: 720p60hz
[   15.106444] hdmitx: system: update physical size: 16 9
[   15.106499] hdmitx: video: already init VIC = 0  Now VIC = 4
[   15.106503] hdmitx: video: rx edid only support RGB format
[   15.106508] hdmitx: hw: div40: 0
[   15.137415] hdmitx: E: ddc w1b 0x54 0x20 0x00
[   15.137430] hdmitx: frac_rate = 1
[   15.137437] hdmitx: config HPLL = 5940000 frac_rate = 1
[   15.137493] hdmitx: HPLLv1: 0xdb3a04f7
[   15.137497] hdmitx: config HPLL done
[   15.137505] hdmitx: set_hpll_od3_clk_div[687] div = 6
[   15.137512] hdmitx: j = 2  vid_clk_div = 1
[   15.137526] hdmitx: set enc for VIC: 4
[   15.171310] binder: 3509:3509 ioctl 40046210 ffcf6f00 returned -22
[   15.171578] binder: 3509:3509 ioctl 40046210 ffcf6f18 returned -22
[   15.171928] binder: 3551:3551 ioctl 40046210 ff9e0068 returned -22
[   15.183699] binder: 3527:3527 ioctl 40046210 ffe4a638 returned -22
[   15.184064] hdmitx: hw:  config hdmitx IP vic = 4 cd:4 cs: 0
[   15.190904] binder: 3527:3527 ioctl 40046210 ffe4a650 returned -22
[   15.214847] hdmitx: video: Sink is HDMI device
[   15.214888] hdmitx: hw: set audio
[   15.214893] hdmitx: hw: hdmitx tx_aud_src = 0
[   15.214907] hdmitx: fs = 3, cd = 4, tmds_clk = 74176
[   15.214911] hdmitx: hw: aud_n_para = 11648
[   15.214921] hdmitx: hw: set channel status
[   15.214938] hdmitx: hw: [0x10e3] = 0x1f
[   15.214959] hdmitx: audio: Audio Type: PCM
[   15.214964] hdmitx: system: update rx hdr info 0
[   15.214969] vout: new mode 720p60hz set ok
[   15.214973] fb: current vmode=720p60hz, cmd: 0x20000
[   15.214989] vout sys: update date: 0x0bb50032
[   15.214993] DOLBY: vout_notify_callback: VOUT_EVENT_MODE_CHANGE
[   15.214999] vlock: event MODE_CHANGE
[   15.217706] vout: vout_ioctl: cmd_dir = 0x2, cmd_nr = 0x0
[   15.227329] vout: vout_ioctl: cmd_dir = 0x2, cmd_nr = 0x0
[   15.240802] hdmitx: store_avmute -1
[   15.240811] hdmitx: hw: avmute set to 1
[   15.295860] binder: 3565:3565 ioctl 40046210 ff88eac0 returned -22
[   15.364329] binder: 3570:3570 ioctl 40046210 ffbeb550 returned -22
[   15.375525] binder: 3569:3569 ioctl 40046210 ffaf3fc8 returned -22
[   15.407129] binder: 3572:3572 ioctl 40046210 ff813580 returned -22
[   15.445477] binder: 3577:3577 ioctl 40046210 ffda6e88 returned -22
[   15.456027] binder: 3577:3577 ioctl 40046210 ffda6e38 returned -22
[   15.519224] binder: 3589:3589 ioctl 40046210 ffb841a8 returned -22
[   15.560809] binder: 3586:3586 ioctl 40046210 ffa8cbf0 returned -22
[   15.563457] binder: 3586:3586 ioctl 40046210 ffa8ca80 returned -22
[   15.731329] binder: 3583:3583 ioctl 40046210 ffe77cc0 returned -22
[   15.753539] binder: 3579:3579 ioctl 40046210 ffb2f358 returned -22
[   15.753856] binder: 3579:3579 ioctl 40046210 ffb2f340 returned -22
[   15.761848] read descriptors
[   15.761865] read strings
[   15.798643] binder: 3527:3564 ioctl 40046210 f18fae20 returned -22
[   15.847331] avc open
[   15.847338] amvenc_avc  check CMA pool success, max instance: 3.
[   15.848354] allocating phys 0x98c00000, size 20480k, wq:ffffffc08cf16c00.
[   15.848362] amvenc_avc  memory config success, buff start:0x98c00000, size is 0x1400000, wq:ffffffc08cf16c00.
[   15.848497] avc release, wq:ffffffc08cf16c00
[   15.848505] remove  encode_work_queue ffffffc08cf16c00 success, _destroy_encode_work_queue line 3960.
[   15.849615] [+] vpu_open
[   15.852258] allocating phys 0x98c00000, virt addr 0x0, size 65536k
[   15.852535] the vdec            clock on, ref cnt: 1
[   15.852561] [-] vpu_open, ret: 0
[   15.852666] vpu_release
[   15.852670] vpu_free_buffers
[   15.852672] vpu_free_instances
[   15.852677] vpu_release, s_video_memory 0x98c00000
[   15.863652] the vdec            clock off, ref cnt: 0
[   15.935304] binder: 3574:3574 ioctl 40046210 ffbc2218 returned -22
[   15.939698] binder: 3574:3574 ioctl 40046210 ffbc2200 returned -22
[   16.020270] audio_ddr_mngr: toddrs[0] registered by device ff642000.audiobus:pdm
[   16.020751] audio_ddr_mngr: toddrs[0] released by device ff642000.audiobus:pdm
[   16.021340] aml_tdm_open
[   16.034542] audio_ddr_mngr: toddrs[0] registered by device ff642000.audiobus:tdma
[   16.035035] tdm capture mute: 1
[   16.035222] audio_ddr_mngr: toddrs[0] released by device ff642000.audiobus:tdma
[   16.035992] aml_tdm_open
[   16.041281] audio_ddr_mngr: toddrs[0] registered by device ff642000.audiobus:tdmc
[   16.041296] ASoC: multicodec <-> TDM-C No matching channels
[   16.041377] audio_ddr_mngr: toddrs[0] released by device ff642000.audiobus:tdmc
[   16.042498] loopback_dai_startup
[   16.054557] audio_ddr_mngr: toddrs[0] registered by device ff642000.audiobus:loopback@0
[   16.054888] loopback_dai_shutdown
[   16.054974] audio_ddr_mngr: toddrs[0] released by device ff642000.audiobus:loopback@0
[   16.055563] aml_tdm_open
[   16.059796] audio_ddr_mngr: toddrs[0] registered by device ff642000.audiobus:tdmb
[   16.060136] tdm capture mute: 1
[   16.060255] audio_ddr_mngr: toddrs[0] released by device ff642000.audiobus:tdmb
[   16.060771] aml_spdif_open
[   16.061626] binder: 3529:3529 ioctl 40046210 ffbdd608 returned -22
[   16.073160] audio_ddr_mngr: toddrs[0] registered by device ff642000.audiobus:spdif
[   16.073852] aml_spdif_close
[   16.074048] audio_ddr_mngr: toddrs[0] released by device ff642000.audiobus:spdif
[   16.088498] aml_tdm_open
[   16.088505] Not init audio effects
[   16.100020] binder: 3571:3571 ioctl 40046210 ffdc1f70 returned -22
[   16.100450] audio_ddr_mngr: frddrs[0] registered by device ff642000.audiobus:tdmb
[   16.102282] adc3101_set_dai_sysclk freq:12288000
[   16.102292] aml_dai_set_tdm_sysclk(), mpll no change, keep clk
[   16.102517] aml_dai_set_tdm_sysclk(), mclk no change, keep clk
[   16.102523] set mclk:12288000, mpll:24576000, get mclk:12287994, mpll:24575987
[   16.102529] asoc aml_dai_set_tdm_fmt, 0x4001, ffffffc041151218, id(1), clksel(1)
[   16.102532] aml_dai_set_tdm_fmt(), fmt not change
[   16.102538] adc3101_hw_params ...
[   16.112145] binder: 3573:3573 ioctl 40046210 ffea4318 returned -22
[   16.112364] binder: 3575:3575 ioctl 40046210 ffc24a48 returned -22
[   16.116519] adc3101_hw_params NADC = 0x81
[   16.120121] binder: 3573:3573 ioctl 40046210 ffea4300 returned -22
[   16.120548] adc3101_hw_params MADC = 0x82
[   16.122720] adc3101_hw_params AOSR=80
[   16.124747] adc3101_hw_params iface1 = 00
[   16.126077] adc3101_hw_params differential pair
[   16.130542] binder: 3575:3575 ioctl 40046210 ffc24a00 returned -22
[   16.139961] adc3101_hw_params ADCSETUP = c2
[   16.141236] adc3101_hw_params DOUTCTL=12
[   16.142617] adc3101_hw_params MICBIAS=50
[   16.142635] dump_pcm_setting(ffffffc041151218)
[   16.142638] \x09pcm_mode(1)
[   16.142642] \x09sysclk(12288000)
[   16.142645] \x09sysclk_bclk_ratio(4)
[   16.142648] \x09bclk(3072000)
[   16.142651] \x09bclk_lrclk_ratio(64)
[   16.142654] \x09lrclk(48000)
[   16.142657] \x09tx_mask(0x3)
[   16.142660] \x09rx_mask(0x3)
[   16.142663] \x09slots(2)
[   16.142666] \x09slot_width(32)
[   16.142669] \x09lane_mask_in(0x4)
[   16.142672] \x09lane_mask_out(0x1)
[   16.142675] \x09lane_oe_mask_in(0x0)
[   16.142678] \x09lane_oe_mask_out(0x0)
[   16.142681] \x09lane_lb_mask_in(0x0)
[   16.142687] aml_dai_set_tdm_sysclk(), mpll no change, keep clk
[   16.142690] aml_dai_set_tdm_sysclk(), mclk no change, keep clk
[   16.142696] set mclk:12288000, mpll:24576000, get mclk:12287994, mpll:24575987
[   16.142700] aml_dai_set_clkdiv, div 4, clksel(1)
[   16.142713] aml_dai_set_bclk_ratio, select I2S mode
[   16.142725] aml_dai_tdm_hw_params(), enable mclk for TDM-B
[   16.146364] [TEE] the package has 0 fws totally.
[   16.146369] [TEE] The TA ver is v0.2
[   16.146370] [TEE] The fw ver is v0.0
[   16.146372] [TEE] the fw with 520 KB will be loaded.
[   16.146374] [TEE] [HDCP-TA] hdcp_load_key: read hdcp key(hdcp_tx22.bin) ret = 0xFFFF0008
[   16.146376] [TEE] [HDCP-TA] hdcp_load_key: read hdcp key(hdcp_tx14.bin) ret = 0xFFFF0008
[   16.146378] [TEE] [HDCP-TA] hdcp_load_key: read hdcp key(hdcp_rx14.bin) ret = 0xFFFF0008
[   16.146379] [TEE] [HDCP-TA] hdcp_load_key: read hdcp key(hdcp_rx22_fw_priv.bin) ret = 0xFFFF0008
[   16.146382] [TEE] [HDCP-TA] cmd_hdcp_read_key: hdcp_read_key(hdcp_rx22_fw.bin) failed, ret = 0xffff0008
[   16.156120] spdif_a fifo ctrl, frddr:0 type:1, 16 bits, chmask 0x3, swap 0x10
[   16.156132] spdif_info: rate: 48000, channel status ch0_l:0x100, ch0_r:0x100, ch1_l:0x200, ch1_r:0x200
[   16.156142] audio_ddr_mngr: frddr_set_sharebuffer_enable sel:1, dst_src:3
[   16.170165] tdm playback mute: 0, lane_cnt = 4
[   16.180136] asoc-aml-card auge_sound: tdm playback enable
[   16.180147] spdif_a is set to enable
[   16.264736] binder: 3560:3560 ioctl 40046210 ffbe2b20 returned -22
[   16.265479] binder: 3560:3560 ioctl 40046210 ffbe2b38 returned -22
[   16.460776] binder: 3634:3634 ioctl 40046210 ff7f6430 returned -22
[   18.950052] init: Control message: Could not find 'aidl/package_native' for ctl.interface_start from pid: 3161 (/system/bin/servicemanager)
[   19.950952] init: Control message: Could not find 'aidl/package_native' for ctl.interface_start from pid: 3161 (/system/bin/servicemanager)
[   20.815644] binder: 3703:3703 ioctl 40046210 ffcbff08 returned -22
[   20.952328] init: Control message: Could not find 'aidl/package_native' for ctl.interface_start from pid: 3161 (/system/bin/servicemanager)
[   21.229207] binder: 3528:3528 ioctl 40046210 ff8242d8 returned -22
[   21.953343] init: Control message: Could not find 'aidl/package_native' for ctl.interface_start from pid: 3161 (/system/bin/servicemanager)
[   21.983154] binder: 3703:3703 ioctl 40046210 ffcbf9f8 returned -22
[   22.113460] type=1400 audit(1420070426.912:46): avc: denied { search } for comm="BootAnimation" name="data" dev="mmcblk0p20" ino=247009 scontext=u:r:bootanim:s0 tcontext=u:object_r:system_data_file:s0:c512,c768 tclass=dir permissive=0
[   22.115833] binder: 3634:3687 ioctl 40046210 ef6fb9d8 returned -22
[   22.166498] binder: 3634:3687 ioctl 40046210 ef6fba08 returned -22
[   22.182613] fb: osd[0] enable: 1 scale:0x10001 (composer@2.4-se)
[   22.182619] fb: osd[0] enable: 1 scale:0x10001 (composer@2.4-se)
[   22.188563] fb: free_scale_switch to fb0, mode: 0x10001
[   22.189210] fb: set logo loaded
[   22.267554] early_suspend_state=0
[   22.953923] init: Control message: Could not find 'aidl/package_native' for ctl.interface_start from pid: 3161 (/system/bin/servicemanager)
[   23.367529] type=1400 audit(1676108675.088:47): avc: denied { read } for comm="android.ui" name="name" dev="sysfs" ino=19361 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=0
[   23.369028] type=1400 audit(1676108675.088:48): avc: denied { read } for comm="android.ui" name="name" dev="sysfs" ino=9611 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=0
[   23.370703] type=1400 audit(1676108675.092:49): avc: denied { read } for comm="android.ui" name="name" dev="sysfs" ino=20960 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=0
[   23.371990] type=1400 audit(1676108675.092:50): avc: denied { read } for comm="android.ui" name="name" dev="sysfs" ino=20957 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=0
[   23.373594] type=1400 audit(1676108675.092:51): avc: denied { read } for comm="android.ui" name="name" dev="sysfs" ino=19453 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=0
[   23.375424] type=1400 audit(1676108675.096:52): avc: denied { read } for comm="android.ui" name="name" dev="sysfs" ino=9649 scontext=u:r:system_server:s0 tcontext=u:object_r:sysfs:s0 tclass=file permissive=0
[   24.433602] read descriptors
[   24.433617] read strings
[   24.433697] read descriptors
[   24.433704] read strings
[   24.527379] cectx ff80023c.aocec: clear all logical addr 0
[   24.528247] cectx ff80023c.aocec: clear all logical addr 0
[   25.487637] cectx ff80023c.aocec: clear all logical addr 0
[   25.516279] ceca: tx len: 1 data: 44
[   25.680634] cectx ff80023c.aocec: TX ERROR!
[   25.681486] cectx ff80023c.aocec: clear all logical addr 0
[   25.682172] cectx ff80023c.aocec: cec_ll_tx ret:1, RET_NACK
[   25.682757] cectx ff80023c.aocec: clear all logical addr 0
[   25.683254] cectx ff80023c.aocec: NACK repeat message:1
[   25.683644] cectx ff80023c.aocec: clear all logical addr 0
[   25.684143] cectx ff80023c.aocec: NACK repeat message:1
[   25.822512] meson6-dwmac ff3f0000.ethernet eth0: fail to init PTP.
[   25.823794] IPv6: ADDRCONF(NETDEV_UP): eth0: link is not ready
[   25.945061] binder: 3876:3876 ioctl 40046210 ffcbfd48 returned -22
[   26.028302] binder: 3892:3892 ioctl 40046210 ffcbfd48 returned -22
[   26.085794] binder: 3911:3911 ioctl 40046210 ffcbfd48 returned -22
[   26.297263] binder: 3876:3876 ioctl 40046210 ffcbe378 returned -22
[   26.322101] binder: 3932:3932 ioctl 40046210 ffcbfd48 returned -22
[   26.414396] binder: 3966:3966 ioctl 40046210 ffcbfd48 returned -22
[   26.666705] binder: 3985:3985 ioctl 40046210 ffcbfd48 returned -22
[   26.668250] binder: undelivered TRANSACTION_COMPLETE
[   26.668262] binder: undelivered transaction 10277, process died.
[   26.724961] binder: 4004:4004 ioctl 40046210 ffcbfd48 returned -22
[   26.776345] binder: 4011:4011 ioctl 40046210 ffcbfd48 returned -22
[   26.807477] binder: 3985:3985 ioctl 40046210 ffcbf230 returned -22
[   26.822365] cectx ff80023c.aocec: type 4, save phy_addr:0x0
[   26.963372] cectx ff80023c.aocec: type 4, save phy_addr:0x0
[   27.004220] binder: 4004:4065 ioctl 40046210 c134ba88 returned -22
[   27.037880] binder: 4004:4065 ioctl 40046210 c134b9b8 returned -22
[   27.102350] cectx ff80023c.aocec: type 4, save phy_addr:0x0
[   27.246343] cectx ff80023c.aocec: type 4, save phy_addr:0x0
[   27.420720] ceca: tx len: 5 data: 4f 84 ff ff 04
[   27.547246] cectx ff80023c.aocec: cec_ll_tx ret:0, RET_NONE
[   27.575789] ceca: tx len: 5 data: 4f 87 ec 01 e2
[   27.702346] cectx ff80023c.aocec: cec_ll_tx ret:0, RET_NONE
[   27.733004] ceca: tx len: 15 data: 40 47 54 56 20 47 53 49 20 6f 6e 20 41 52 4d
[   27.891807] binder: 3892:4087 ioctl 40046210 c0116610 returned -22
[   27.924896] binder: 3892:4087 ioctl 40046210 c0116440 returned -22
[   27.938433] type=1400 audit(1676108679.656:53): avc: denied { read } for comm="HwBinder:3451_1" name="u:object_r:vendor_bluetooth_prop:s0" dev="tmpfs" ino=10211 scontext=u:r:hal_bluetooth_default:s0 tcontext=u:object_r:vendor_bluetooth_prop:s0 tclass=file permissive=0
[   27.938554] type=1400 audit(1676108679.660:54): avc: denied { read } for comm="HwBinder:3451_1" name="u:object_r:vendor_bluetooth_prop:s0" dev="tmpfs" ino=10211 scontext=u:r:hal_bluetooth_default:s0 tcontext=u:object_r:vendor_bluetooth_prop:s0 tclass=file permissive=0
[   28.099197] binder: undelivered transaction 14270, process died.
[   28.101826] cectx ff80023c.aocec: cec_ll_tx ret:0, RET_NONE
[   28.136351] ceca: tx len: 2 data: 45 7d
[   28.211941] selinux: SELinux: Skipping restorecon on directory(/data/system_ce/0)
[   28.211956] selinux:
[   28.220056] selinux: SELinux: Skipping restorecon on directory(/data/vendor_ce/0)
[   28.220068] selinux:
[   28.231308] selinux: SELinux: Skipping restorecon on directory(/data/misc_ce/0)
[   28.231322] selinux:
[   28.240260] zram0: detected capacity change from 0 to 402653184
[   28.272578] mkswap: Swapspace size: 393212k, UUID=03dd9fb7-24e2-433f-9bd4-5c5f32114b53
[   28.273981] Adding 393212k swap on /dev/block/zram0.  Priority:-1 extents:1 across:393212k SS
[   28.275083] cectx ff80023c.aocec: TX ERROR!
[   28.275936] cectx ff80023c.aocec: clear all logical addr 0
[   28.279207] cectx ff80023c.aocec: cec_ll_tx ret:1, RET_NACK
[   28.296576] binder: 4139:4139 ioctl 40046210 ffcbfd48 returned -22
[   28.304802] selinux: SELinux: Could not get canonical path for /sys/kernel/debug/tracing/instances/wifi restorecon: No such file or directory.
[   28.304815] selinux:
[   28.312650] ceca: tx len: 2 data: 45 7d
[   28.354830] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 0 to 9600
[   28.354919] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 9600 to 9600
[   28.354945] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 9600 to 115200
[   28.363896] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 115200 to 2000000
[   28.451406] cectx ff80023c.aocec: TX ERROR!
[   28.452266] cectx ff80023c.aocec: clear all logical addr 0
[   28.456417] cectx ff80023c.aocec: cec_ll_tx ret:1, RET_NACK
[   28.483393] ceca: tx len: 2 data: 40 8f
[   28.508632] zram: Cannot change disksize for initialized device
[   28.540198] cectx ff80023c.aocec: cec_ll_tx ret:0, RET_NONE
[   28.550818] mkswap: Swapspace size: 393212k, UUID=38c3edf8-8424-421b-8214-ffe9651af370
[   28.551886] init: [libfs_mgr]swapon failed for /dev/block/zram0
[   28.566196] sdcardfs version 2.0
[   28.566205] sdcardfs: dev_name -> /data/media
[   28.566208] sdcardfs: options -> fsuid=1023,fsgid=1023,multiuser,derive_gid,default_normal,unshared_obb,mask=6,userid=0,gid=1015
[   28.566213] sdcardfs: mnt -> ffffffc07a0b0720
[   28.566281] sdcardfs: mounted on top of /data/media type ext4
[   28.570050] Remount options were mask=23,gid=9997 for vfsmnt ffffffc065bba3a0.
[   28.570065] sdcardfs : options - debug:1
[   28.570068] sdcardfs : options - gid:9997
[   28.570072] sdcardfs : options - mask:23
[   28.571031] Remount options were mask=7,gid=9997 for vfsmnt ffffffc065bbb6e0.
[   28.571042] sdcardfs : options - debug:1
[   28.571045] sdcardfs : options - gid:9997
[   28.571048] sdcardfs : options - mask:7
[   28.574864] Remount options were mask=7,gid=9997 for vfsmnt ffffffc065bbeaa0.
[   28.574876] sdcardfs : options - debug:1
[   28.574880] sdcardfs : options - gid:9997
[   28.574883] sdcardfs : options - mask:7
[   28.582142] selinux: SELinux: Skipping restorecon on directory(/data/misc_ce/0/apexdata/com.android.wifi)
[   28.620477] cectx ff80023c.aocec: cec a rx len 3:04 90 00
[   28.696218] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 2000000 to 115200
[   28.713567] binder: 4174:4174 ioctl 40046210 ffcbfd48 returned -22
[   28.729656] binder: 4175:4175 ioctl 40046210 ffcbfd48 returned -22
[   28.767807] binder: 4183:4183 ioctl 40046210 ffcbfd48 returned -22
[   28.802387] cectx ff80023c.aocec: type 4, save phy_addr:0x0
[   28.883140] binder: 4165:4165 ioctl 40046210 ff9e2ee8 returned -22
[   28.883300] binder: 4165:4165 ioctl 40046210 ff9e2f00 returned -22
[   28.884141] type=1400 audit(1676108680.604:55): avc: denied { read } for comm="screencontrol" name="u:object_r:default_prop:s0" dev="tmpfs" ino=10060 scontext=u:r:screen_control:s0 tcontext=u:object_r:default_prop:s0 tclass=file permissive=0
[   28.942373] cectx ff80023c.aocec: type 4, save phy_addr:0x0
[   28.956566] meson_uart ffd24000.serial: ttyS1 use xtal(24M) 24000000 change 115200 to 2000000
[   29.036024] binder: 4243:4243 ioctl 40046210 ffcbfd48 returned -22
[   29.079762] binder: 4247:4247 ioctl 40046210 ffcbfd48 returned -22
[   29.085002] binder: 4183:4227 ioctl 40046210 c1e7ba88 returned -22
[   29.129659] binder: 4183:4227 ioctl 40046210 c1e7b9b8 returned -22
[   29.294423] binder: 4299:4299 ioctl 40046210 ffcbfd48 returned -22
[   29.435545] binder: 4323:4323 ioctl 40046210 ffcbfd48 returned -22
[   29.479505] binder: 4324:4324 ioctl 40046210 ffcbfd48 returned -22
[   29.601126] binder: 4369:4369 ioctl 40046210 ffcbfd48 returned -22
[   29.680137] binder: 4391:4391 ioctl 40046210 ffcbfd48 returned -22
[   29.789764] binder: 4412:4412 ioctl 40046210 ffcbfd48 returned -22
[   29.990909] binder: 4429:4429 ioctl 40046210 ffcbfd48 returned -22
[   30.132893] binder: 4449:4449 ioctl 40046210 ffcbfd48 returned -22
[   30.257387] binder: 4472:4472 ioctl 40046210 ffcbfd48 returned -22
[   30.345678] binder: 4490:4490 ioctl 40046210 ffcbfd48 returned -22
[   30.524177] binder: 4510:4510 ioctl 40046210 ffcbfd48 returned -22
[   31.805747] binder: 4529:4529 ioctl 40046210 ffcbfd48 returned -22
[   62.482717] fb: mem_free_work, free memory: addr:800000
[ 1130.059701] binder: 4243:4619 ioctl 40046210 bff819d0 returned -22
[ 1130.258325] [TEE] \x0d
[ 1130.258330] [TEE] MM-module-name:Widevine TA,Version:16.4-r37-ge1e1d83(build:1838)\x0d
[ 1136.196288] resman: 2 appname:secmem, type=3
[ 1136.209592] resman: 3 appname:OMX-0, type=0
[ 1136.221514] resman: 4 appname:OMX-1, type=0
[ 1136.281590] resman: 5 appname:OMX-2, type=0
[ 1136.287863] resman: 6 appname:OMX-3, type=0
[ 1136.294598] resman: 7 appname:OMX-4, type=0
[ 1136.306725] resman: 8 appname:OMX-5, type=0
[ 1136.313049] resman: 9 appname:OMX-6, type=0
[ 1136.332990] resman: 10 appname:OMX-7, type=0
[ 1136.340272] resman: 11 appname:OMX-8, type=0
[ 1136.366003] resman: 12 appname:OMX-9, type=0
[ 1136.373266] resman: 13 appname:OMX-10, type=0
[ 1136.383573] resman: 14 appname:OMX-11, type=0
[ 1136.395706] resman: 15 appname:OMX-12, type=0
[ 1136.402340] [TEE] \x0d
[ 1136.402346] [TEE] MM-module-name:Secmem TA,Version:2.2.28-gdcb041d(build:1879)\x0d
[ 1136.909170] binder: 4243:4615 ioctl 40046210 c1c3b9b8 returned -22
[ 1137.514925] audit: audit_lost=1 audit_rate_limit=5 audit_backlog_limit=64
[ 1137.514932] audit: rate limit exceeded
[ 1137.515631] type=1400 audit(1676109789.236:56): avc: denied { ioctl } for comm=474C546872656164203531 path="/sys/kernel/tracing/trace_marker" dev="tracefs" ino=15 ioctlcmd=0x5451 scontext=u:r:untrusted_app:s0:c23,c256,c512,c768 tcontext=u:object_r:debugfs_trace_marker:s0 tclass=file permissive=0 app=com.apple.atve.androidtv.appletv
[ 1137.516381] type=1400 audit(1676109789.236:57): avc: denied { ioctl } for comm=474C546872656164203531 path="/apex/com.android.art/javalib/core-oj.jar" dev="dm-3" ino=2251 ioctlcmd=0x5451 scontext=u:r:untrusted_app:s0:c23,c256,c512,c768 tcontext=u:object_r:system_file:s0 tclass=file permissive=0 app=com.apple.atve.androidtv.appletv
[ 1137.517091] type=1400 audit(1676109789.236:58): avc: denied { ioctl } for comm=474C546872656164203531 path="/apex/com.android.art/javalib/core-libart.jar" dev="dm-3" ino=2250 ioctlcmd=0x5451 scontext=u:r:untrusted_app:s0:c23,c256,c512,c768 tcontext=u:object_r:system_file:s0 tclass=file permissive=0 app=com.apple.atve.androidtv.appletv
[ 1137.517819] type=1400 audit(1676109789.236:59): avc: denied { ioctl } for comm=474C546872656164203531 path="/apex/com.android.art/javalib/okhttp.jar" dev="dm-3" ino=2252 ioctlcmd=0x5451 scontext=u:r:untrusted_app:s0:c23,c256,c512,c768 tcontext=u:object_r:system_file:s0 tclass=file permissive=0 app=com.apple.atve.androidtv.appletv
[ 1137.518588] type=1400 audit(1676109789.236:60): avc: denied { ioctl } for comm=474C546872656164203531 path="/apex/com.android.art/javalib/bouncycastle.jar" dev="dm-3" ino=2249 ioctlcmd=0x5451 scontext=u:r:untrusted_app:s0:c23,c256,c512,c768 tcontext=u:object_r:system_file:s0 tclass=file permissive=0 app=com.apple.atve.androidtv.appletv
[ 1137.519355] type=1400 audit(1676109789.236:61): avc: denied { ioctl } for comm=474C546872656164203531 path="/apex/com.android.art/javalib/apache-xml.jar" dev="dm-3" ino=2232 ioctlcmd=0x5451 scontext=u:r:untrusted_app:s0:c23,c256,c512,c768 tcontext=u:object_r:system_file:s0 tclass=file permissive=0 app=com.apple.atve.androidtv.appletv
[ 1137.520069] type=1400 audit(1676109789.236:62): avc: denied { ioctl } for comm=474C546872656164203531 path="/system/framework/framework.jar" dev="dm-3" ino=1222 ioctlcmd=0x5451 scontext=u:r:untrusted_app:s0:c23,c256,c512,c768 tcontext=u:object_r:system_file:s0 tclass=file permissive=0 app=com.apple.atve.androidtv.appletv
[ 1137.520787] type=1400 audit(1676109789.236:63): avc: denied { ioctl } for comm=474C546872656164203531 path="/system/framework/framework-graphics.jar" dev="dm-3" ino=1220 ioctlcmd=0x5451 scontext=u:r:untrusted_app:s0:c23,c256,c512,c768 tcontext=u:object_r:system_file:s0 tclass=file permissive=0 app=com.apple.atve.androidtv.appletv
[ 1137.521093] logd: start watching /data/system/packages.list ...
[ 1137.521919] logd: ReadPackageList, total packages: 45
[ 1138.191717] mali ffe40000.bifrost: Grow on pagefault while reading
[ 1138.198130] mali ffe40000.bifrost: Grow on pagefault while reading
[ 1151.412837] mali ffe40000.bifrost: AS_ACTIVE bit stuck, might be caused by slow/unstable GPU clock or possible faulty FPGA connector
[ 1164.530933] mali ffe40000.bifrost: AS_ACTIVE bit stuck, might be caused by slow/unstable GPU clock or possible faulty FPGA connector
[ 1166.142306] RT throttling on cpu:1 rt_time:999ms, curr:RenderEngine/3564 prio:97 sum_runtime:6164ms cnt:1
[ 1167.142305] RT throttling on cpu:1 rt_time:988ms, curr:RenderEngine/3564 prio:97 sum_runtime:7164ms cnt:2
[ 1168.142298] RT throttling on cpu:1 rt_time:996ms, curr:RenderEngine/3564 prio:97 sum_runtime:8160ms cnt:3
[ 1169.142301] RT throttling on cpu:1 rt_time:990ms, curr:RenderEngine/3564 prio:97 sum_runtime:9164ms cnt:4
[ 1170.142297] RT throttling on cpu:1 rt_time:996ms, curr:RenderEngine/3564 prio:97 sum_runtime:10160ms cnt:5
[ 1171.142298] RT throttling on cpu:1 rt_time:1000ms, curr:RenderEngine/3564 prio:97 sum_runtime:11160ms cnt:6
[ 1172.142304] RT throttling on cpu:1 rt_time:1003ms, curr:RenderEngine/3564 prio:97 sum_runtime:12164ms cnt:7
[ 1173.142302] RT throttling on cpu:1 rt_time:1002ms, curr:RenderEngine/3564 prio:97 sum_runtime:13163ms cnt:8
[ 1174.142301] RT throttling on cpu:1 rt_time:1001ms, curr:RenderEngine/3564 prio:97 sum_runtime:14163ms cnt:9
[ 1175.142303] RT throttling on cpu:1 rt_time:1001ms, curr:RenderEngine/3564 prio:97 sum_runtime:15163ms cnt:10
[ 1176.142300] RT throttling on cpu:1 rt_time:1001ms, curr:RenderEngine/3564 prio:97 sum_runtime:16163ms cnt:11
[ 1177.142299] RT throttling on cpu:1 rt_time:995ms, curr:RenderEngine/3564 prio:97 sum_runtime:17159ms cnt:12
[ 1178.142300] RT throttling on cpu:1 rt_time:1003ms, curr:RenderEngine/3564 prio:97 sum_runtime:18163ms cnt:13
[ 1178.323489] mali ffe40000.bifrost: AS_ACTIVE bit stuck, might be caused by slow/unstable GPU clock or possible faulty FPGA connector
[ 1179.142300] RT throttling on cpu:1 rt_time:1003ms, curr:RenderEngine/3564 prio:97 sum_runtime:19163ms cnt:14
[ 1180.142297] RT throttling on cpu:1 rt_time:999ms, curr:RenderEngine/3564 prio:97 sum_runtime:20159ms cnt:15
[ 1181.142300] RT throttling on cpu:1 rt_time:1001ms, curr:RenderEngine/3564 prio:97 sum_runtime:21163ms cnt:16
[ 1182.142304] RT throttling on cpu:1 rt_time:1001ms, curr:RenderEngine/3564 prio:97 sum_runtime:22163ms cnt:17
[ 1183.142298] RT throttling on cpu:1 rt_time:997ms, curr:RenderEngine/3564 prio:97 sum_runtime:23159ms cnt:18
[ 1184.142306] RT throttling on cpu:1 rt_time:1003ms, curr:RenderEngine/3564 prio:97 sum_runtime:24163ms cnt:19
[ 1185.142303] RT throttling on cpu:1 rt_time:1002ms, curr:RenderEngine/3564 prio:97 sum_runtime:25162ms cnt:20
[ 1186.142297] RT throttling on cpu:1 rt_time:998ms, curr:RenderEngine/3564 prio:97 sum_runtime:26158ms cnt:21
[ 1187.142305] RT throttling on cpu:1 rt_time:1003ms, curr:RenderEngine/3564 prio:97 sum_runtime:27162ms cnt:22
[ 1188.142299] RT throttling on cpu:1 rt_time:1003ms, curr:RenderEngine/3564 prio:97 sum_runtime:28162ms cnt:23
[ 1189.142297] RT throttling on cpu:1 rt_time:997ms, curr:RenderEngine/3564 prio:97 sum_runtime:29158ms cnt:24
[ 1190.142301] RT throttling on cpu:1 rt_time:1003ms, curr:RenderEngine/3564 prio:97 sum_runtime:30162ms cnt:25
[ 1191.142302] RT throttling on cpu:1 rt_time:1004ms, curr:RenderEngine/3564 prio:97 sum_runtime:31162ms cnt:26
[ 1192.113360] mali ffe40000.bifrost: AS_ACTIVE bit stuck, might be caused by slow/unstable GPU clock or possible faulty FPGA connector
[ 1192.113368] mali ffe40000.bifrost: Flush for GPU page table update did not complete. Issuing GPU soft-reset to recover
[ 1192.113377] mali ffe40000.bifrost: Preparing to soft-reset GPU: Waiting (upto 3000 ms) for all jobs to complete soft-stop
[ 1192.113701] mali ffe40000.bifrost: Resetting GPU (allowing up to 500 ms)
[ 1192.113711] mali ffe40000.bifrost: Register state:
[ 1192.113718] mali ffe40000.bifrost:   GPU_IRQ_RAWSTAT=0x00000200 GPU_STATUS=0x00000001
[ 1192.113724] mali ffe40000.bifrost:   JOB_IRQ_RAWSTAT=0x00000000 JOB_IRQ_JS_STATE=0x00000000
[ 1192.113730] mali ffe40000.bifrost:   JS0_STATUS=0x00000000      JS0_HEAD_LO=0xea57ff80
[ 1192.113736] mali ffe40000.bifrost:   JS1_STATUS=0x00000000      JS1_HEAD_LO=0xea57f840
[ 1192.113742] mali ffe40000.bifrost:   JS2_STATUS=0x00000000      JS2_HEAD_LO=0x00000000
[ 1192.113747] mali ffe40000.bifrost:   MMU_IRQ_RAWSTAT=0x00000000 GPU_FAULTSTATUS=0x00000000
[ 1192.113753] mali ffe40000.bifrost:   GPU_IRQ_MASK=0x00000000    JOB_IRQ_MASK=0x00000000     MMU_IRQ_MASK=0x00000000
[ 1192.113758] mali ffe40000.bifrost:   PWR_OVERRIDE0=0x00000000   PWR_OVERRIDE1=0x00200fff
[ 1192.113764] mali ffe40000.bifrost:   SHADER_CONFIG=0x00000000   L2_MMU_CONFIG=0x00000000
[ 1192.113769] mali ffe40000.bifrost:   TILER_CONFIG=0x00000000    JM_CONFIG=0x00000000
[ 1192.142304] RT throttling on cpu:1 rt_time:975ms, curr:swapper/1/0 prio:120 sum_runtime:0ms cnt:27
[ 1192.613831] mali ffe40000.bifrost: Failed to soft-reset GPU (timed out after 500 ms), now attempting a hard reset
[ 1192.619604] mali ffe40000.bifrost: Reset complete
[ 1192.734706] binder: undelivered transaction 29085, process died.
[ 1192.734748] binder: undelivered transaction 29230, process died.
[ 1192.734834] binder: undelivered transaction 29037, process died.
[ 1192.734841] binder: undelivered transaction 29038, process died.
[ 1192.737813] binder: undelivered transaction 29036, process died.
[ 1192.737822] binder: undelivered transaction 29229, process died.
[ 1290.520104] binder: 4892:4892 ioctl 40046210 ffcbfd48 returned -22
[ 1300.929903] binder: 4004:4912 transaction failed 29201/-1, size 0-0 line 3134
[ 1300.930055] type=1400 audit(1676109952.648:67): avc: denied { call } for comm=4173796E635461736B202331 scontext=u:r:system_app:s0 tcontext=u:r:hal_light_default:s0 tclass=binder permissive=0
[ 1301.167857] binder: 4004:4912 transaction failed 29201/-1, size 0-0 line 3134
[ 1301.168166] type=1400 audit(1676109952.888:68): avc: denied { call } for comm=4173796E635461736B202331 scontext=u:r:system_app:s0 tcontext=u:r:storaged:s0 tclass=binder permissive=0
[ 1301.168561] binder: 4004:4912 transaction failed 29201/-1, size 0-0 line 3134
[ 1301.168654] type=1400 audit(1676109952.888:69): avc: denied { call } for comm=4173796E635461736B202331 scontext=u:r:system_app:s0 tcontext=u:r:storaged:s0 tclass=binder permissive=0
[ 1331.411203] meson6-dwmac ff3f0000.ethernet eth0: Link is Up - 1Gbps/Full - flow control rx/tx
[ 1331.411445] IPv6: ADDRCONF(NETDEV_CHANGE): eth0: link becomes ready
[ 1335.506678] meson6-dwmac ff3f0000.ethernet eth0: Link is Down
[ 1341.654653] meson6-dwmac ff3f0000.ethernet eth0: Link is Up - 100Mbps/Full - flow control rx/tx
[ 1388.555831] logd: logdr: UID=2000 GID=2000 PID=5007 b tail=0 logMask=99 pid=0 start=0ns deadline=0ns
[ 1431.647220] android_work: did not send uevent (0 0           (null))
[ 1431.647404] read descriptors
[ 1431.647456] read strings
dmesg.txt (103,966 bytes)

(SW) Jason Ling

2023-04-26 11:35

developer   ~0013005

Hi YK,

>>You need to apply all the patches and rebuild.
>>The last patch is the one that resolves the zoom in/out issue
>>and you can use the FW version 15.537.42

>>Please use "dev , v534" to set up the server when you google test like before.
In 15.537.40 (self build), After we login SKB account, we can see the HomeUI directly, (not black screen)
Do we still need to change server configuration to dev v534 for SmokeTest.

Thanks,
Jason

(ALTech) Younkwang Jung

2023-04-26 14:10

developer   ~0013007

Hi Jason

Yes , It is the same as before.
That is , you still need to change server configuration to dev,v534 for SmokeTest.

Thank you
YK.Jung

(ALTech) Younkwang Jung

2023-04-27 08:57

developer   ~0013018

Hi Jason

How is the progress of this implementation guide going?
https://mantis.cnsbg.foxconn.com/vaas/view.php?id=1582#c12985

If it's hard to discuss in this mantis , should I create a new mantis for this ?

Thank you
YK.Jung

(ALTech) Younkwang Jung

2024-05-09 13:36

developer   ~0015736

Last edited: 2024-05-09 13:36

View 2 revisions

Hi Jason

For HWC_ENABLE_REAL_MODE, this ticket can be closed

Thank you for your support
YK.Jung

Issue History

Date Modified Username Field Change
2022-12-21 18:48 (SW) Jason Ling New Issue
2022-12-21 18:48 (SW) Jason Ling Status new => assigned
2022-12-21 18:48 (SW) Jason Ling Assigned To => (ALTech) Younkwang Jung
2022-12-21 18:48 (SW) Jason Ling File Added: ModeSwitchingTest-Pass.jpg
2022-12-21 18:48 (SW) Jason Ling File Added: ModeSwitchingTest-Fail.jpg
2022-12-21 18:48 (SW) Jason Ling File Added: patch.jpg
2022-12-21 18:48 (SW) Jason Ling Issue Monitored: (SW) Kerwin Chen
2022-12-22 08:19 (ALTech) Younkwang Jung Issue Monitored: (ALTech) SY Yoon
2022-12-22 08:19 (ALTech) Younkwang Jung Issue Monitored: (ALTech) JunGyu Kim
2022-12-22 08:19 (ALTech) Younkwang Jung Issue Monitored: (ALTech) Younkwang Jung
2022-12-22 08:21 (ALTech) Younkwang Jung Note Added: 0011544
2023-01-05 20:18 (SW) Jason Ling Category SW Issue => xTS certification
2023-01-06 09:28 (SW) Jason Ling Note Added: 0011682
2023-01-17 13:40 (ALTech) Younkwang Jung Note Added: 0011810
2023-01-17 13:40 (ALTech) Younkwang Jung File Added: waiver_request.PNG
2023-01-17 15:20 (SW) Jason Ling Note Added: 0011816
2023-01-17 15:25 (SW) Jason Ling Issue Monitored: (SW) Jacky Chiang
2023-01-30 16:56 (ALTech) JunGyu Kim Note Added: 0011885
2023-01-30 16:56 (ALTech) JunGyu Kim File Added: c7be0634.diff.zip
2023-01-30 16:56 (ALTech) JunGyu Kim File Added: config.xml
2023-01-30 16:56 (ALTech) JunGyu Kim File Added: planck.mk
2023-01-30 16:56 (ALTech) JunGyu Kim File Added: 6cb1d023.diff.zip
2023-01-31 15:53 (ALTech) JunGyu Kim Note Added: 0011915
2023-01-31 16:19 (SW) Jason Ling Note Added: 0011917
2023-02-01 09:58 (ALTech) JunGyu Kim Note Added: 0011929
2023-02-01 10:35 (SW) Jason Ling Note Added: 0011932
2023-02-01 10:35 (SW) Jason Ling Note Edited: 0011932
2023-02-01 12:08 (ALTech) JunGyu Kim Note Added: 0011940
2023-02-01 16:37 (SW) Jason Ling Note Added: 0011961
2023-02-01 16:37 (SW) Jason Ling File Added: TvtsHdmiHostTestCases.zip
2023-02-01 16:39 (SW) Jason Ling Note Edited: 0011961
2023-02-01 16:45 (SW) Jason Ling Note Edited: 0011961
2023-02-07 11:57 (ALTech) Younkwang Jung Note Added: 0012040
2023-02-07 15:48 (SW) Jason Ling Note Added: 0012043
2023-02-07 15:48 (SW) Jason Ling File Added: TvtsHdmiHostTestCases-report.zip
2023-02-07 15:48 (SW) Jason Ling File Added: TvtsHdmiHostTestCases-log.zip
2023-02-07 16:21 (SW) Jason Ling Issue Monitored: (SW) Sam Yang
2023-02-09 16:52 (ALTech) Younkwang Jung Note Added: 0012098
2023-02-09 16:52 (ALTech) Younkwang Jung File Added: How to set 1080i and its side effect.docx
2023-02-09 17:13 (SW) Jason Ling Note Added: 0012099
2023-02-10 09:40 (ALTech) Younkwang Jung Note Added: 0012118
2023-02-13 10:36 (ALTech) Younkwang Jung Note Added: 0012141
2023-02-13 10:36 (ALTech) Younkwang Jung File Added: Android S unsupport interlace mode.docx
2023-02-15 10:31 (SW) Jason Ling Note Added: 0012175
2023-02-22 10:09 (SW) Jason Ling Note Added: 0012302
2023-02-22 11:12 (SW) Jason Ling Note Added: 0012305
2023-02-22 11:12 (SW) Jason Ling Note Edited: 0012305
2023-02-23 10:11 (ALTech) Younkwang Jung Note Added: 0012329
2023-04-10 09:30 (SW) Jason Ling Note Added: 0012768
2023-04-10 09:30 (SW) Jason Ling File Added: How to set the interlaced mode.pdf
2023-04-10 10:56 (ALTech) Younkwang Jung Note Added: 0012770
2023-04-11 08:37 (ALTech) Younkwang Jung Note Added: 0012783
2023-04-13 12:01 (ALTech) Younkwang Jung Note Added: 0012837
2023-04-13 12:01 (ALTech) Younkwang Jung File Added: Interlace Mode Setting on Android S.docx
2023-04-13 12:01 (ALTech) Younkwang Jung File Added: Patches_for_SKB_Interlace_Mode.7z
2023-04-13 15:56 (SW) Jason Ling Note Added: 0012848
2023-04-13 17:16 (SW) Jason Ling Note Added: 0012849
2023-04-13 18:58 (SW) Jason Ling Note Added: 0012852
2023-04-13 18:58 (SW) Jason Ling File Added: testMatchContentFramerate_Always.jpg
2023-04-13 18:58 (SW) Jason Ling File Added: testExactFrameRateMatch_NonSeamless.jpg
2023-04-13 18:58 (SW) Jason Ling File Added: MatchContentFrameRateTest-log.zip
2023-04-13 18:58 (SW) Jason Ling File Added: MatchContentFrameRateTest-result.zip
2023-04-13 18:58 (SW) Jason Ling File Added: SetFrameRateTest-log.zip
2023-04-13 18:58 (SW) Jason Ling File Added: SetFrameRateTest-result.zip
2023-04-13 18:59 (SW) Jason Ling Note Edited: 0012852
2023-04-14 07:30 (ALTech) Younkwang Jung Issue Monitored: (ALTech) Wooshin Kang
2023-04-14 07:32 (ALTech) Younkwang Jung Note Added: 0012854
2023-04-14 11:15 (ALTech) Younkwang Jung Note Added: 0012861
2023-04-17 09:22 (ALTech) Younkwang Jung Note Added: 0012874
2023-04-17 10:09 (SW) Jason Ling Note Added: 0012877
2023-04-17 10:28 (SW) Jason Ling Note Edited: 0012877
2023-04-17 11:12 (ALTech) Younkwang Jung Note Added: 0012883
2023-04-17 11:44 (ALTech) Younkwang Jung Note Edited: 0012861 View Revisions
2023-04-17 12:26 (SW) Jason Ling Note Added: 0012884
2023-04-20 13:11 (ALTech) Younkwang Jung Note Added: 0012929
2023-04-20 13:11 (ALTech) Younkwang Jung File Added: BID-AT200_15.537.3401_CTSonGSI_Result.zip
2023-04-20 14:03 (SW) Jason Ling Note Added: 0012931
2023-04-20 16:03 (SW) Jason Ling Note Added: 0012934
2023-04-21 12:21 (ALTech) Younkwang Jung Note Added: 0012943
2023-04-21 15:52 (SW) Jason Ling Note Added: 0012953
2023-04-25 08:31 (ALTech) Younkwang Jung Note Added: 0012985
2023-04-25 08:31 (ALTech) Younkwang Jung File Added: image.png
2023-04-25 17:08 (SW) Jason Ling Note Added: 0012996
2023-04-25 17:08 (SW) Jason Ling File Added: zoomout.jpg
2023-04-25 17:08 (SW) Jason Ling File Added: zoomin.jpg
2023-04-25 17:20 (SW) Jason Ling Note Added: 0012997
2023-04-25 17:20 (SW) Jason Ling File Added: AMANDROIDS-97.png
2023-04-25 18:07 (ALTech) Younkwang Jung Note Added: 0012998
2023-04-26 11:32 (SW) Jason Ling Note Added: 0013004
2023-04-26 11:32 (SW) Jason Ling File Added: dmesg.txt
2023-04-26 11:32 (SW) Jason Ling File Added: Step3-ChangeToSonyTvWithoutReboot.jpg
2023-04-26 11:32 (SW) Jason Ling File Added: Step4-ChangeBackToSharpTV.jpg
2023-04-26 11:32 (SW) Jason Ling File Added: Step1-BootWithSharpTV.jpg
2023-04-26 11:35 (SW) Jason Ling Note Added: 0013005
2023-04-26 11:35 (SW) Jason Ling Note Edited: 0013004
2023-04-26 14:10 (ALTech) Younkwang Jung Note Added: 0013007
2023-04-27 08:57 (ALTech) Younkwang Jung Note Added: 0013018
2024-05-09 13:36 (ALTech) Younkwang Jung Note Added: 0015736
2024-05-09 13:36 (ALTech) Younkwang Jung Note Edited: 0015736 View Revisions
2024-05-09 13:36 (ALTech) Younkwang Jung Assigned To (ALTech) Younkwang Jung => (SW) Jason Ling
2024-05-09 13:51 (SW) Kerwin Chen Assigned To (SW) Jason Ling => (SW) Kerwin Chen
2024-05-09 13:51 (SW) Kerwin Chen Status assigned => closed
2024-05-09 13:51 (SW) Kerwin Chen Resolution open => fixed
